Drive Mode Selector: Wiring Diagram

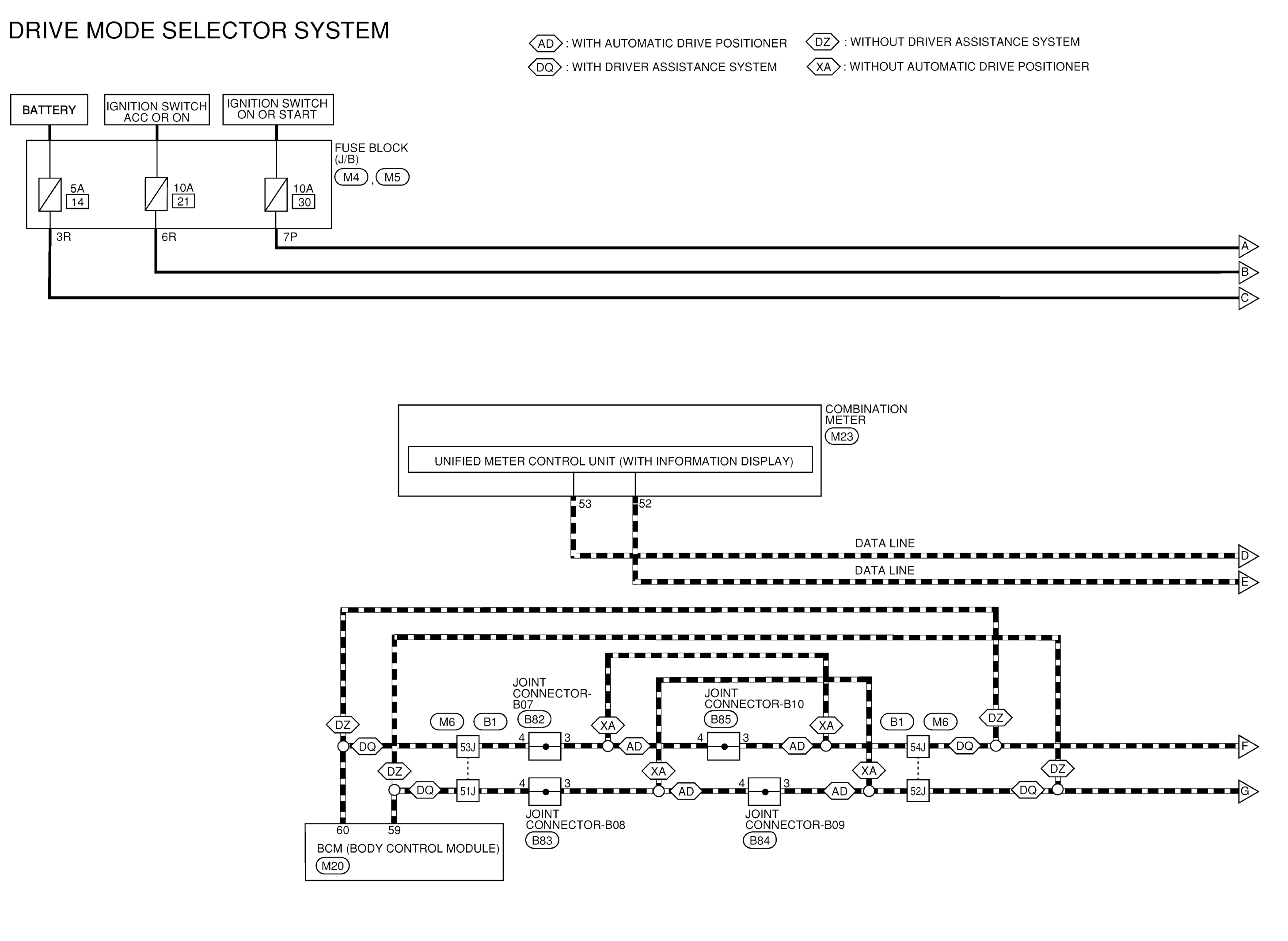

GNSAAOWA0204GB-204

Courtesy of NISSAN NORTH AMERICA, INC.

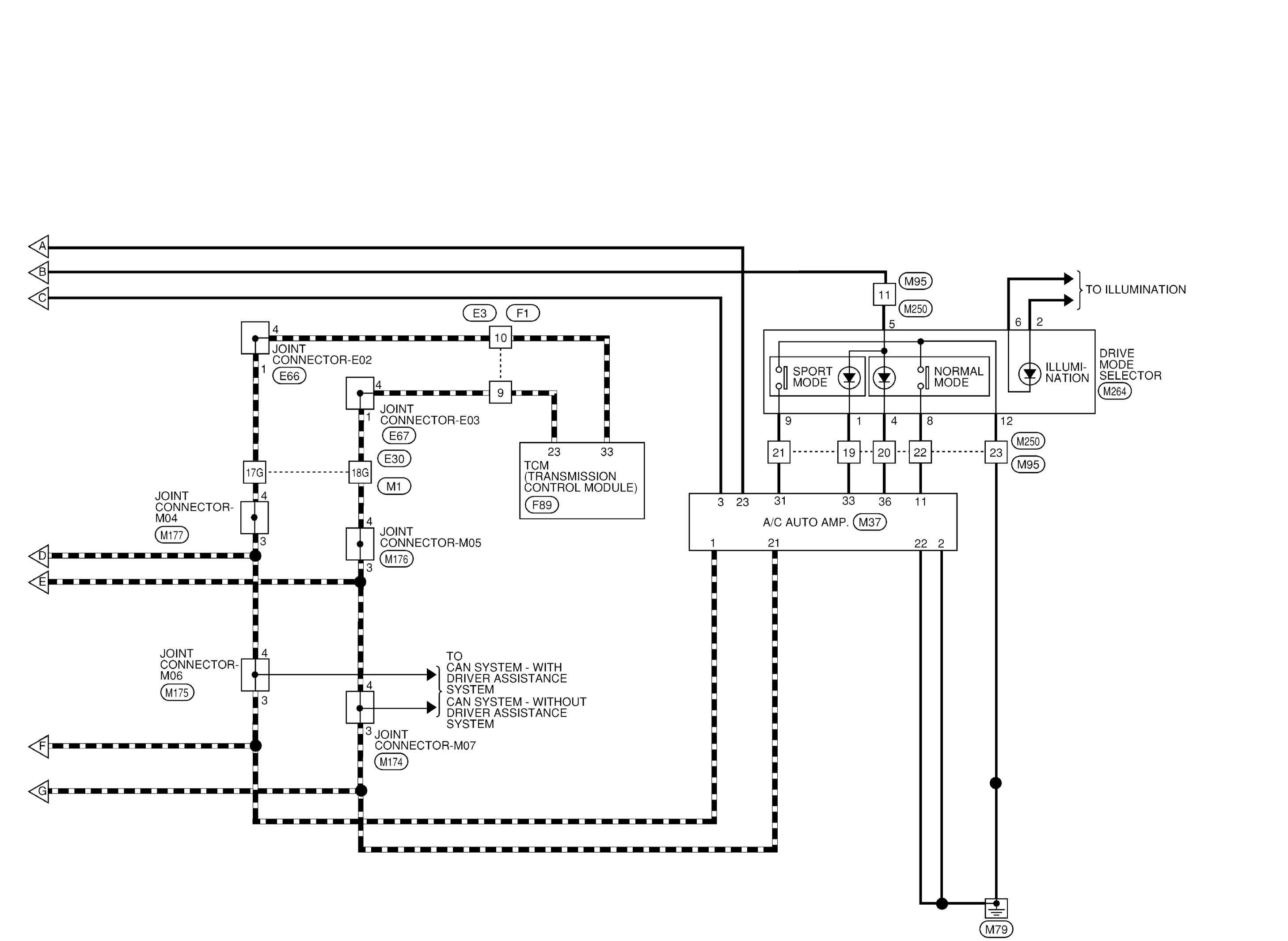

GNSAAOWA0205GB-205

Courtesy of NISSAN NORTH AMERICA, INC.

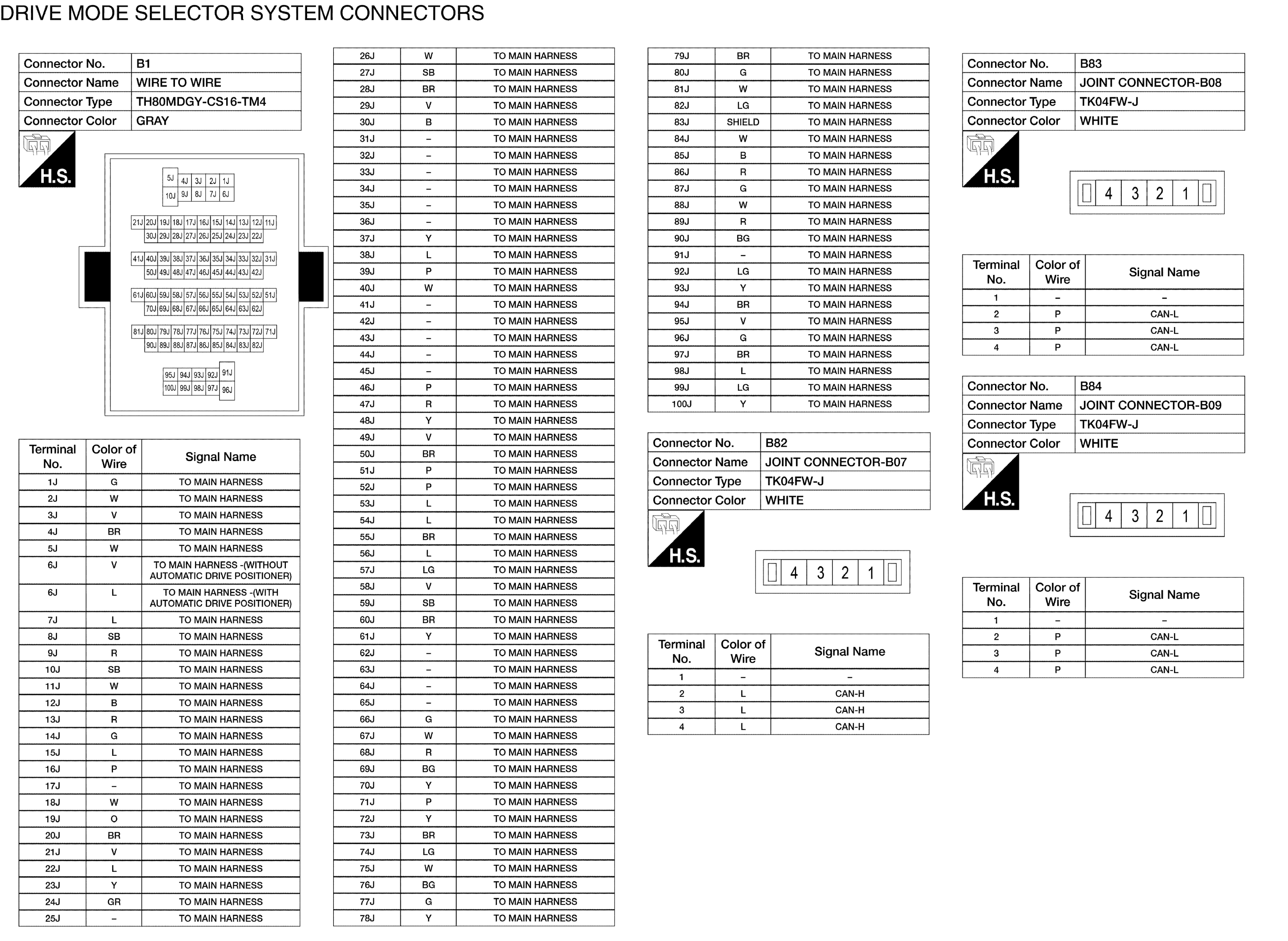

GNSAAOIA0679GB-679

Courtesy of NISSAN NORTH AMERICA, INC.

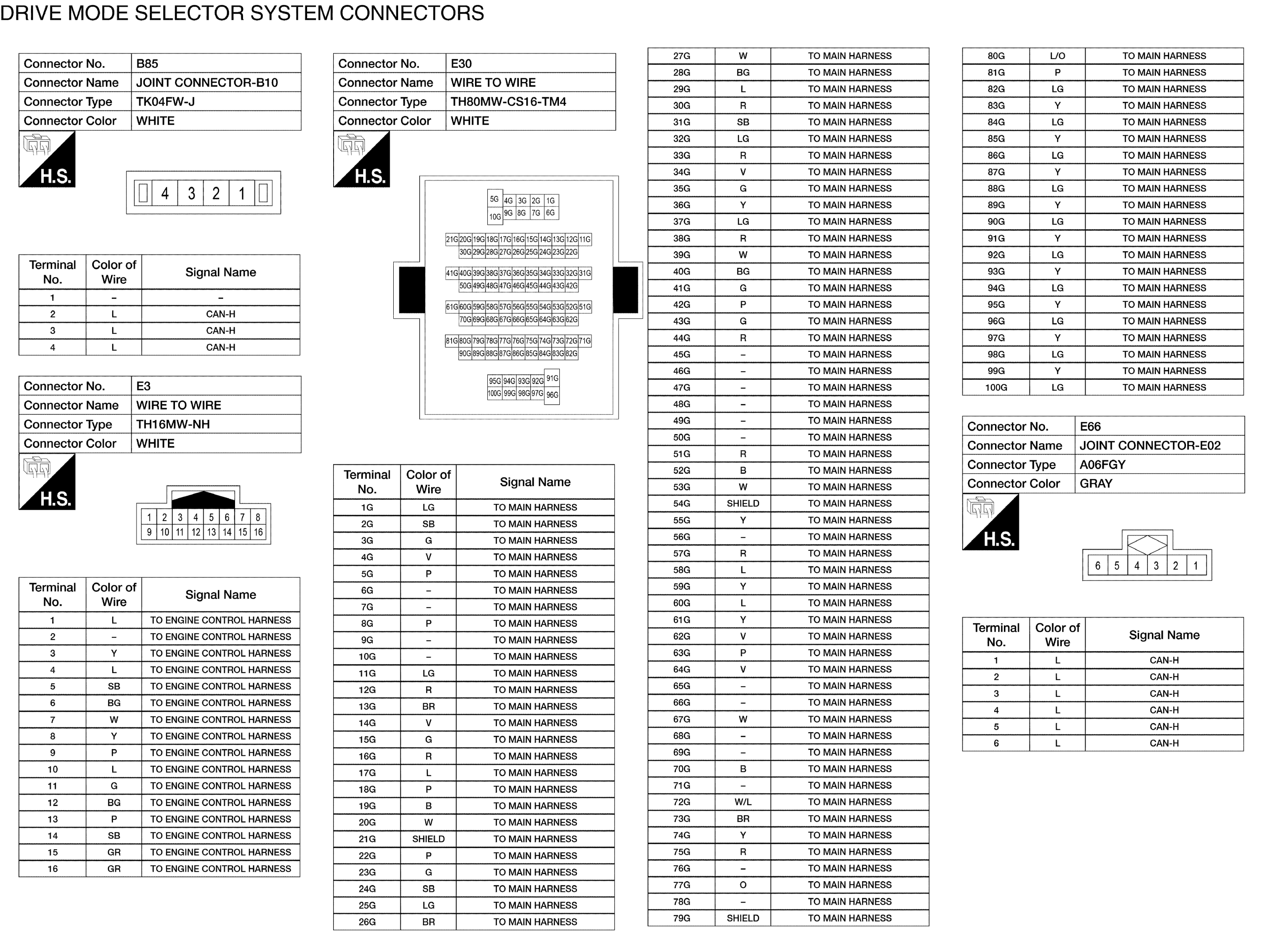

GNSAAOIA0680GB-680

Courtesy of NISSAN NORTH AMERICA, INC.

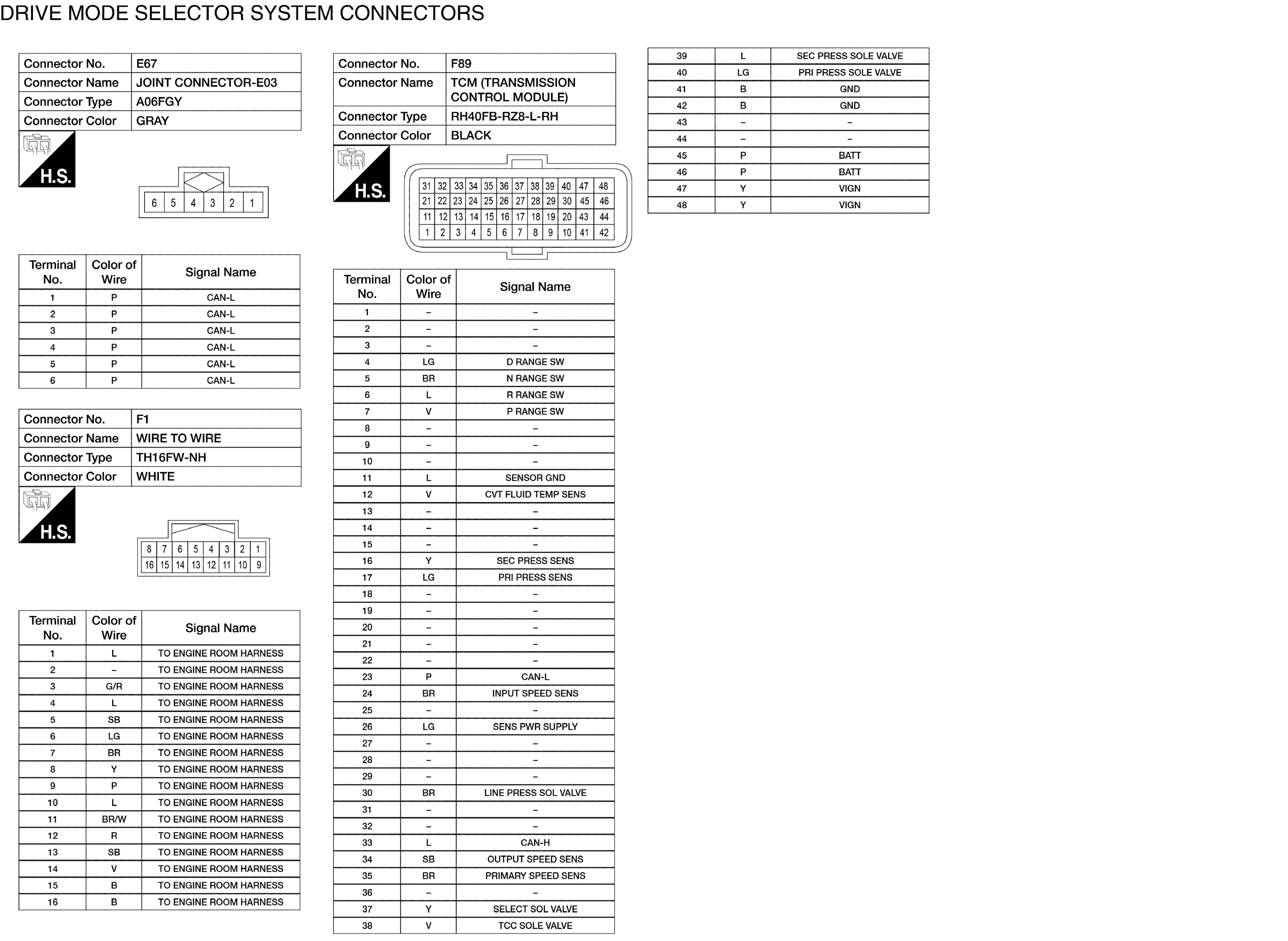

GNSAAOIA0681GB-681

Courtesy of NISSAN NORTH AMERICA, INC.

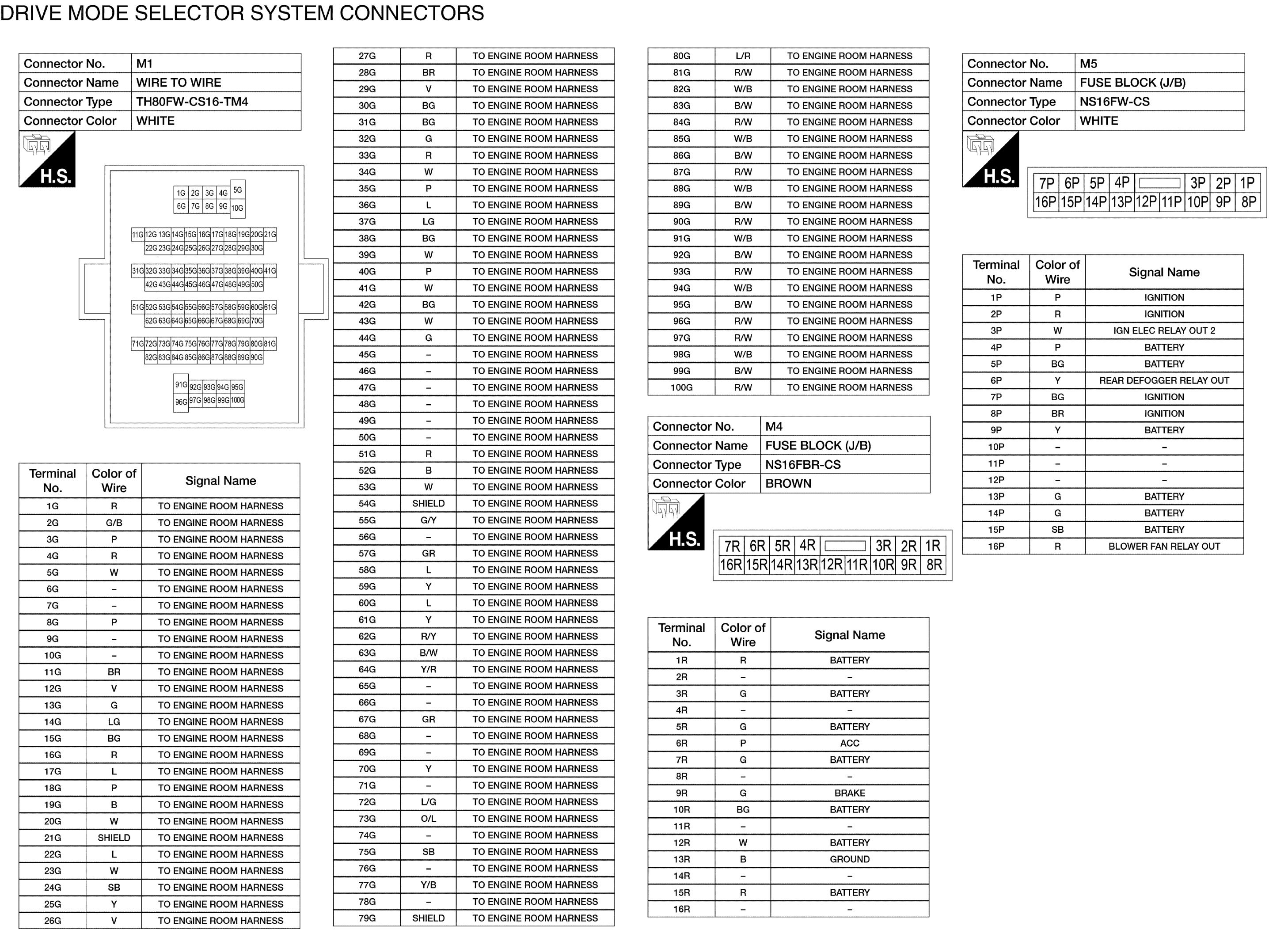

GNSAAOIA0682GB-682

Courtesy of NISSAN NORTH AMERICA, INC.

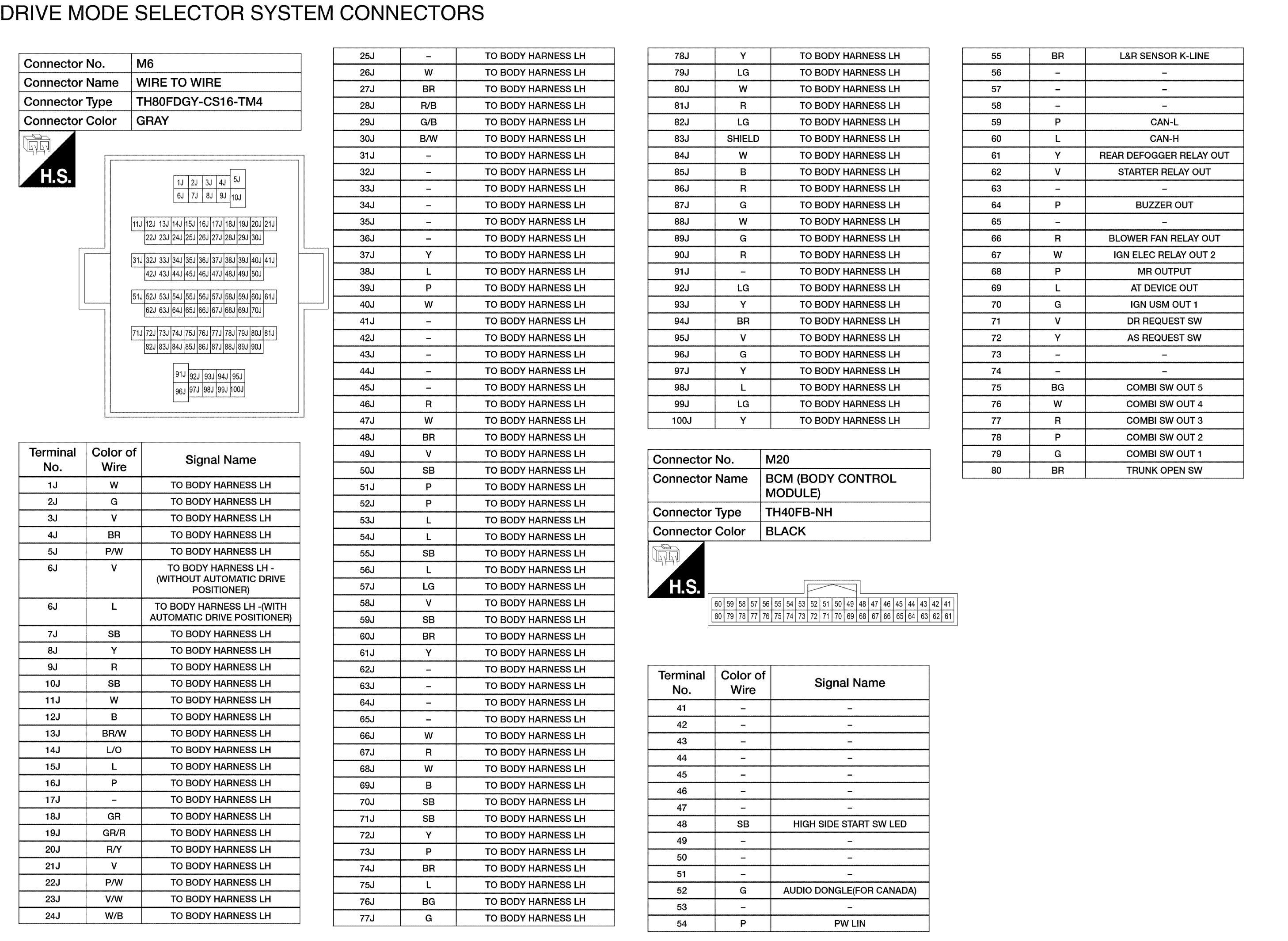

GNSAAOIA0683GB-683

Courtesy of NISSAN NORTH AMERICA, INC.

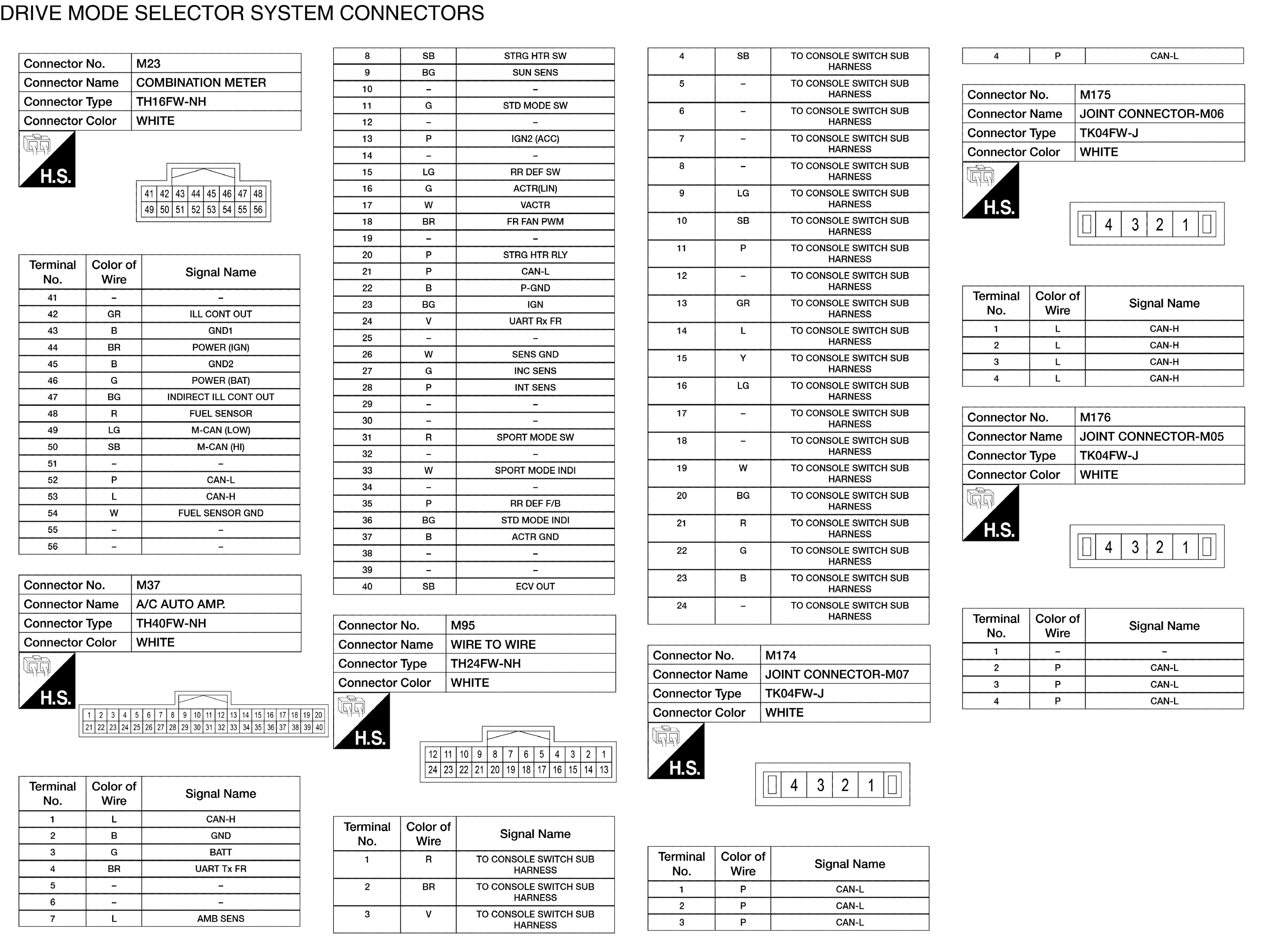

GNSAAOIA0684GB-684

Courtesy of NISSAN NORTH AMERICA, INC.

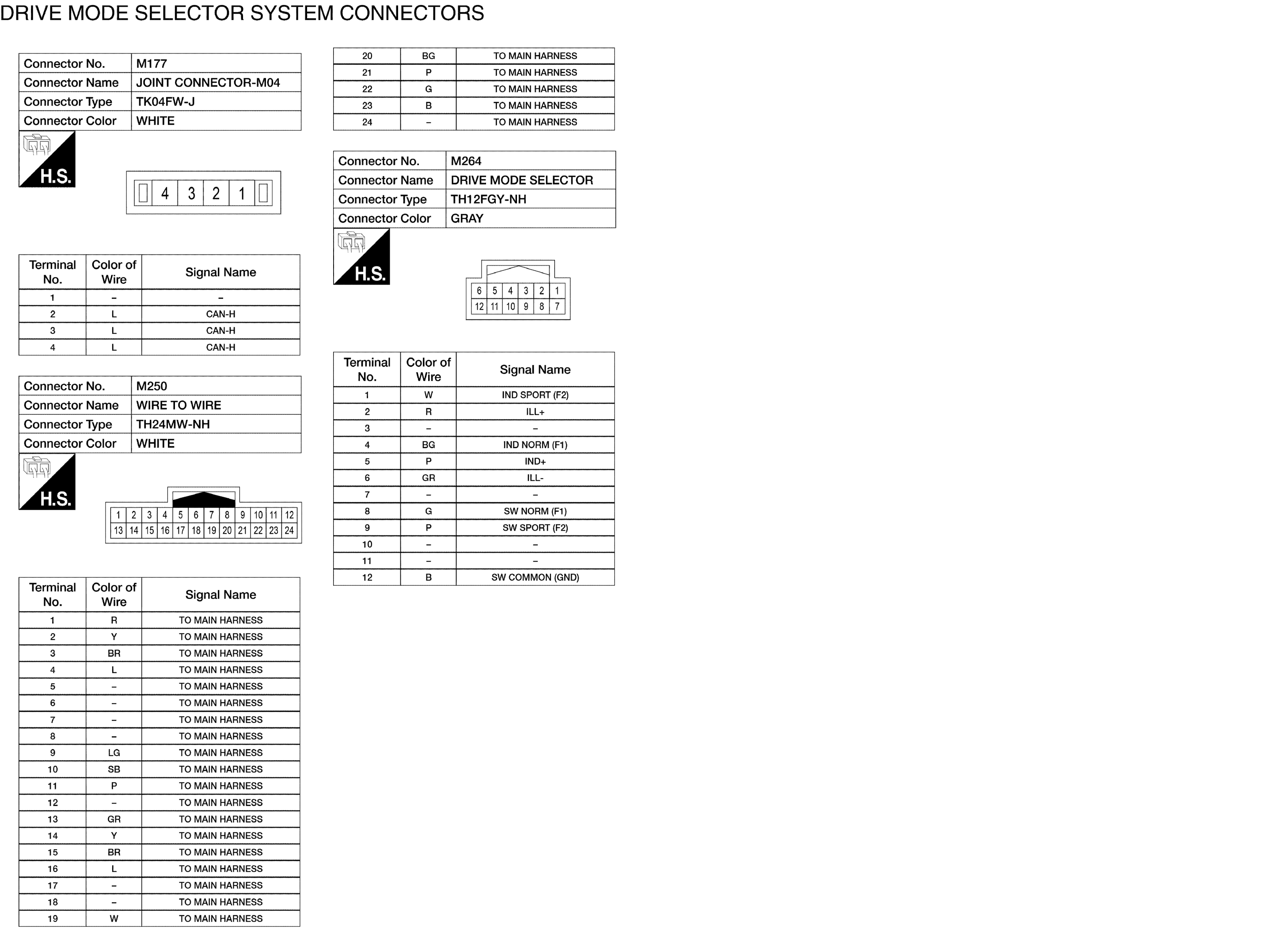

GNSAAOIA0685GB-685

Courtesy of NISSAN NORTH AMERICA, INC.
