Exploded View

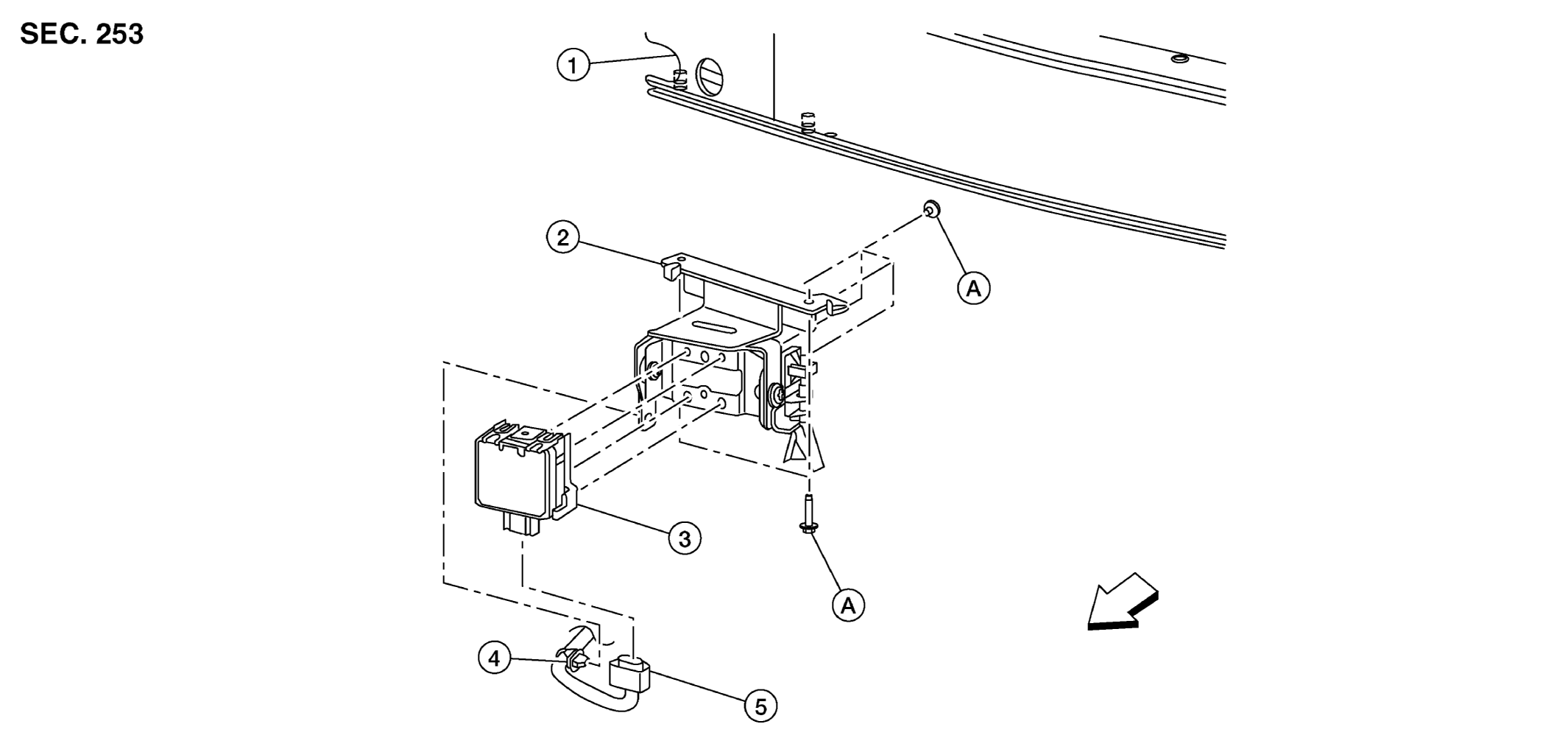

GNSAWOIA0127ZZ-127Courtesy of NISSAN NORTH AMERICA, INC.
1. Front bumper reinforcement 2. ICC sensor bracket 3. ICC sensor
4. Clip 5. ICC sensor harness connector A. Refer to INSTALLATION
ARROW Front
