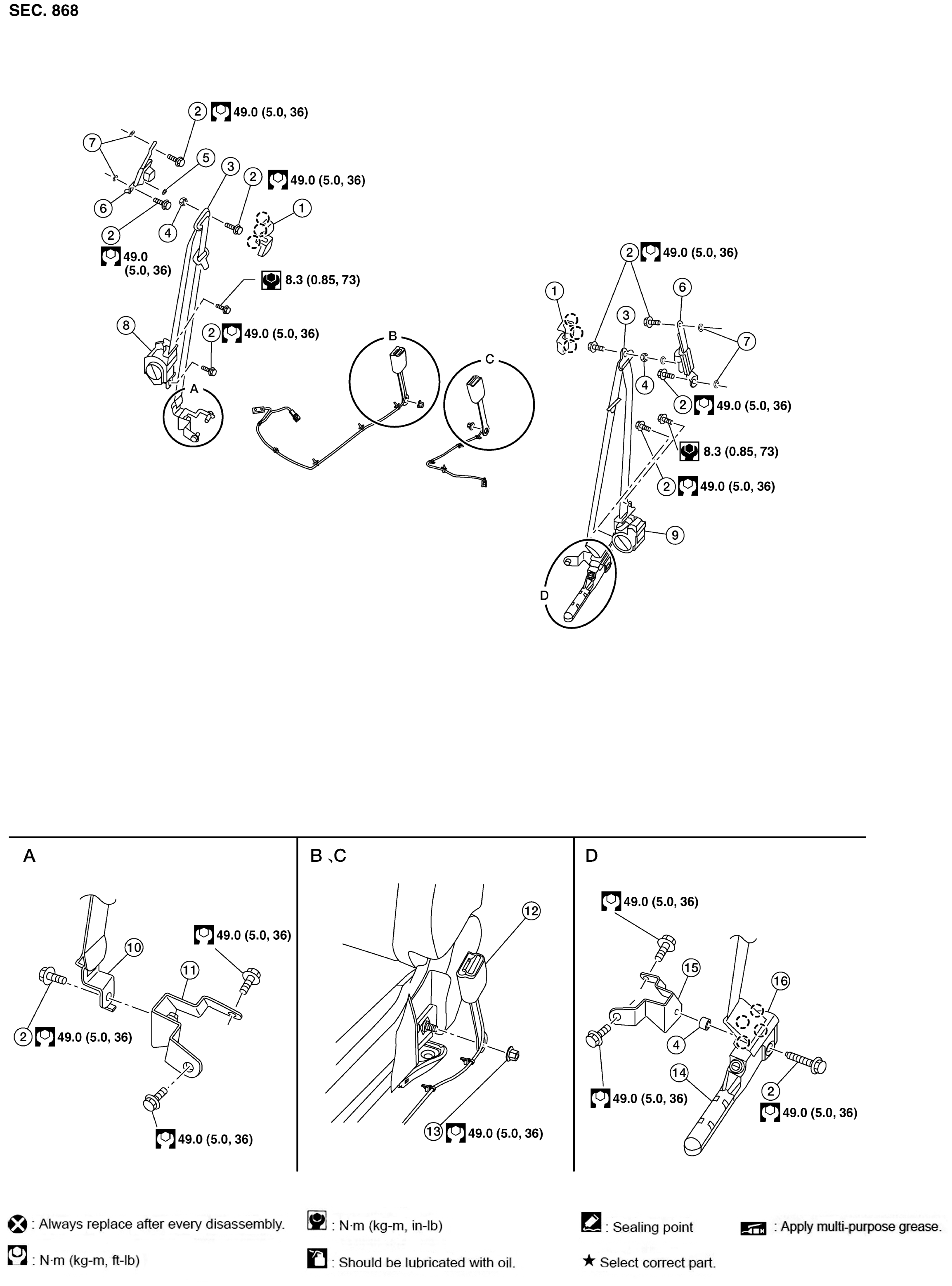

| 1. |
Height adjuster cover |
2. |
Anchor bolt |
3. |
Shoulder anchor |
| 4. |
Spacer |
5. |
Retaining washer |
6. |
Seat belt height adjuster |
| 7. |
Fiber washer |
8. |
Seat belt pre-tensioner retractor (Passenger side) |
9. |
Seat belt pre-tensioner retractor (Driver side) |
| 10. |
Outer anchor |
11. |
Joint bracket assembly (RH) |
12. |
Seat belt buckle |
| 13. |
Seat belt buckle nut |
14. |
Lap pre-tensioner |
15. |
Joint bracket assembly (LH) |
| 16. |
Lap pre-tensioner seat belt garnish |
A. |
Enlarged view of joint bracket assembly (RH) |
B. |
Enlarged view of front seat belt buckle |
| C. |
Enlarged view of front seat belt buckle |
D. |
Enlarged view of joint bracket assembly (LH) |
 |
Pawl |
