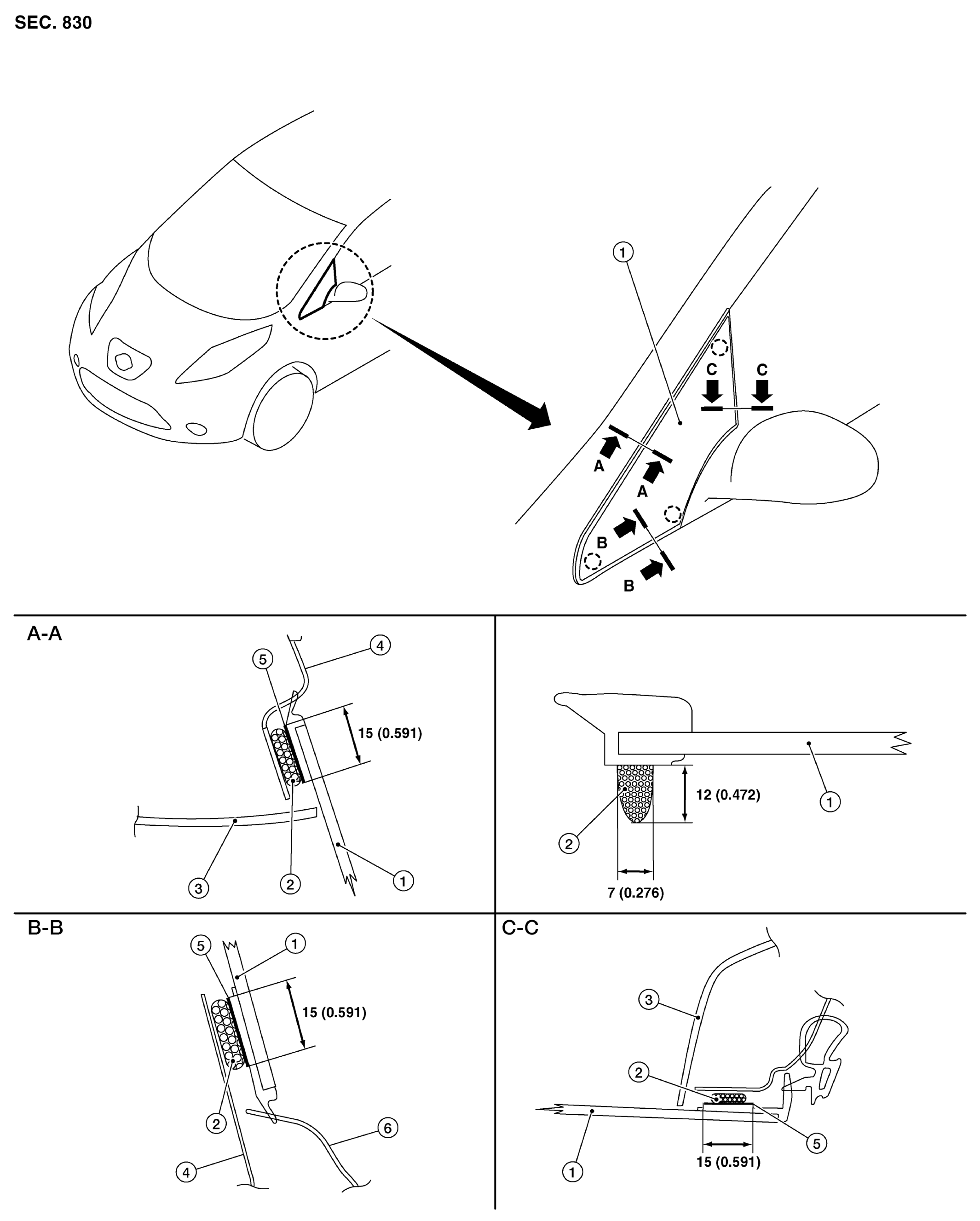

Exploded View With Torque Specifications

GNSAWKIA3166ZZ-166Courtesy of NISSAN NORTH AMERICA, INC.

Unit mm (in)

1. Opera window glass 2. Adhesive 3. Front pillar finisher
4. Body side outer 5. Glass primer 6. Front fender panel
MARU-H Pawl
