Exploded View With Torque Specifications

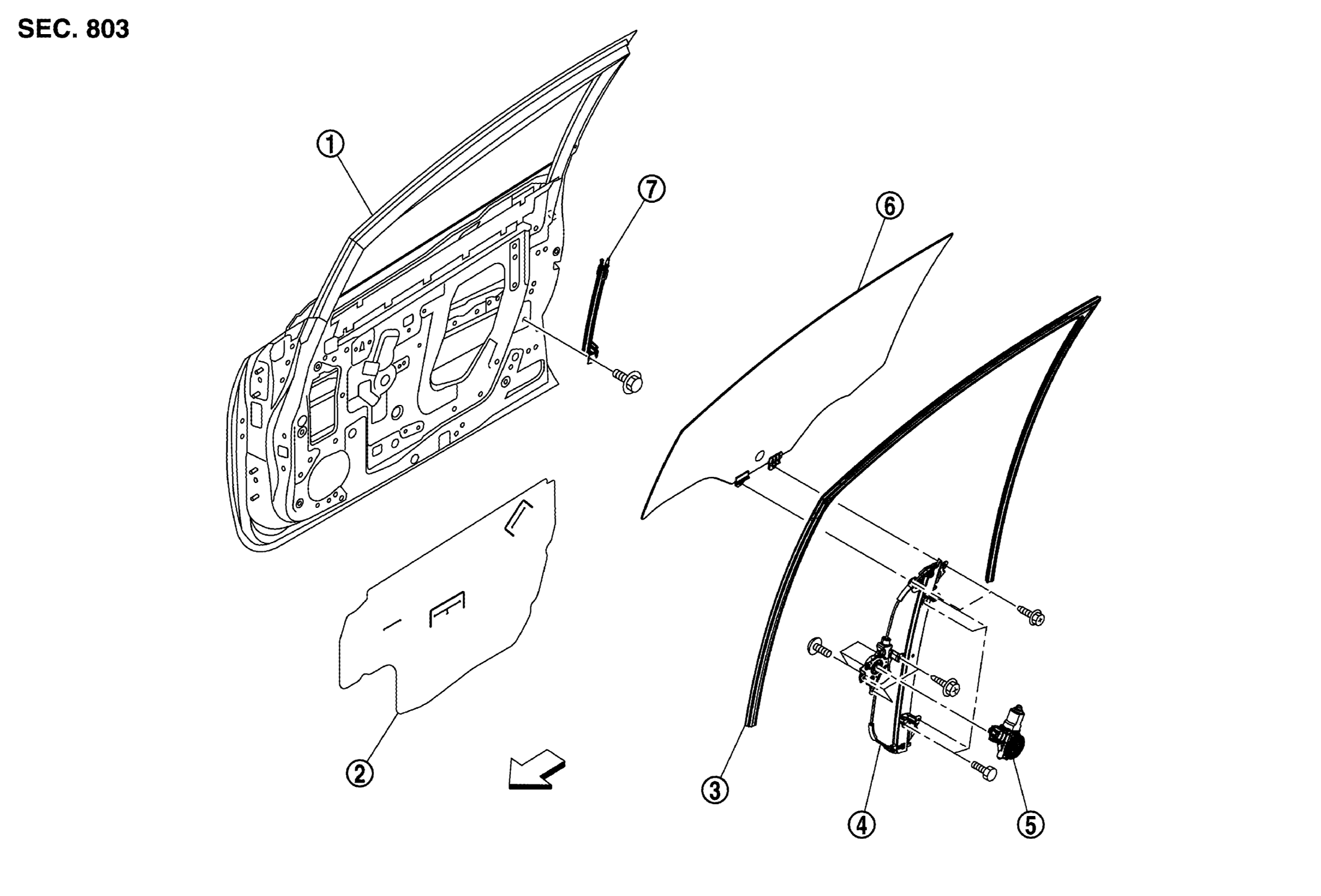

GNSJMKIA6425ZZ-425Courtesy of NISSAN NORTH AMERICA, INC.
1. Front door panel 2. Sealing screen 3. Front door glass run
4. Front door regulator 5. Power window motor 6. Front door glass
7. Lower sash ARROW Front
