Intelligent Key System/Engine Start Function: Wiring Diagram

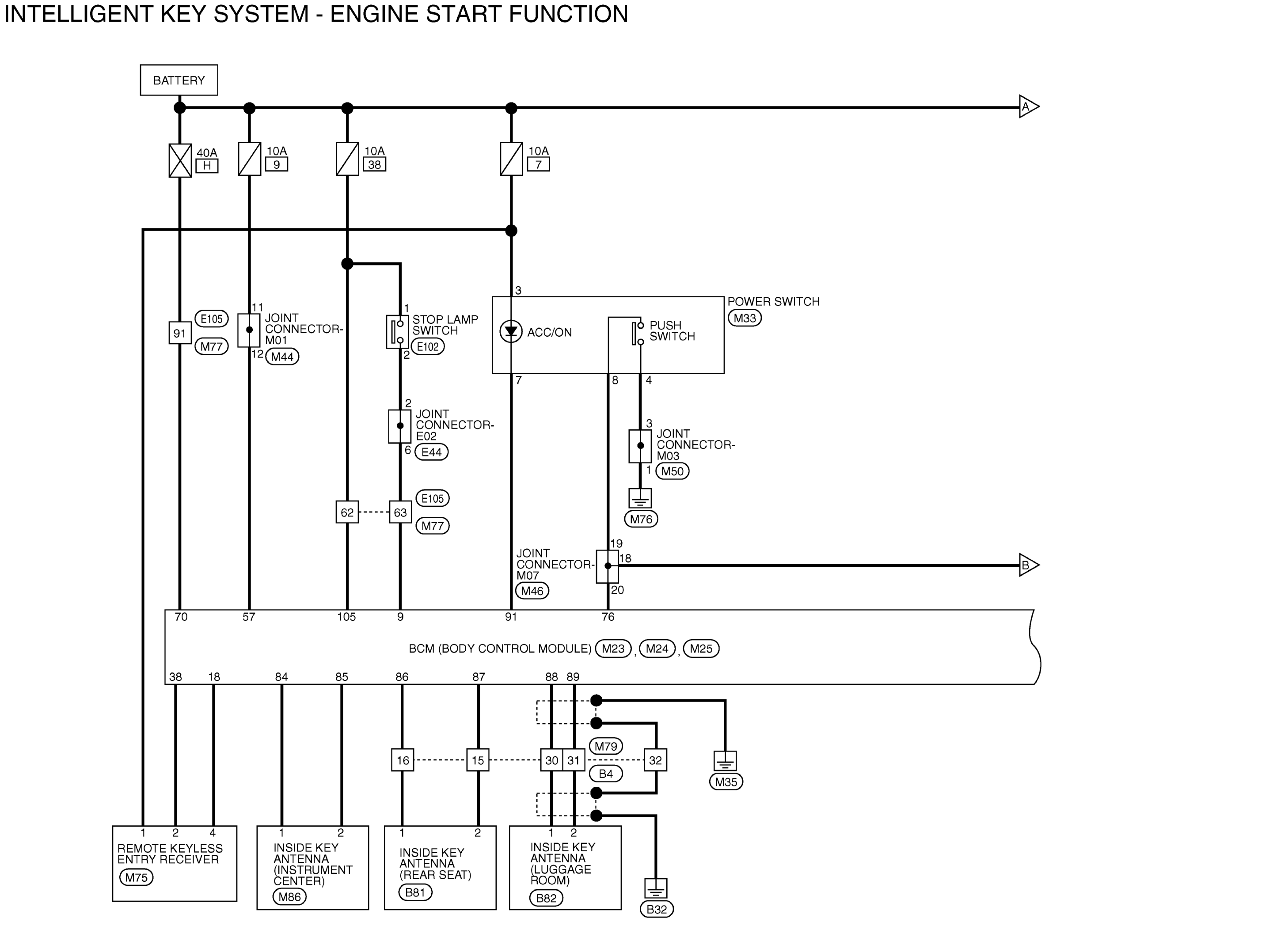

GNSAAKWA1311GB-311

Courtesy of NISSAN NORTH AMERICA, INC.

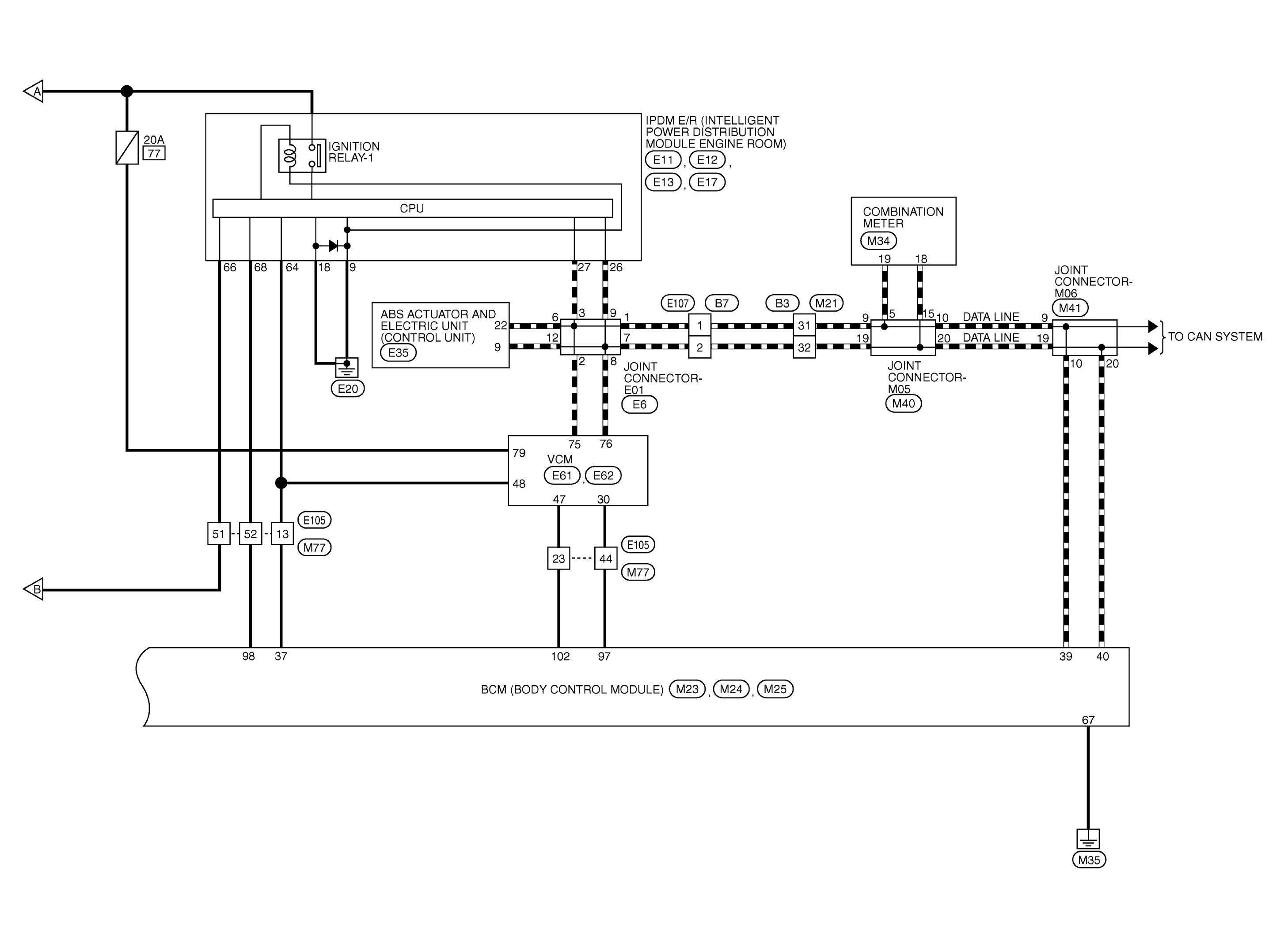

GNSABKWA3640GB-640

Courtesy of NISSAN NORTH AMERICA, INC.

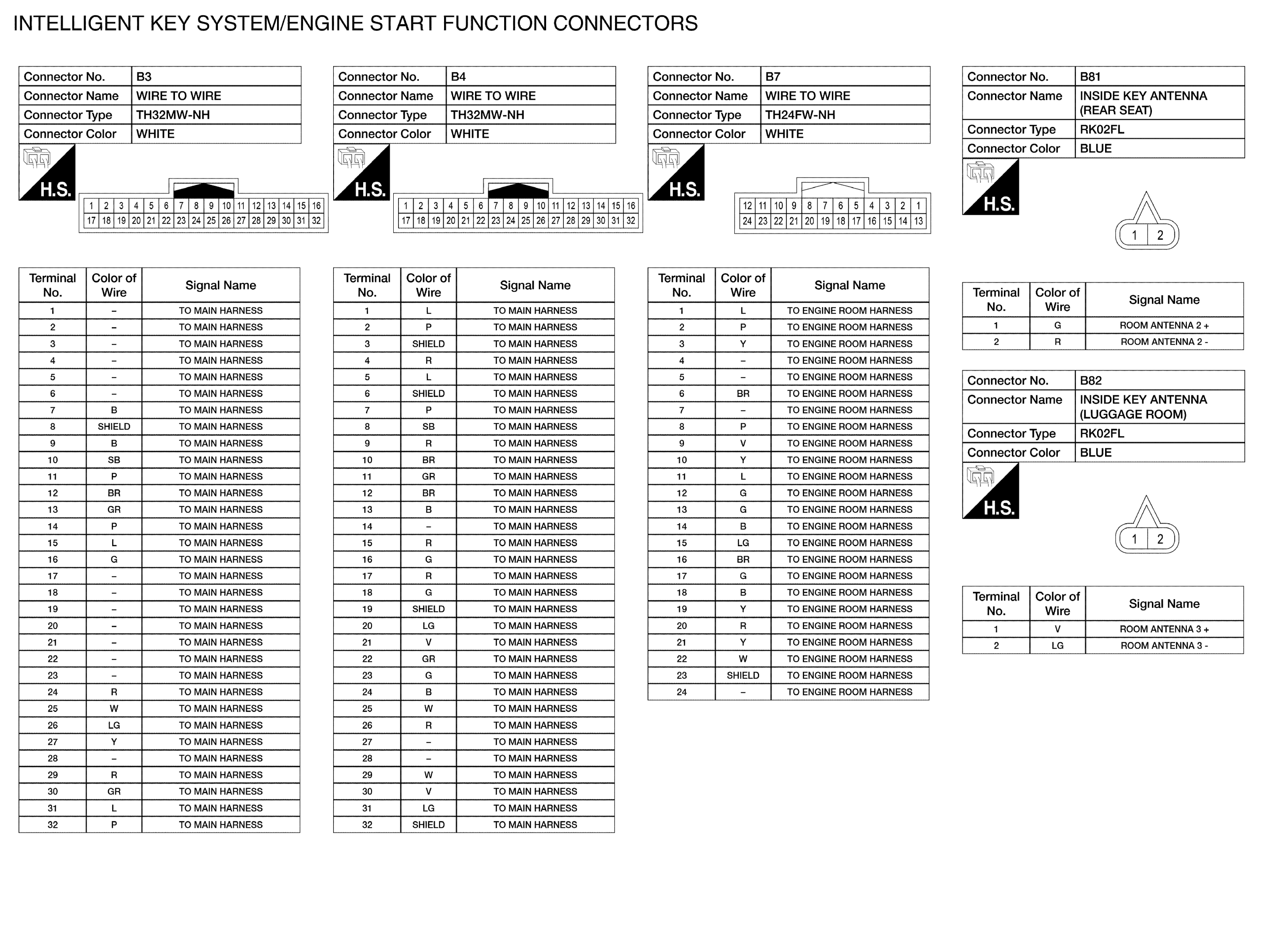

GNSABKIA9545GB-545

Courtesy of NISSAN NORTH AMERICA, INC.

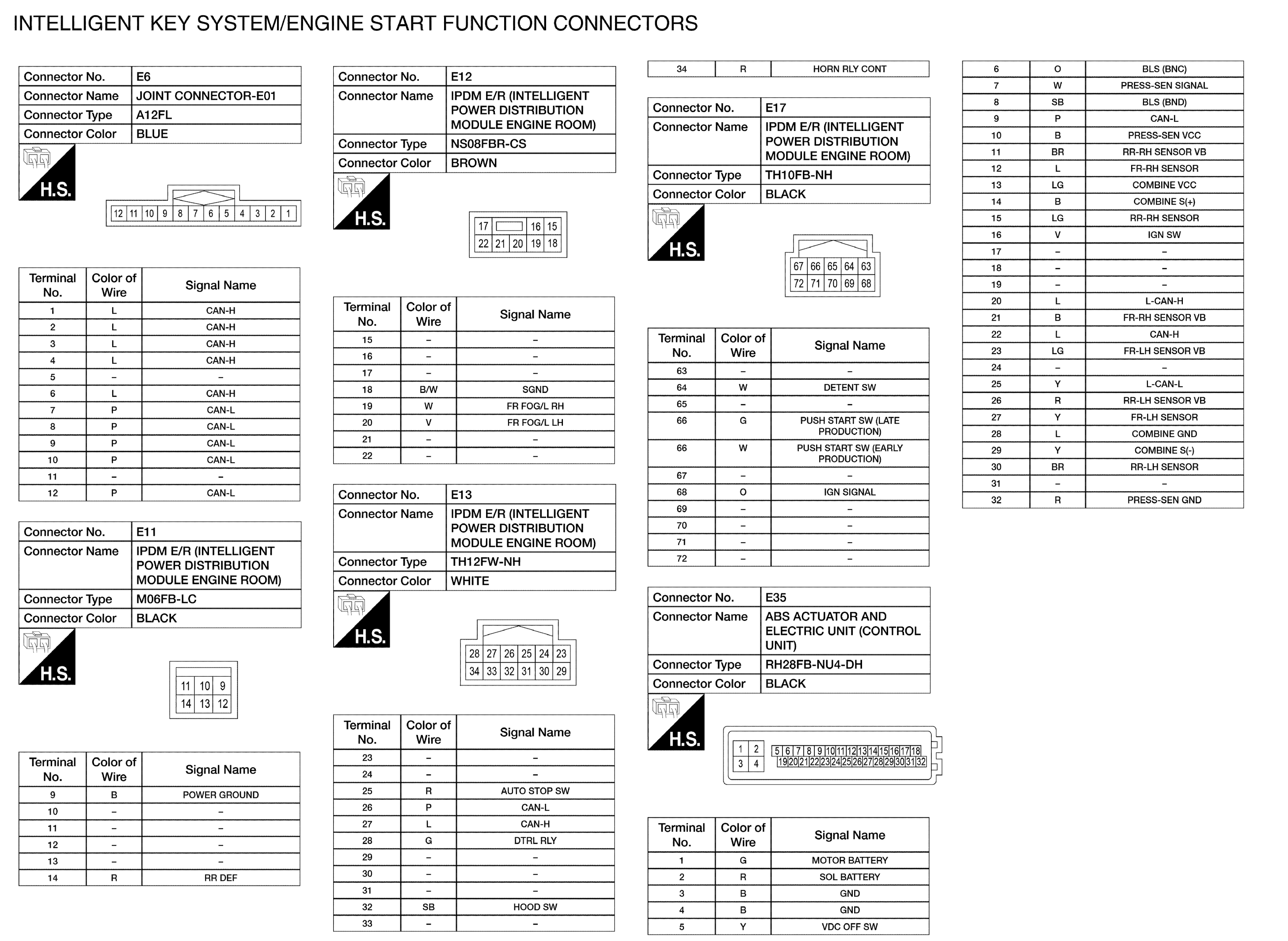

GNSABKIA9546GB-546

Courtesy of NISSAN NORTH AMERICA, INC.

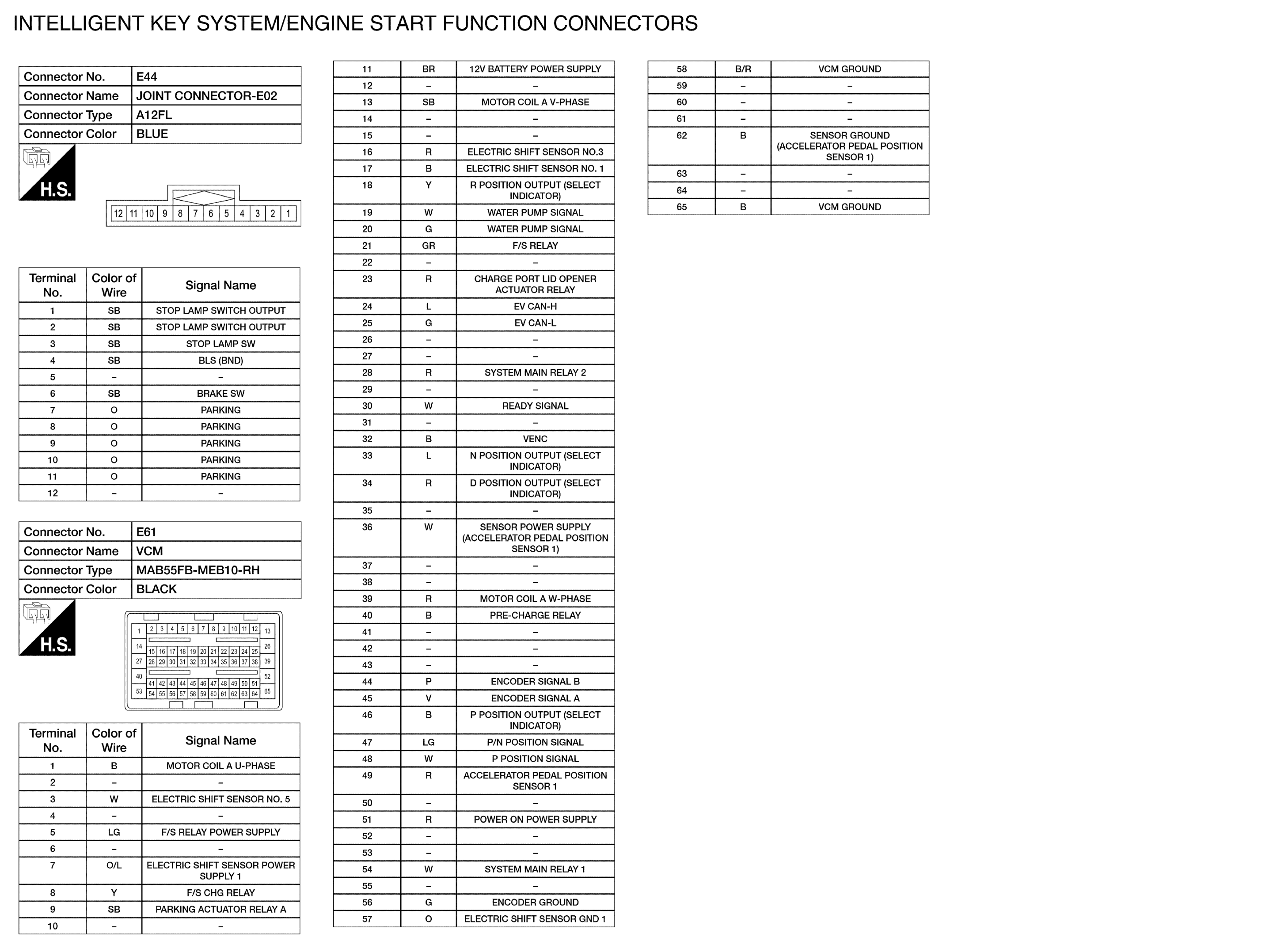

GNSABKIA9547GB-547

Courtesy of NISSAN NORTH AMERICA, INC.

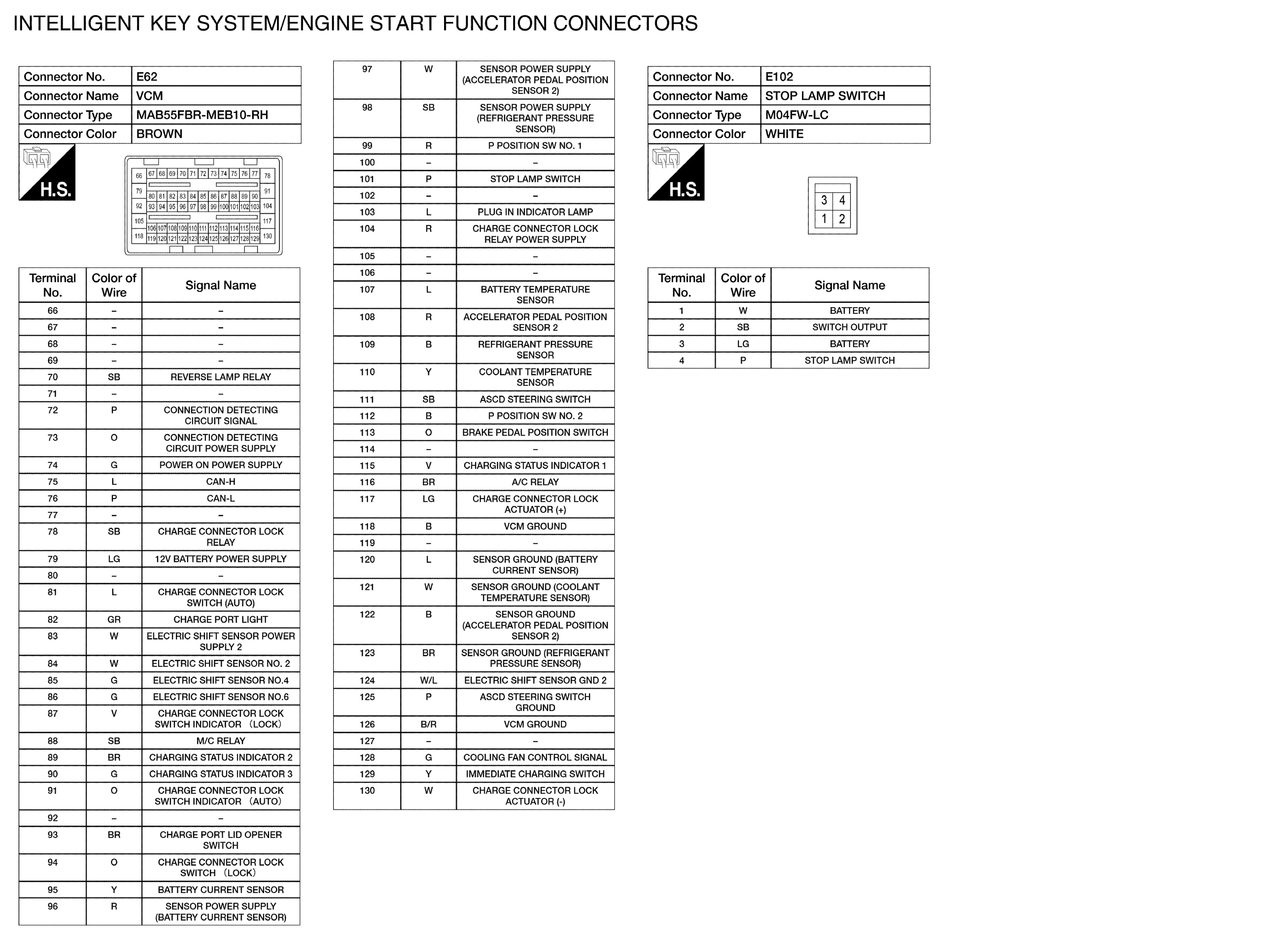

GNSABKIA9548GB-548

Courtesy of NISSAN NORTH AMERICA, INC.

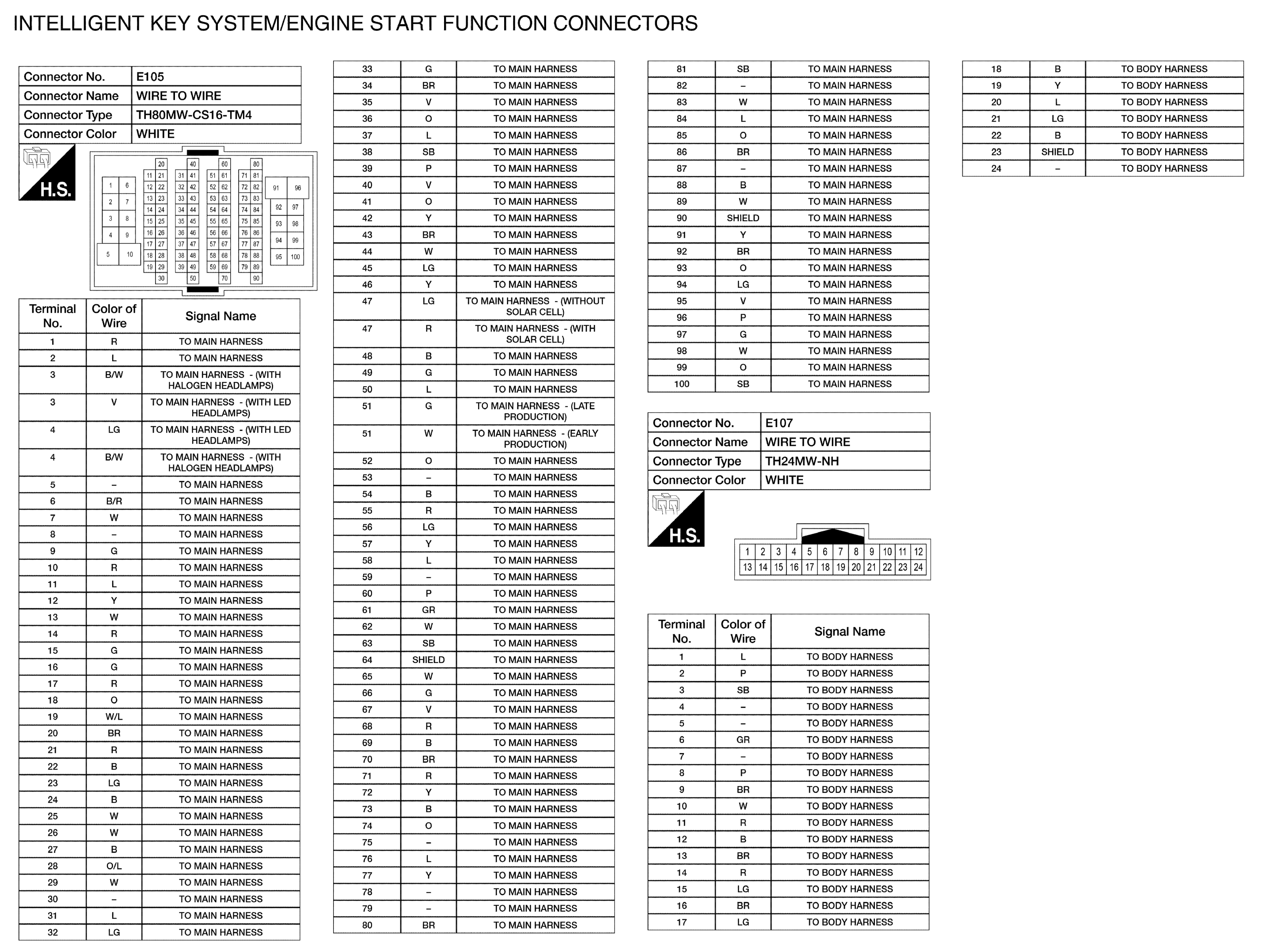

GNSABKIA9549GB-549

Courtesy of NISSAN NORTH AMERICA, INC.

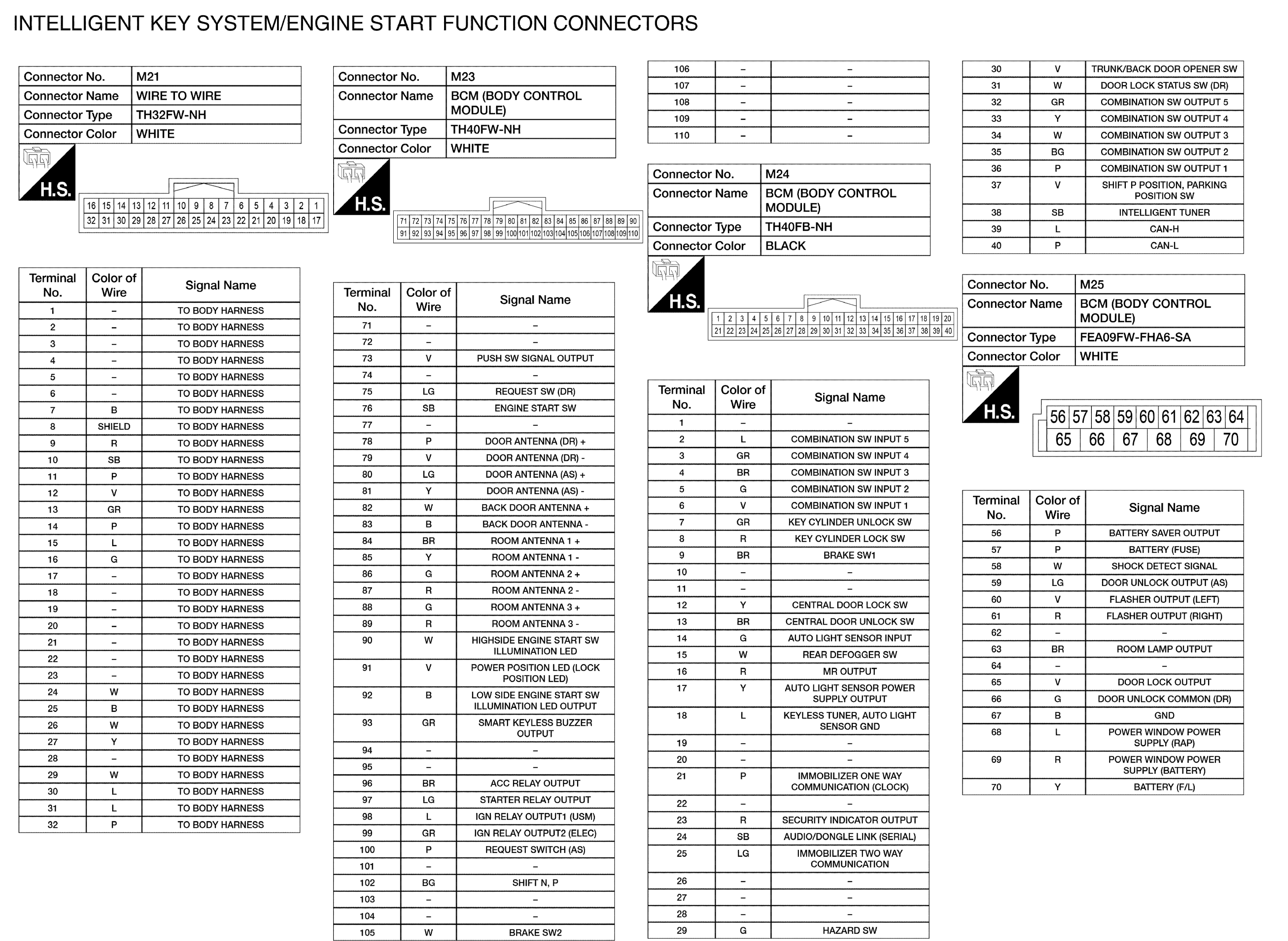

GNSABKIA9550GB-550

Courtesy of NISSAN NORTH AMERICA, INC.

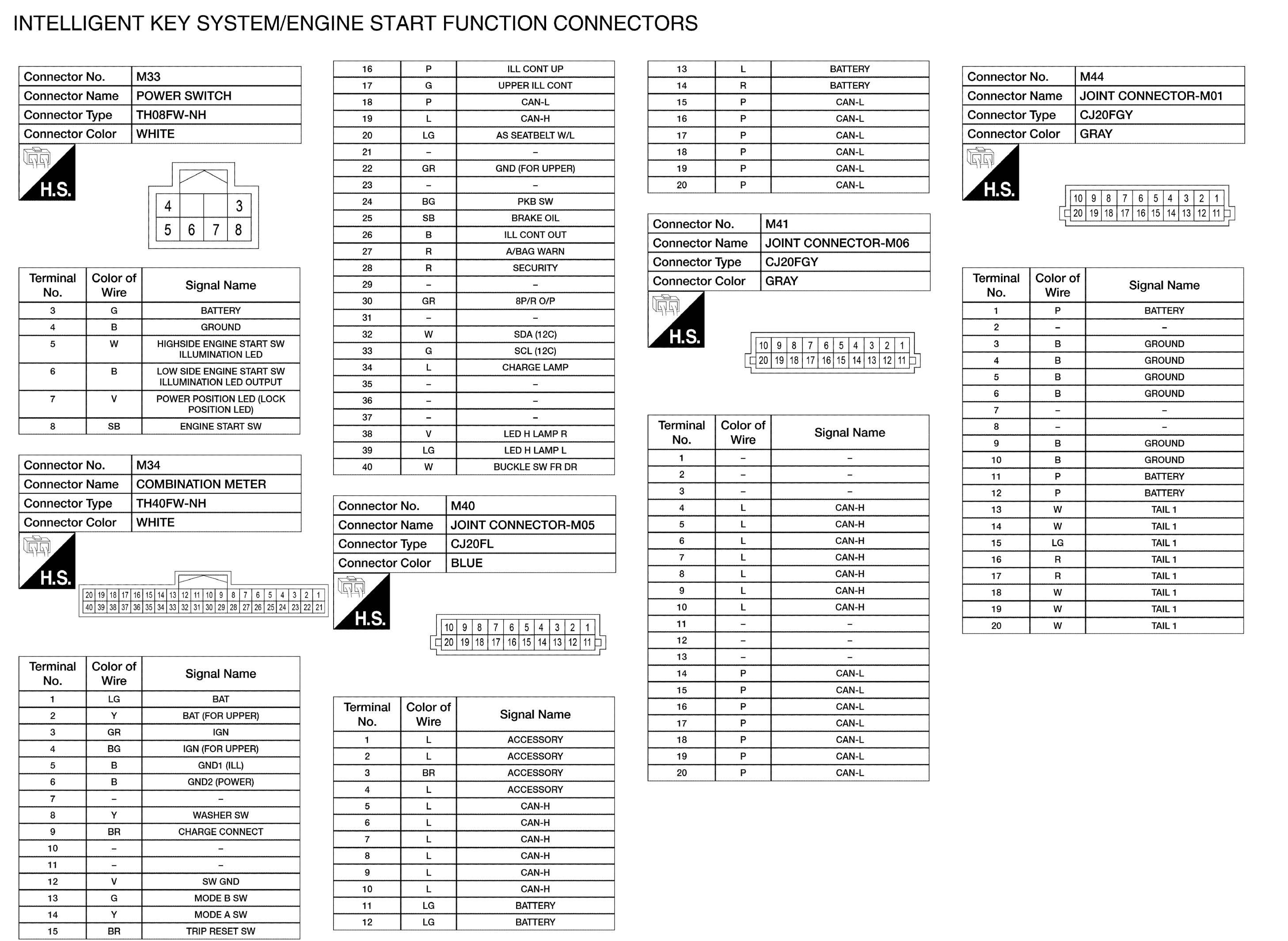

GNSABKIA9551GB-551

Courtesy of NISSAN NORTH AMERICA, INC.

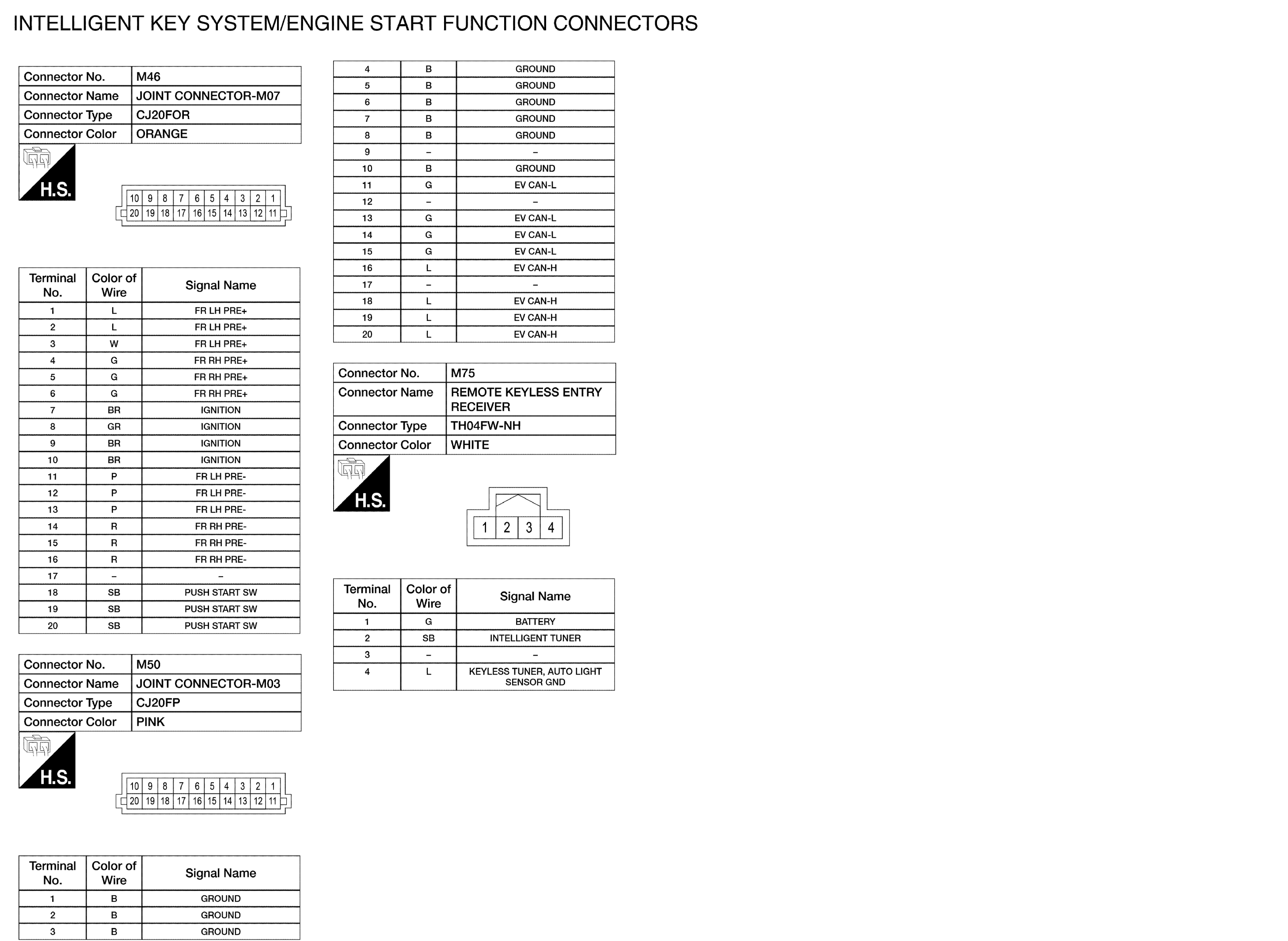

GNSABKIA9552GB-552

Courtesy of NISSAN NORTH AMERICA, INC.

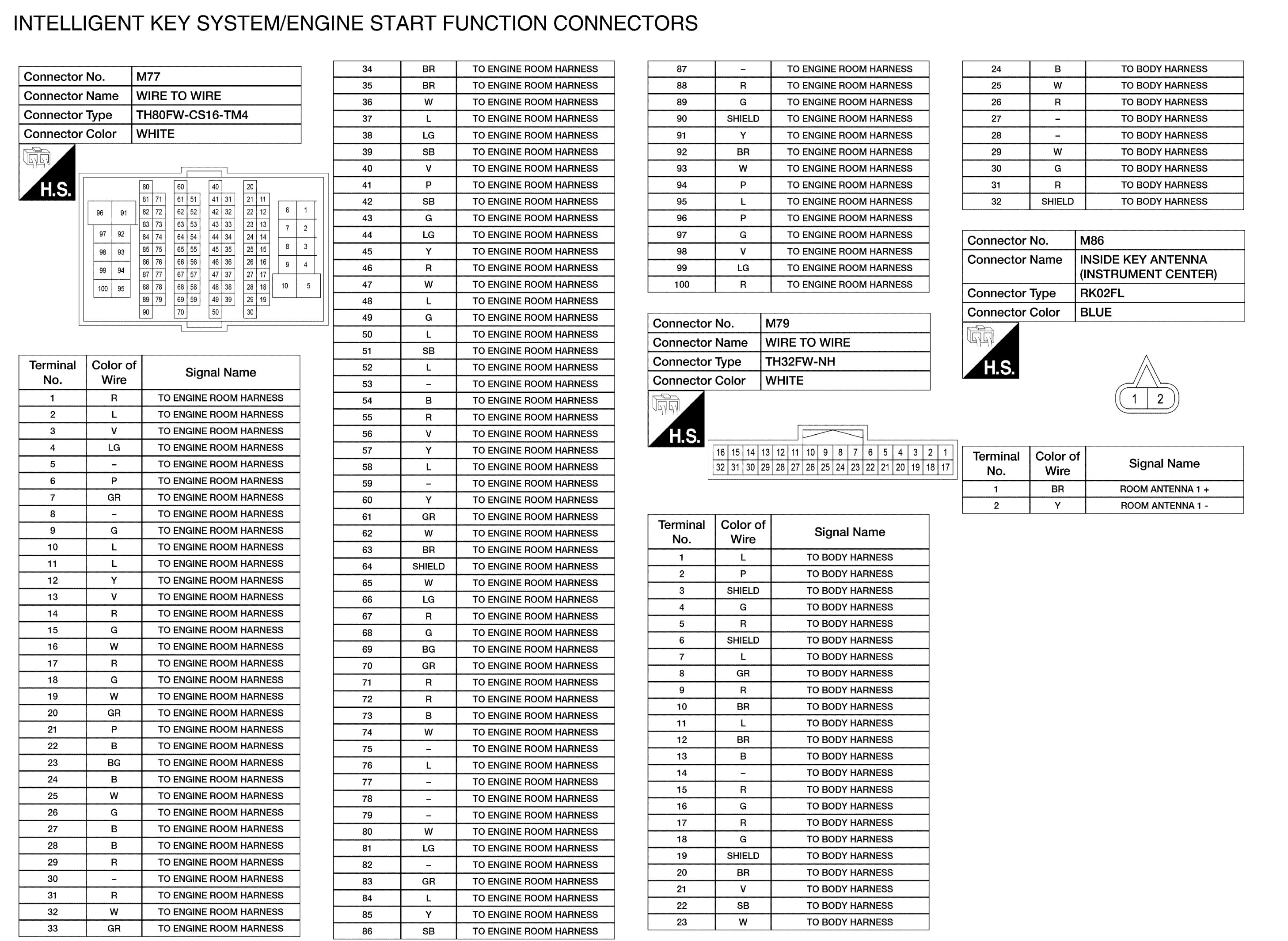

GNSABKIA9553GB-553

Courtesy of NISSAN NORTH AMERICA, INC.
