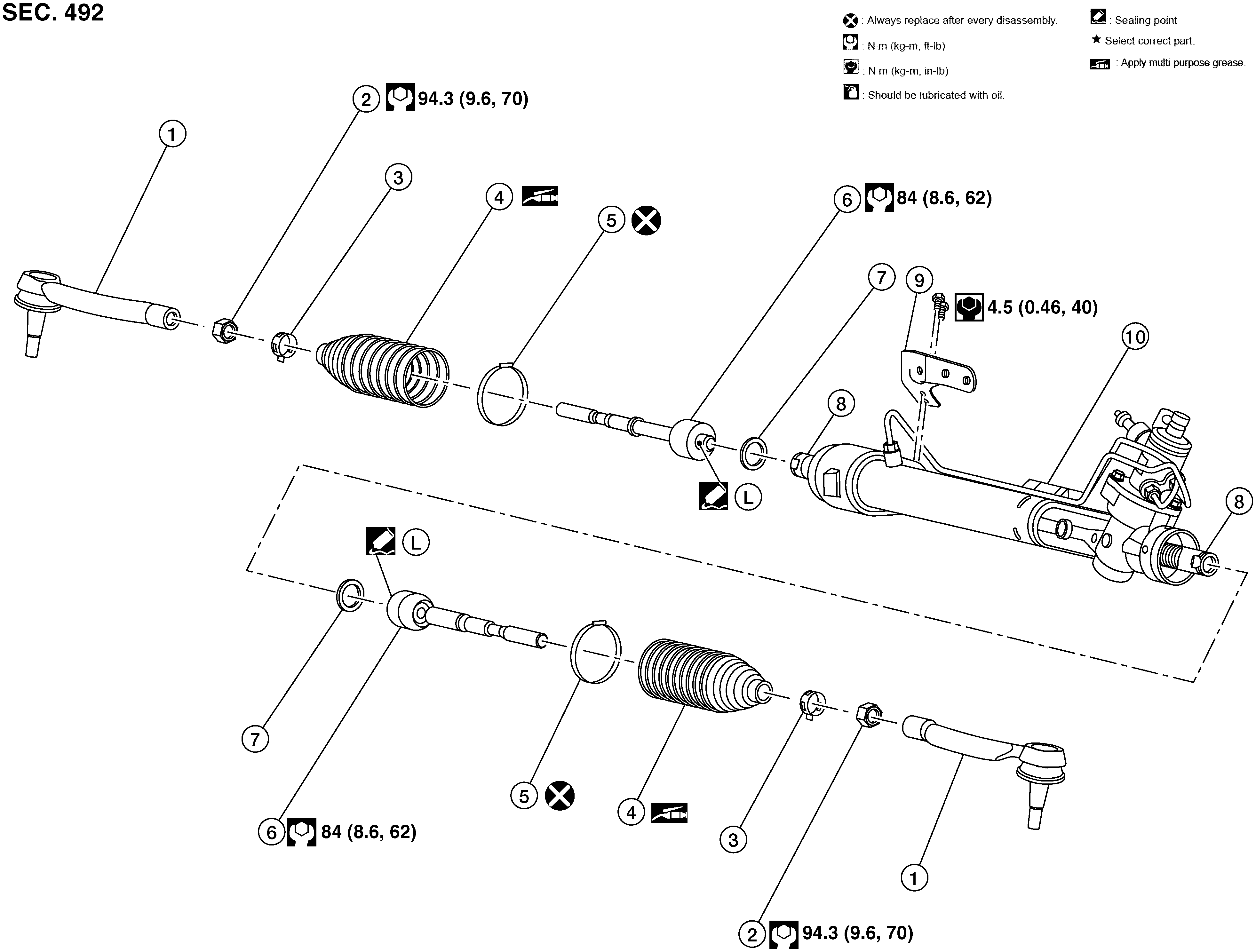

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Outer socket |
2. |
Inner socket lock nut |
3. |
Small boot clamp |
| 4. |
Boot |
5. |
Large boot clamp |
6. |
Inner socket |
| 7. |
Spacer |
8. |
Rack bar (not serviceable) |
9. |
Bracket |
| 10. |
Steering gear |
|
|
|
|
