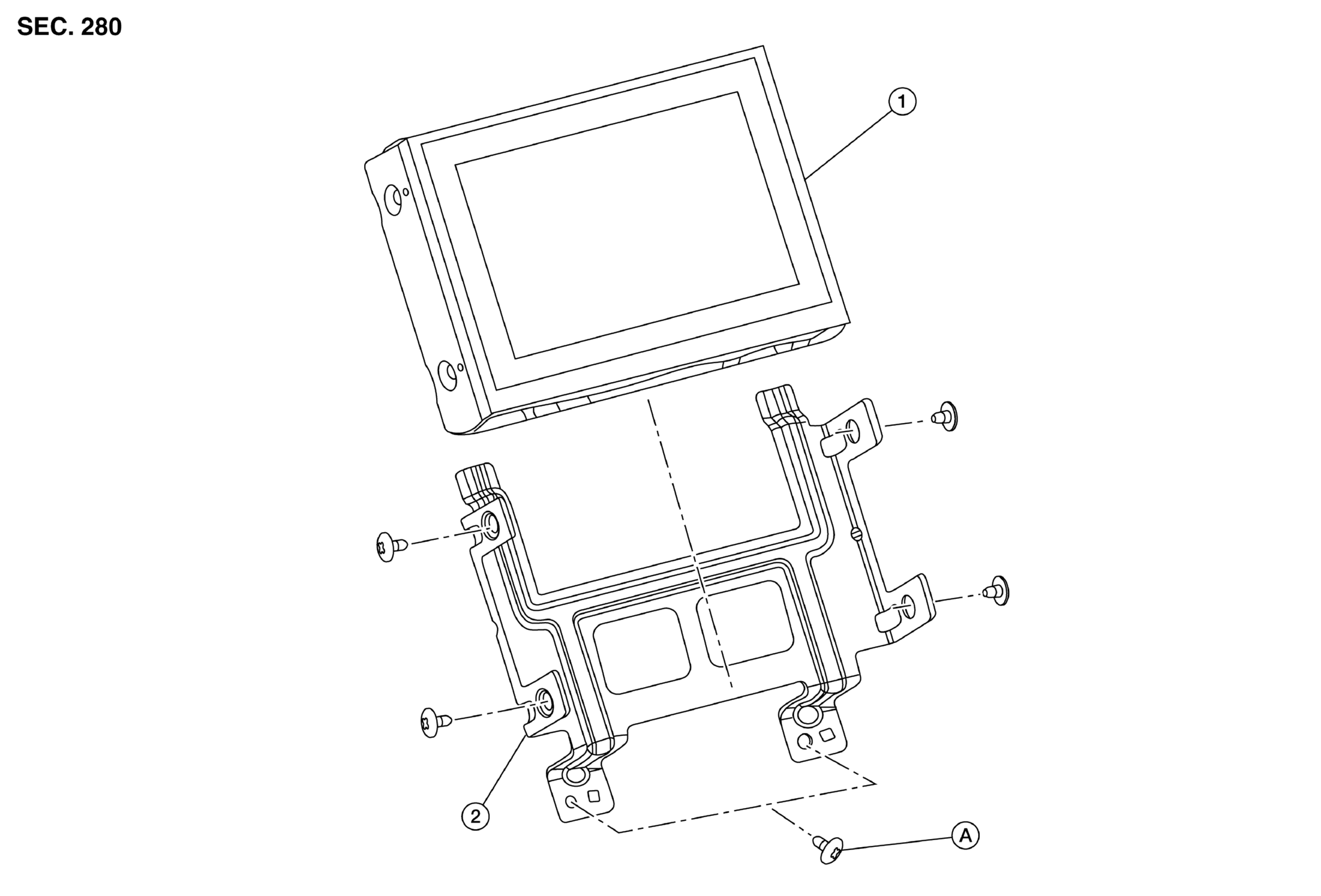

Exploded View With Torque Specifications
WARNING:
This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Display control unit
2.
Display control unit bracket
A.
Display control unit screws
