Exploded View (RH)

WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

QR25DE

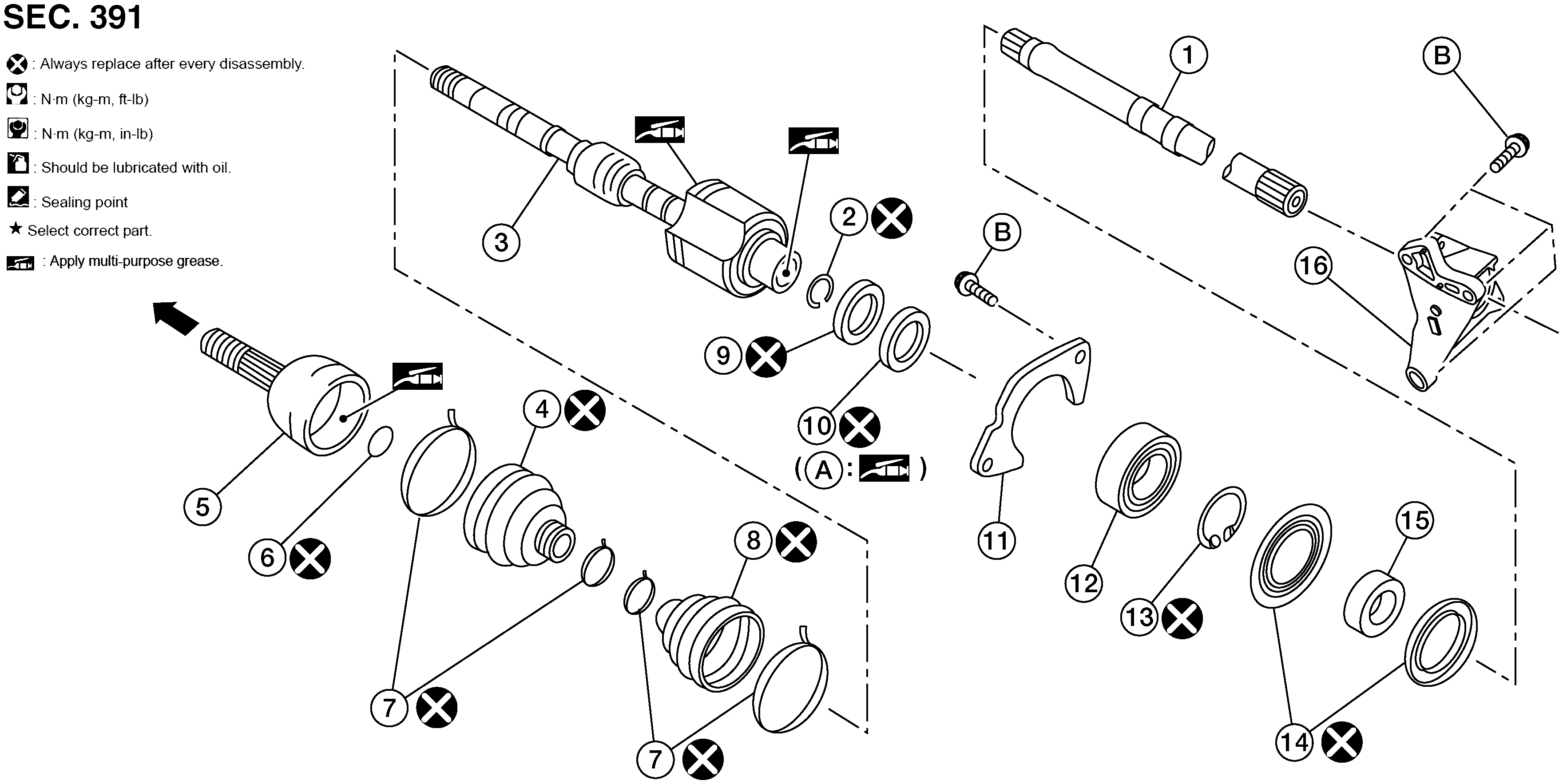

Fig 1: Exploded View Of Front Axle (RH) (QR25DE)
GNSAWDIA1181ZZ-181Courtesy of NISSAN NORTH AMERICA, INC.
1. Link shaft 2. Circular clip 3. Housing assembly
4. Boot 5. Joint sub-assembly 6. Circular clip
7. Boot band 8. Boot 9. Dust shield
10. Oil seal 11. Bearing retainer 12. Bearing
13. Snap ring 14. Dust shield 15. Collar
16. Support bearing bracket A. Oil seal lip B: Refer to ASSEMBLY
ARROWF Wheel side GREASE Fill NISSAN Genuine grease or equivalent.

VQ35DE

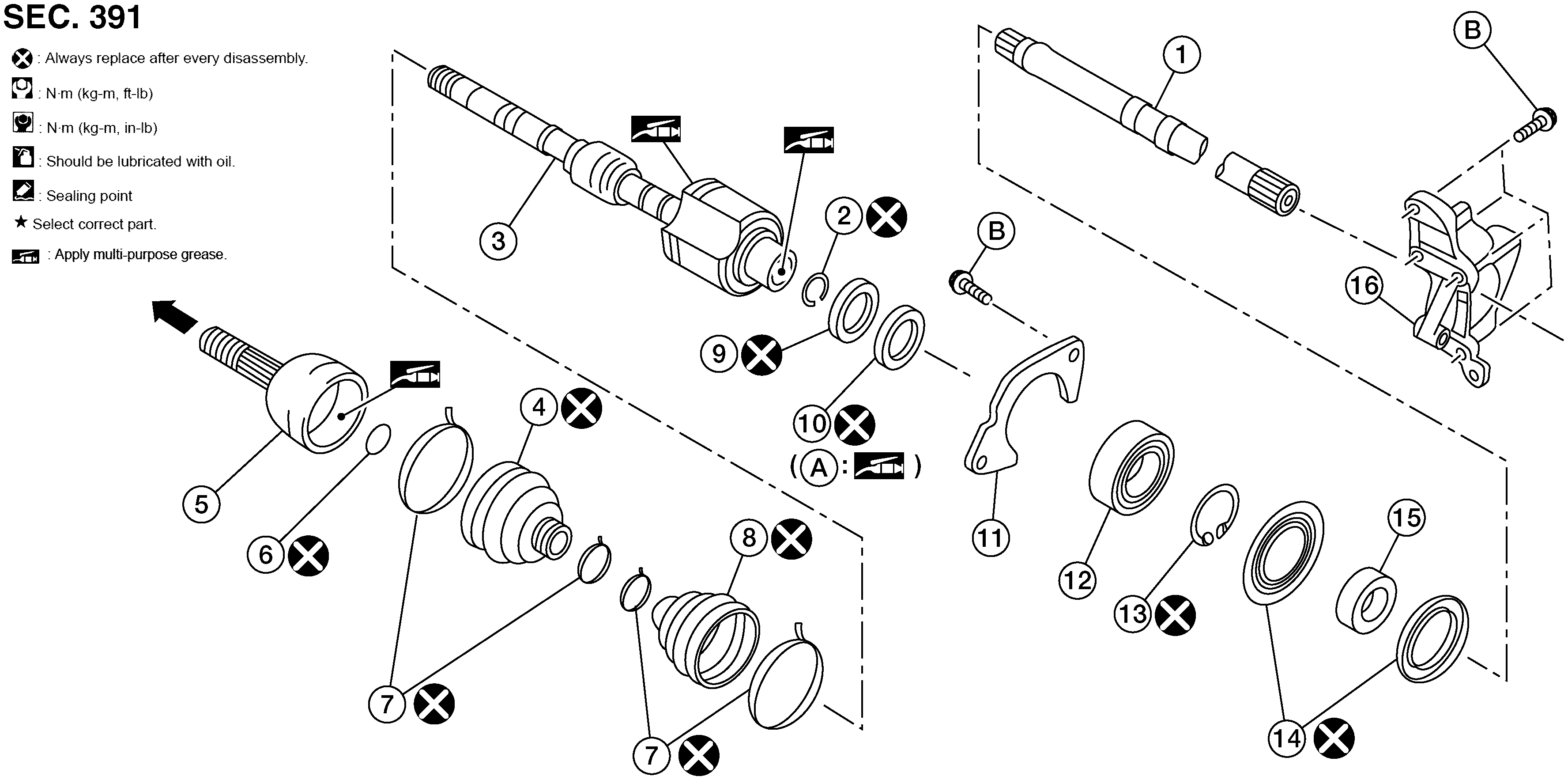

Fig 2: Exploded View Of Front Axle (RH) (VQ35DE)
GNSAWDIA1174ZZ-174Courtesy of NISSAN NORTH AMERICA, INC.
1. Link shaft 2. Circular clip 3. Housing assembly
4. Boot 5. Joint sub-assembly 6. Circular clip
7. Boot band 8. Boot 9. Dust shield
10. Oil seal 11. Bearing retainer 12. Bearing
13. Snap ring 14. Dust shield 15. Collar
16. Support bearing bracket A. Oil seal lip B: Refer to FRONT DRIVE SHAFT
ARROWF Wheel side GREASE Fill NISSAN Genuine grease or equivalent.
