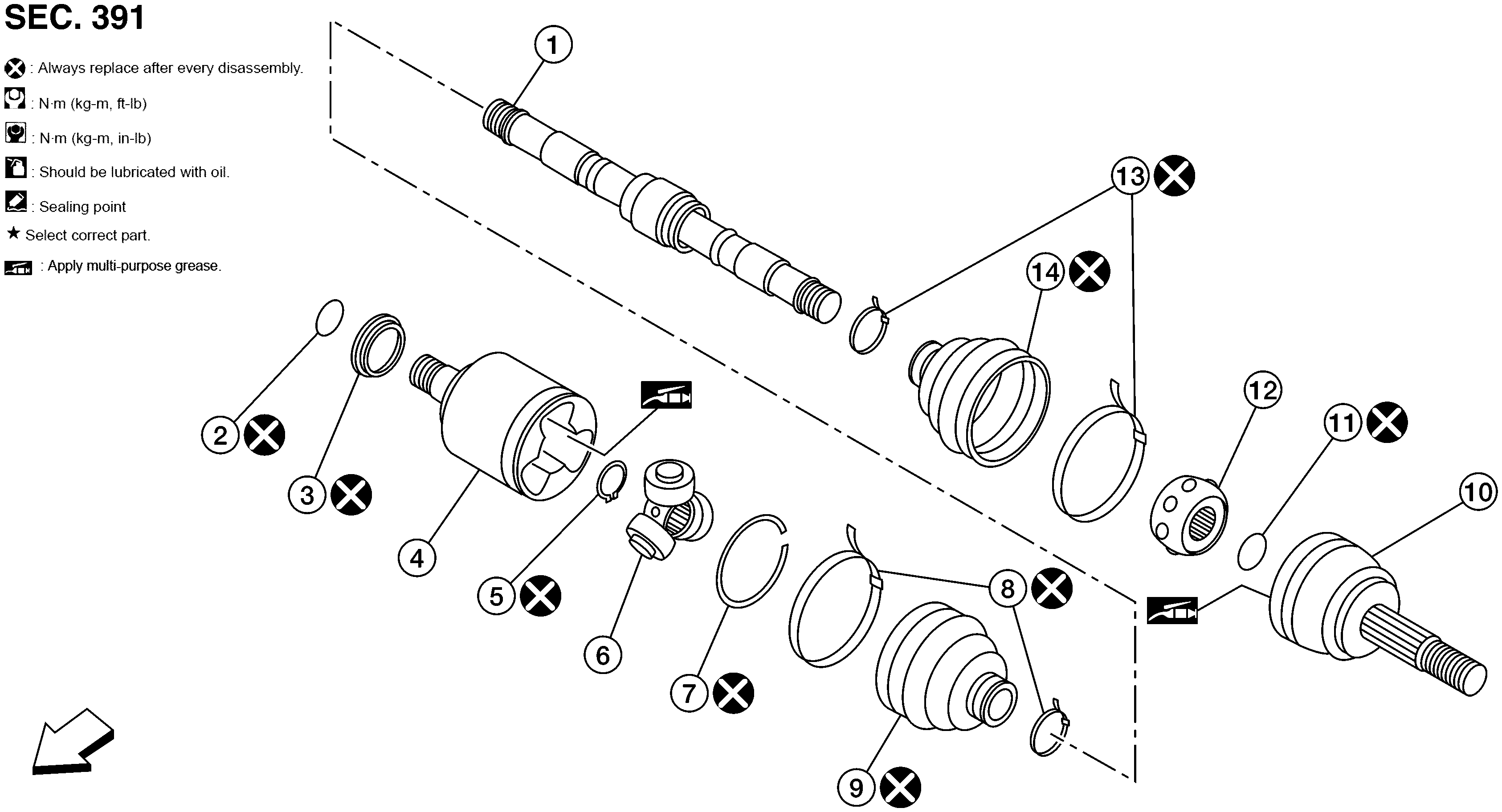

Exploded View (LH)
WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Shaft |
2. |
Circlip |
3. |
Dust shield |
| 4. |
Slide joint housing |
5. |
Snap ring |
6. |
Spider assembly |
| 7. |
Stopper ring |
8. |
Boot band |
9. |
Boot |
| 10. |
Joint sub-assembly |
11. |
Circlip |
12. |
Ball cage / Steel ball / Inner race assembly |
| 13. |
Boot band |
14. |
Boot |
 |
Front |
