Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

QR25DE

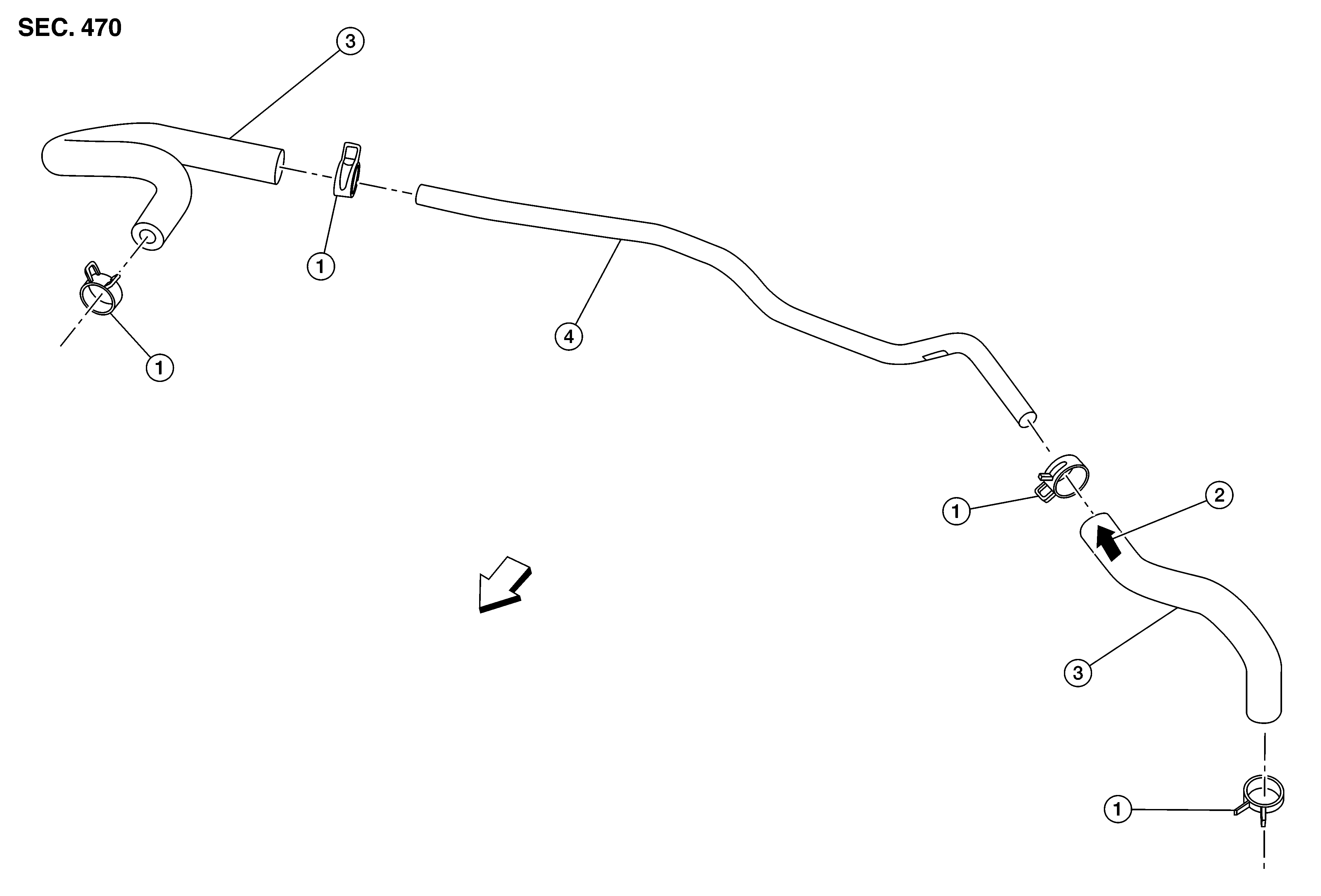

Fig 1: Vacuum Lines (QR25DE)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Check valve direction stamp (if equipped)	3.	Vacuum hose
4.	Vacuum piping		Front

NOTE:

If check valve direction stamp is not on vacuum hose, the check valve is serviced as part of the brake booster.

VQ35DE

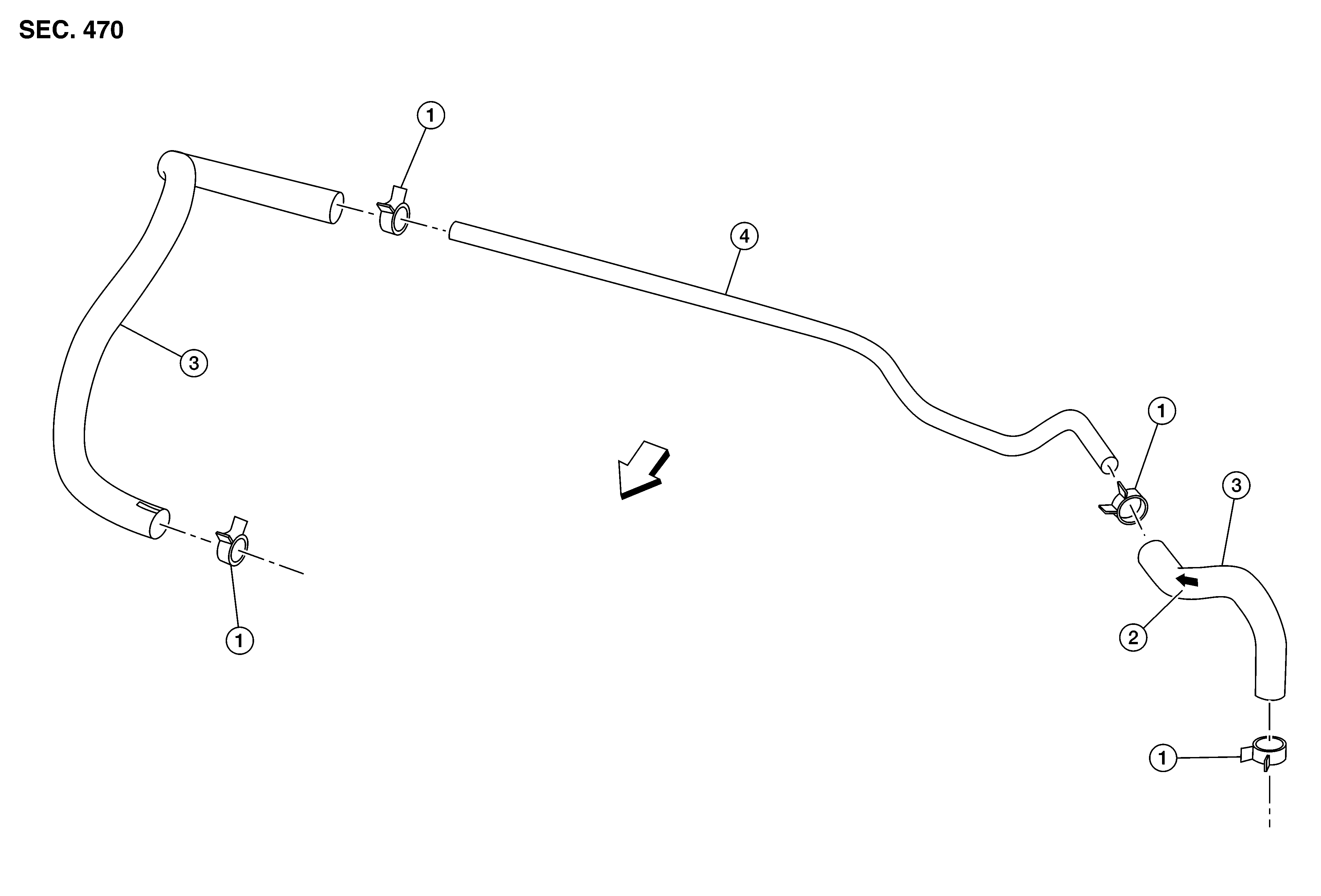

Fig 2: Vacuum Lines (VQ35DE)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Check valve direction stamp (if equipped)	3.	Vacuum hose
4.	Vacuum piping		Front

NOTE:

If check valve direction stamp is not on vacuum hose, the check valve is serviced as part of the brake booster.
