Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

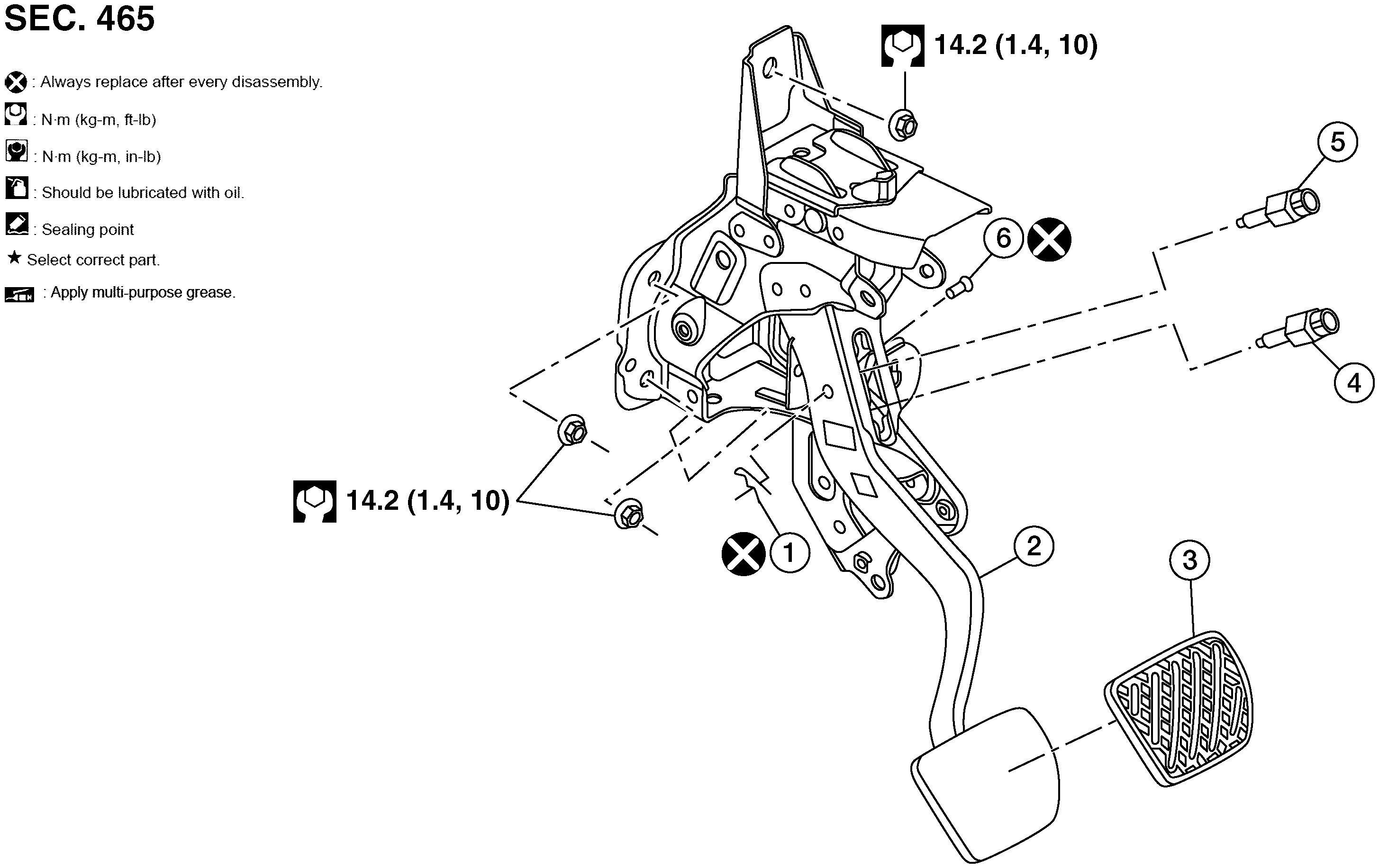

Fig 1: Brake Pedal With Torque Specifications
GNSAWFIA1214ZZ-214Courtesy of NISSAN NORTH AMERICA, INC.
1. Snap pin 2. Brake pedal assembly 3. Brake pedal pad
4. Stop lamp switch 5. brake pedal position switch (if equipped) 6. Clevis pin
