Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

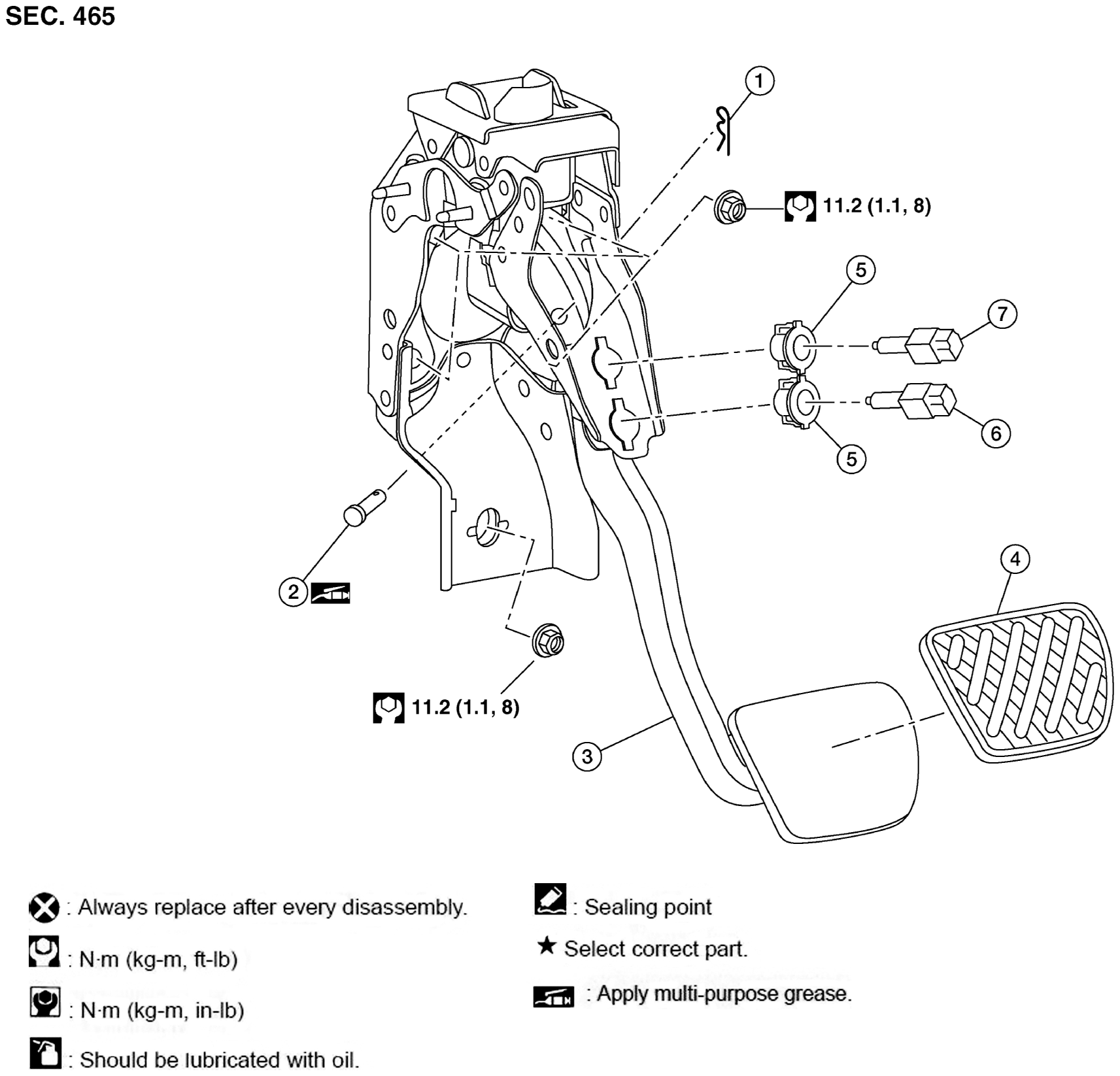

Fig 1: Brake Pedal With Torque Specifications
GNSAWFIA1121ZZ-121Courtesy of NISSAN NORTH AMERICA, INC.
1. Snap Pin 2. Clevis Pin 3. Brake Pedal Assembly
4. Brake Pedal Pad 5. Clip 6. Stop Lamp Switch
7. Brake Pedal Position Switch
