Exploded View

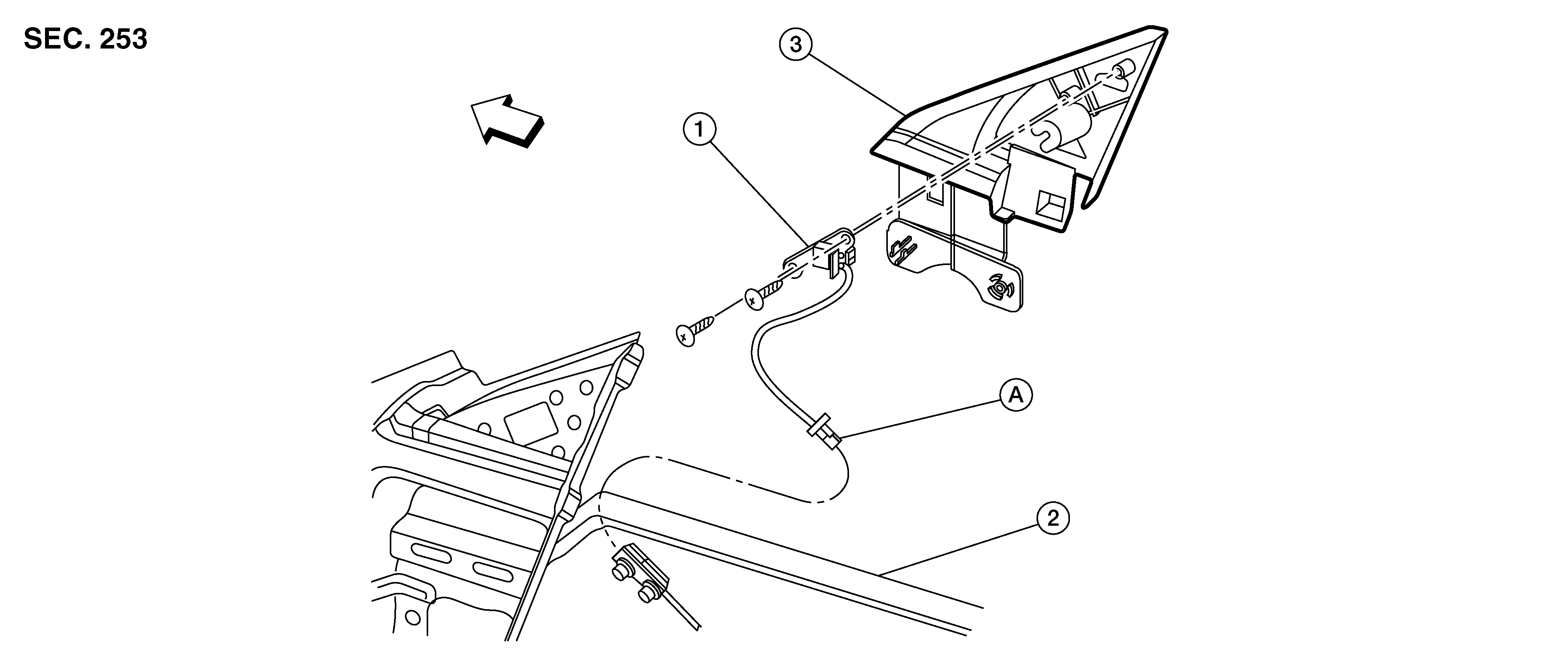

Fig 1: BLIND SPOT WARNING INDICATOR With Torque Specifications
GNSAWOIA0083ZZ-083Courtesy of NISSAN NORTH AMERICA, INC.
1. Blind spot warning indicator 2. Front door 3. Door mirror corner finisher
A. Blind spot warning indicator harness connector ARROW Front
