Combination Switch Matrix (Without Variable Intermittent Wipers)

WARNING: This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

Combination Switch Circuit (Without Variable Intermittent Wipers)

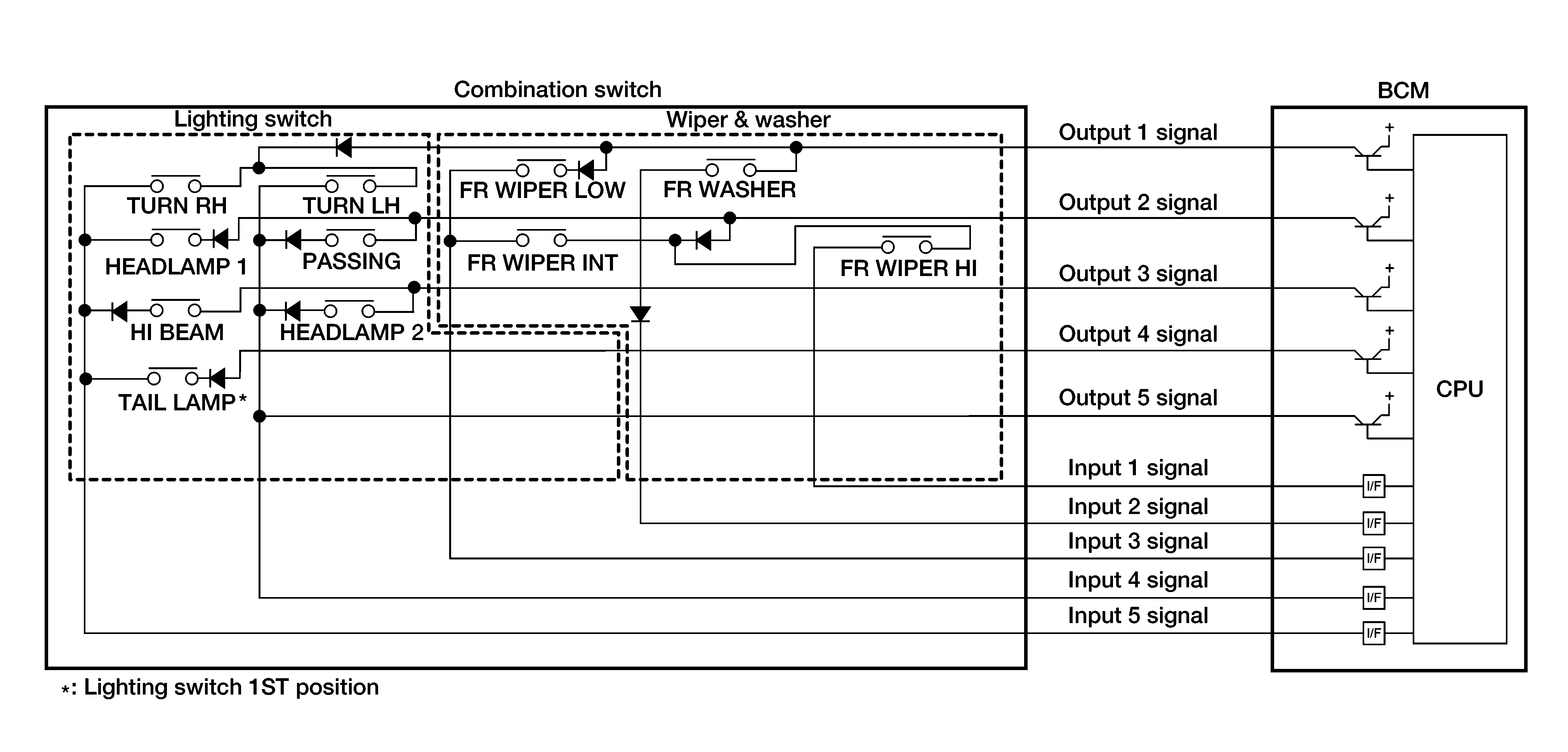

Fig 1: Combination Switch Matrix (Without Variable Intermittent Wipers) Wiring Diagram
GNSAWMIA1569GB-569Courtesy of NISSAN NORTH AMERICA, INC.
COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5
OUTPUT 1 - FR WASHER FR WIPER LOW TURN LH TURN RH
OUTPUT 2 FR WIPER HI - FR WIPER INT PASSING HEADLAMP 1
OUTPUT 3 - - - HEADLAMP 2 HI BEAM
OUTPUT 4 - - - - TAIL LAMP
OUTPUT 5 - - - - -
