Overall Sequence

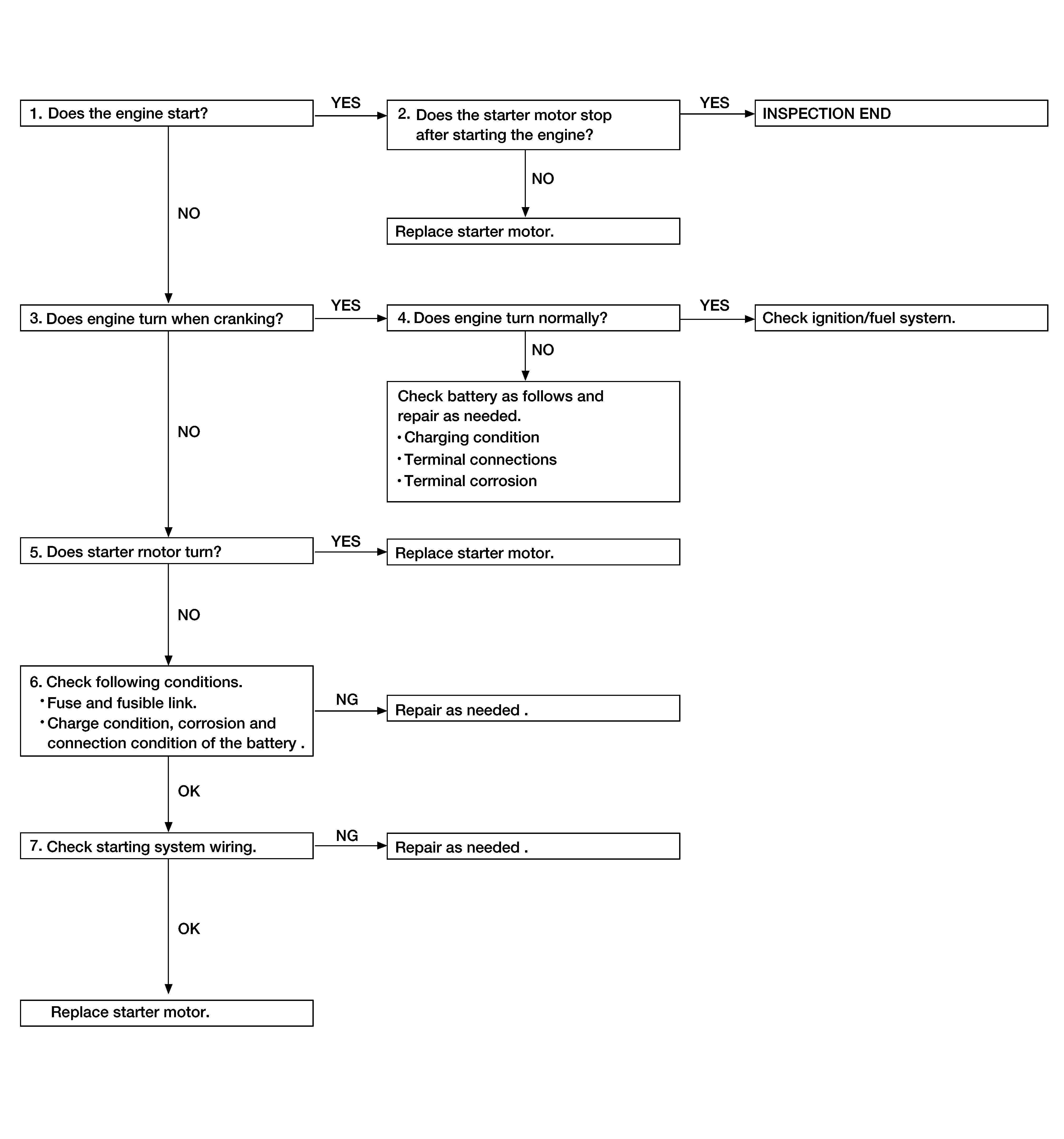

Fig 1: Diagnosis And Repair Workflow Chart (Without GR8-1200 NI)
G08437751Courtesy of NISSAN NORTH AMERICA, INC.
