Exploded View With Torque Specifications

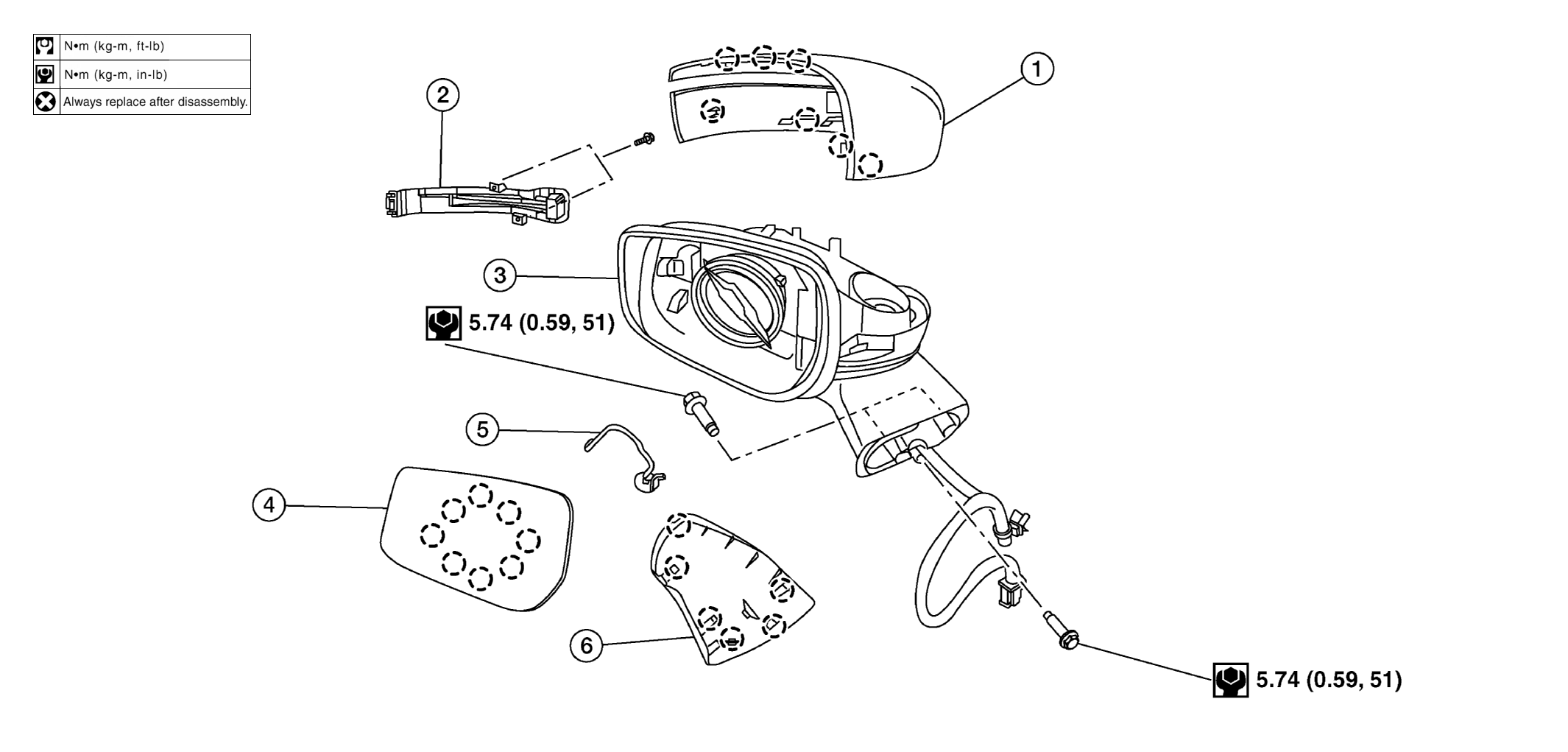

Fig 1: Exploded View Of Door Mirror With Torque Specifications
GNSAWLIA2708ZZ-708Courtesy of NISSAN NORTH AMERICA, INC.
1. Door mirror rear finisher 2. Side turn signal lamp (if equipped) 3. Door mirror
4. Door mirror glass 5. Side camera 6. Door mirror base finisher
MARU-H Pawl
