Section 49 (Audio, Visual & Navigation System (Navigation))
>>
System Description
>>
System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram
WARNING:
This page is about a different car, the 2016 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

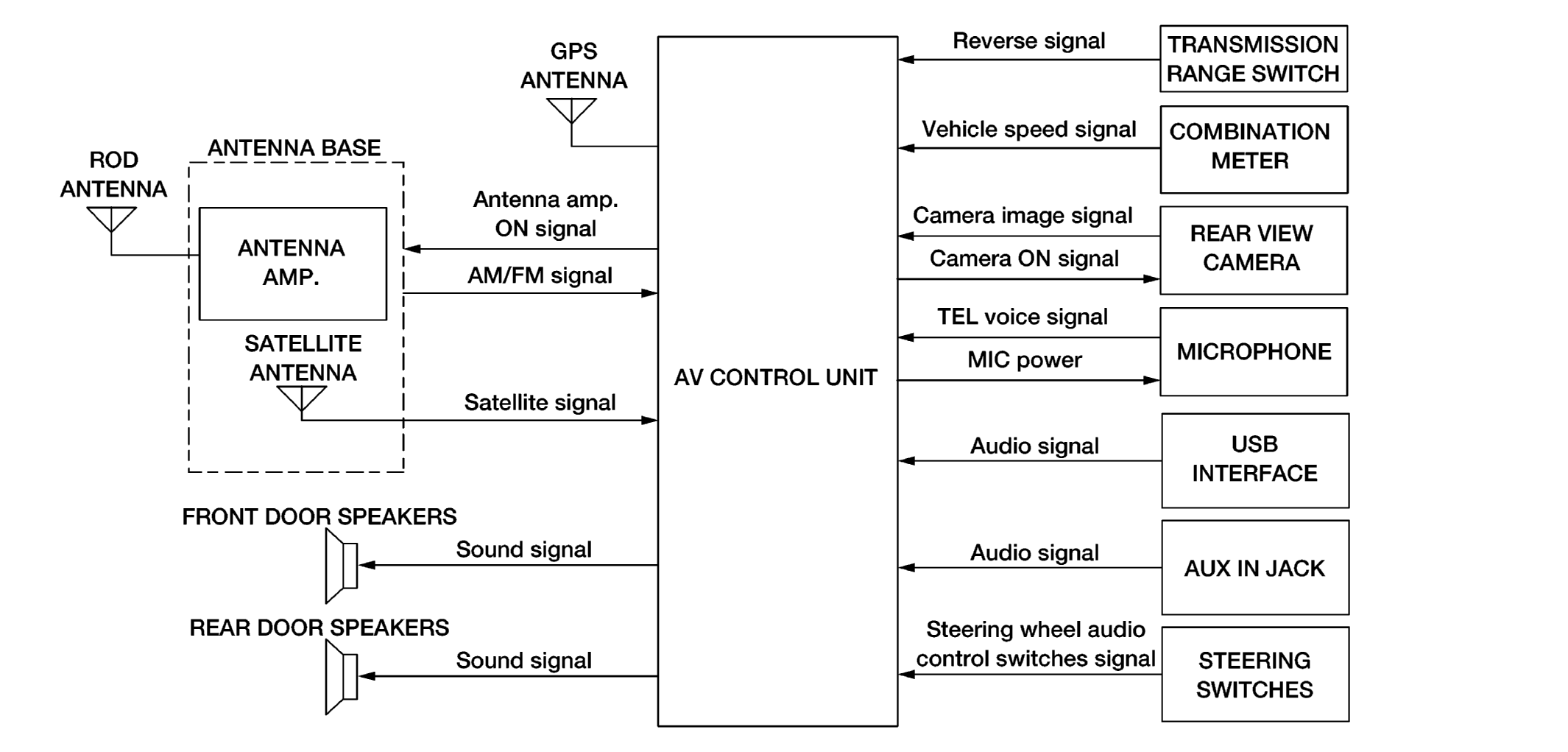

Fig 1: Audio, Visual & Navigation System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
