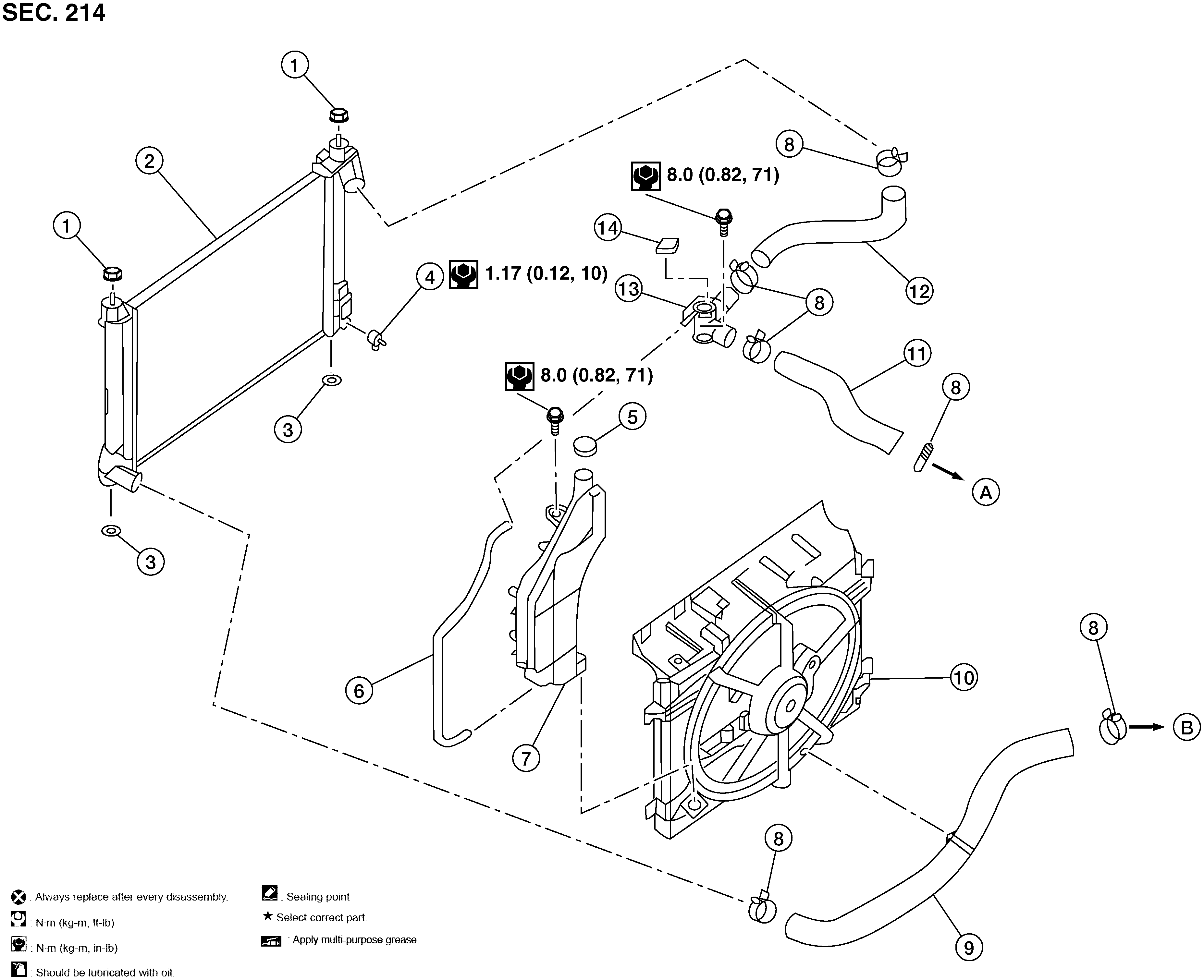

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Mounting rubber (upper) |
2. |
Radiator |
3. |
Mounting rubber (lower) |
| 4. |
Radiator drain plug |
5. |
Reservoir tank cap |
6. |
Reservoir tank hose |
| 7. |
Reservoir tank |
8. |
Clamp |
9. |
Radiator hose (lower) |
| 10. |
Fan shroud and motor assembly |
11. |
Radiator hose (upper) |
12. |
Filler neck hose |
| 13. |
Filler neck |
14. |
Radiator filler cap |
A. |
To water outlet |
| B. |
To water inlet |
|
|
|
|
