Engine Control System: Wiring Diagram

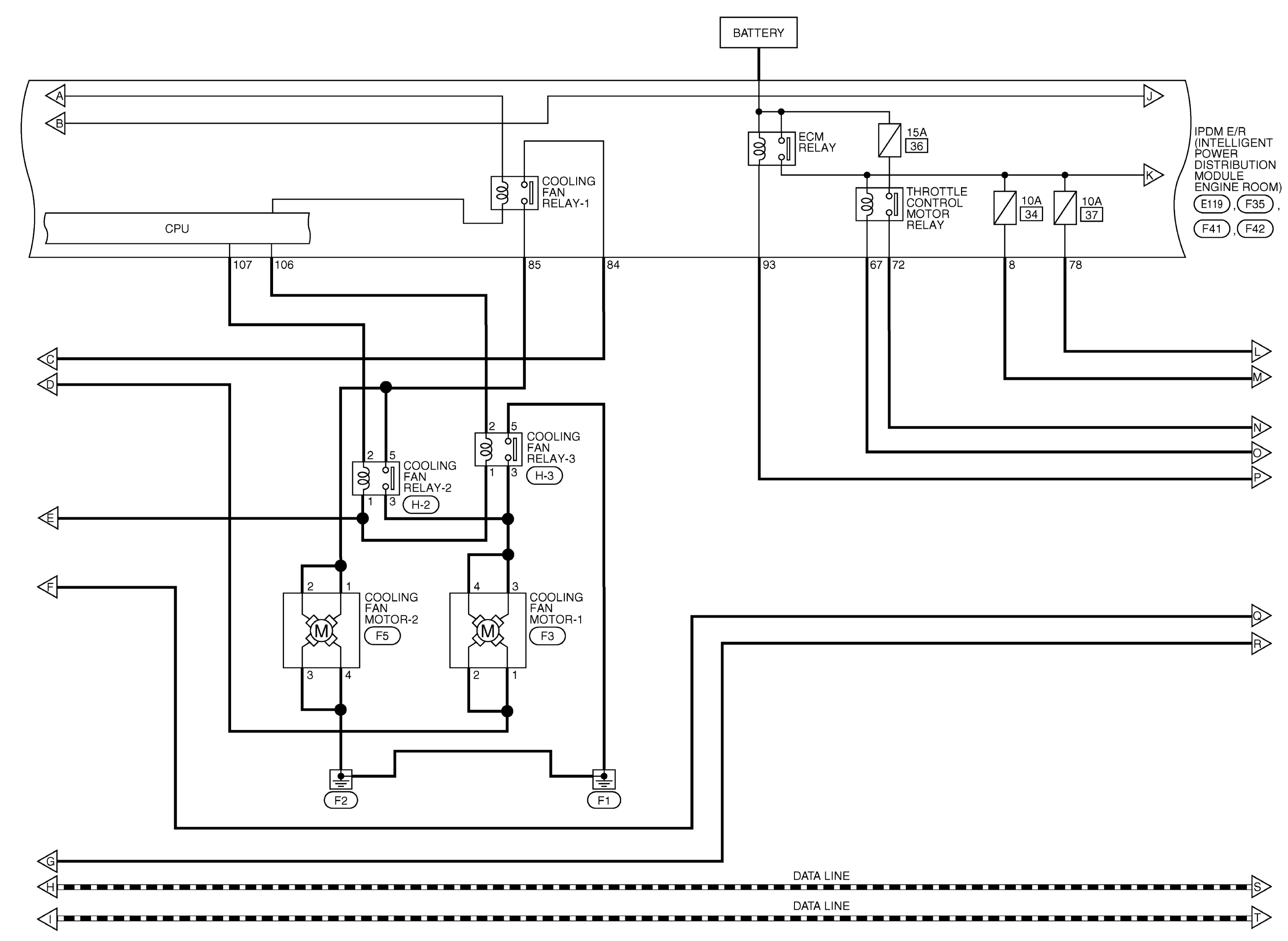

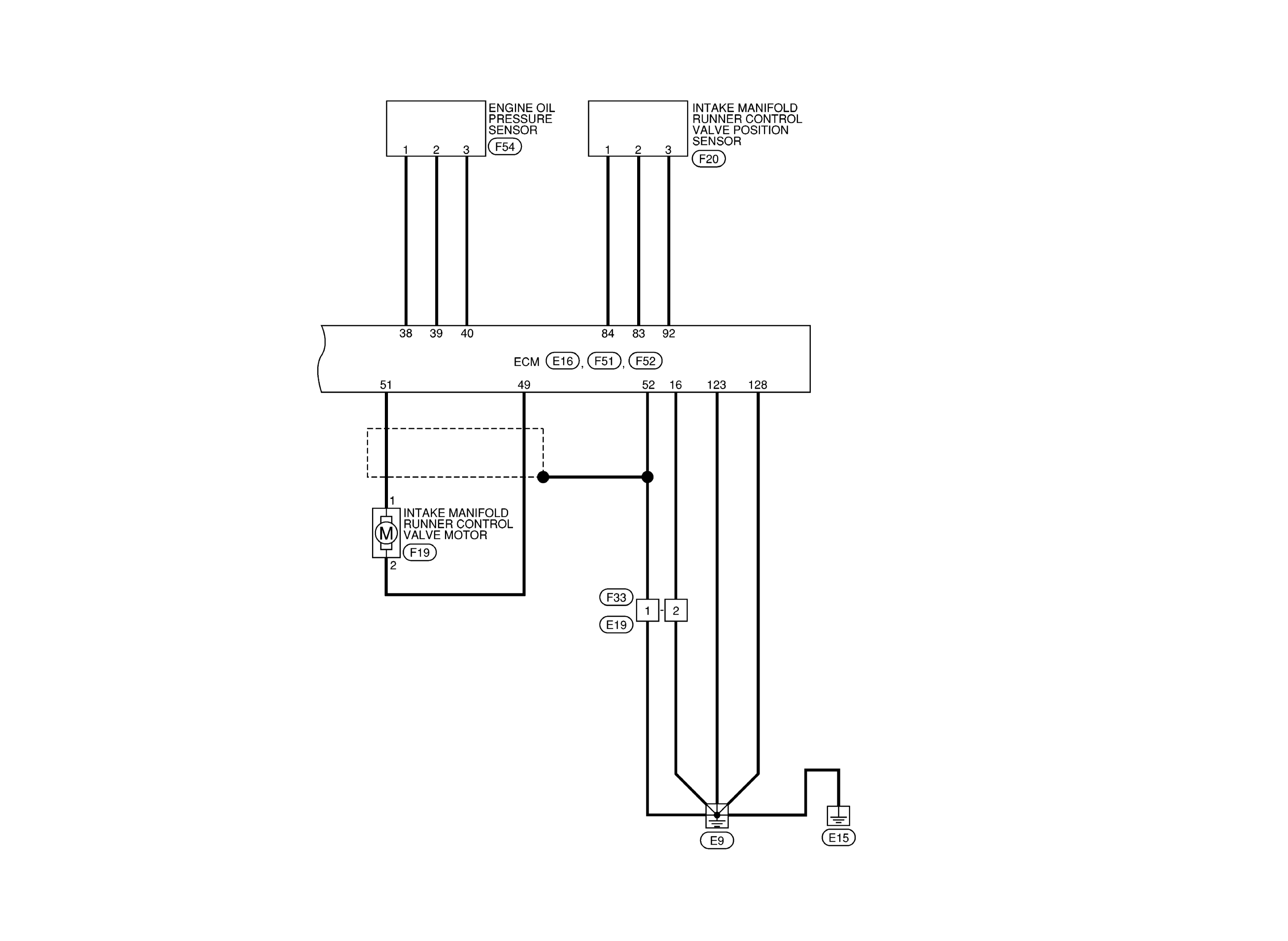

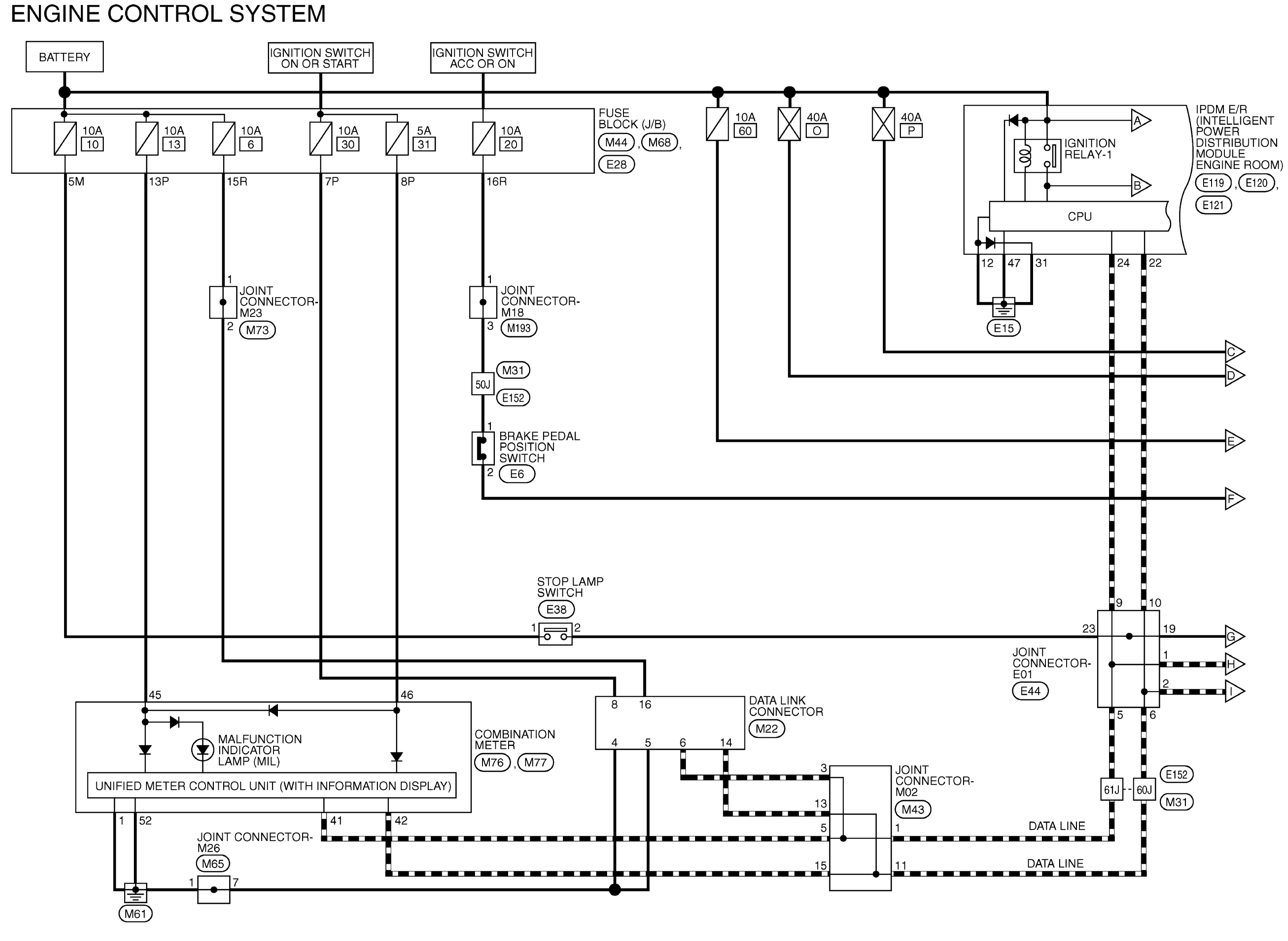

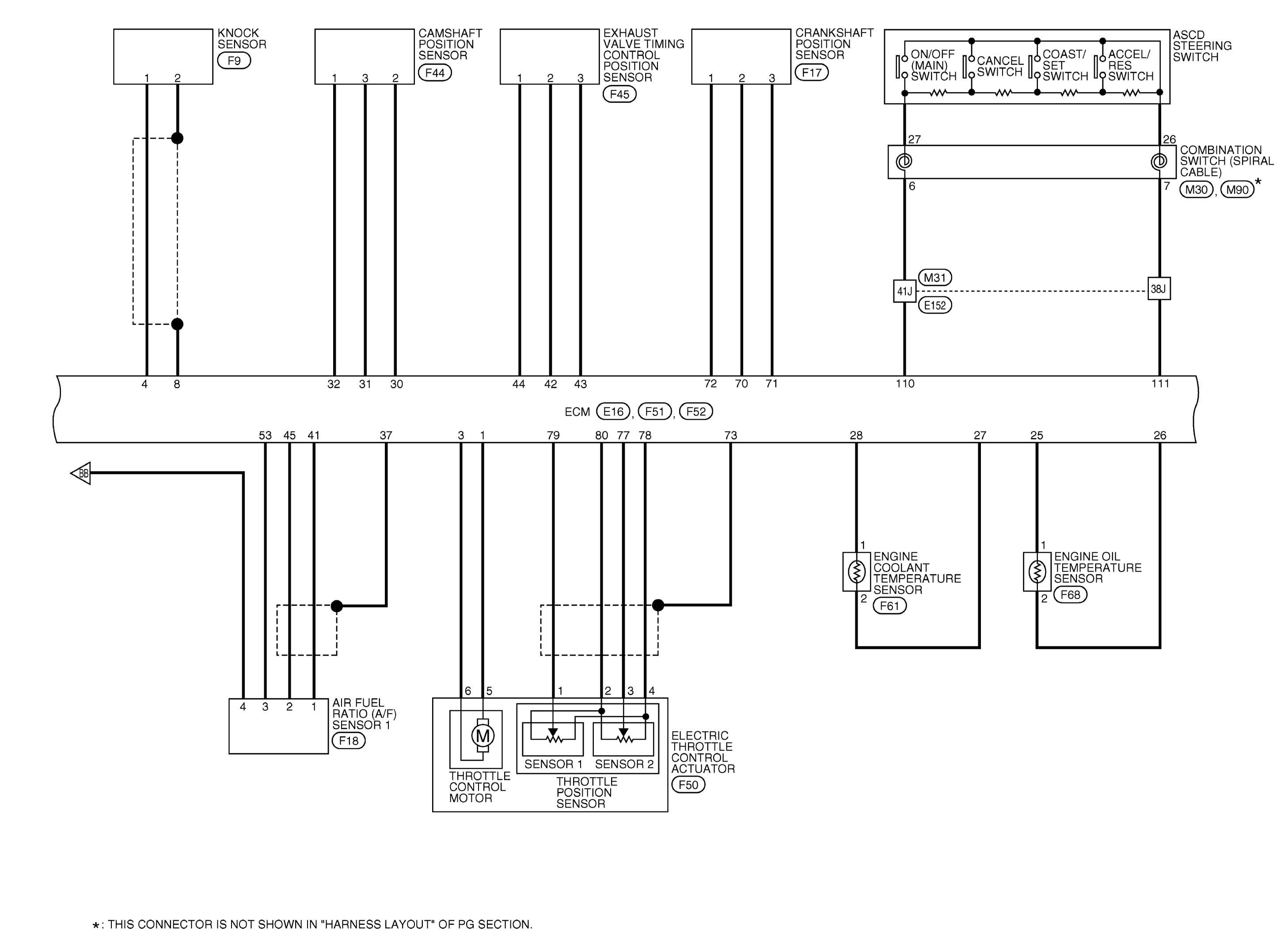

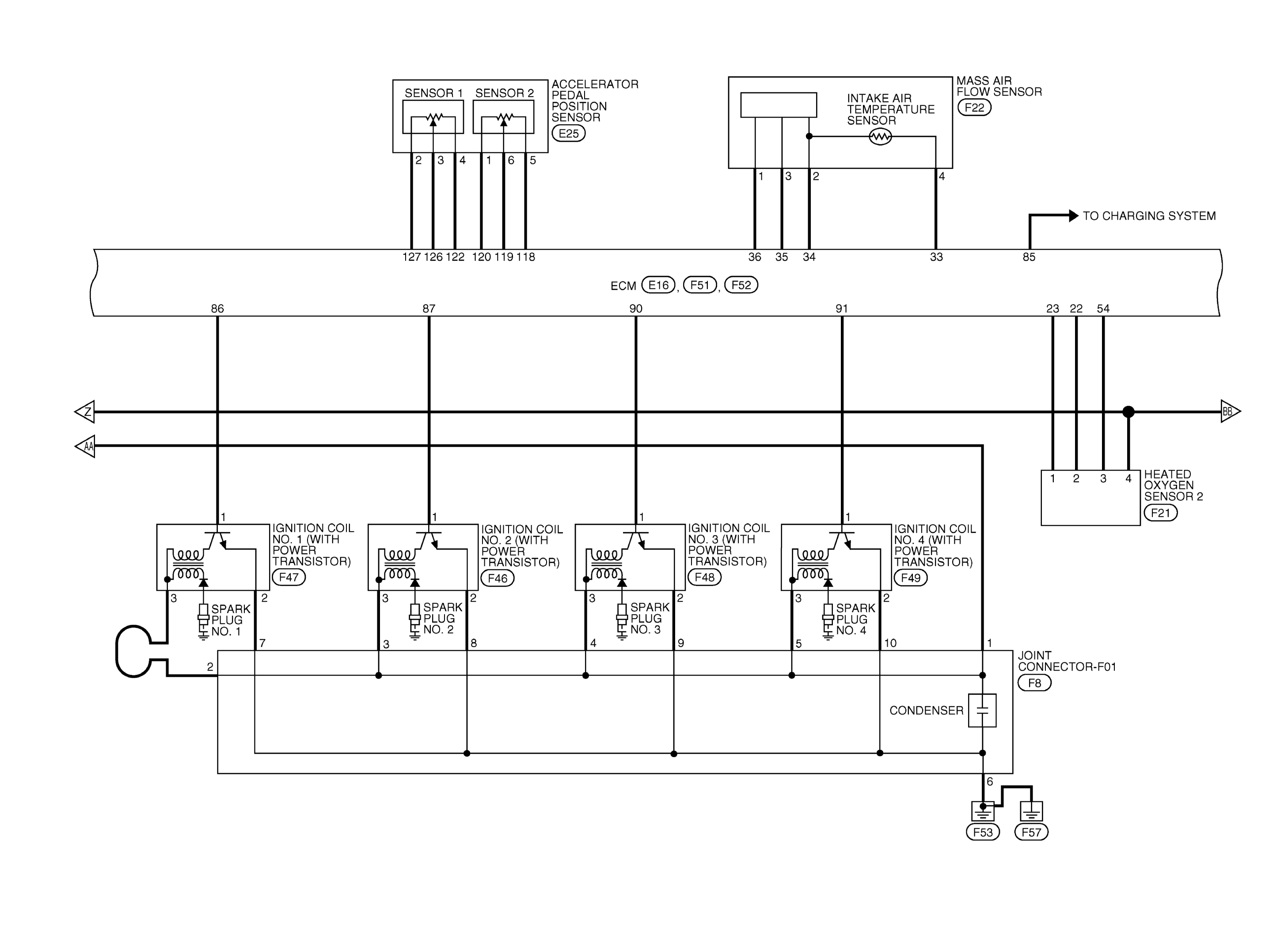

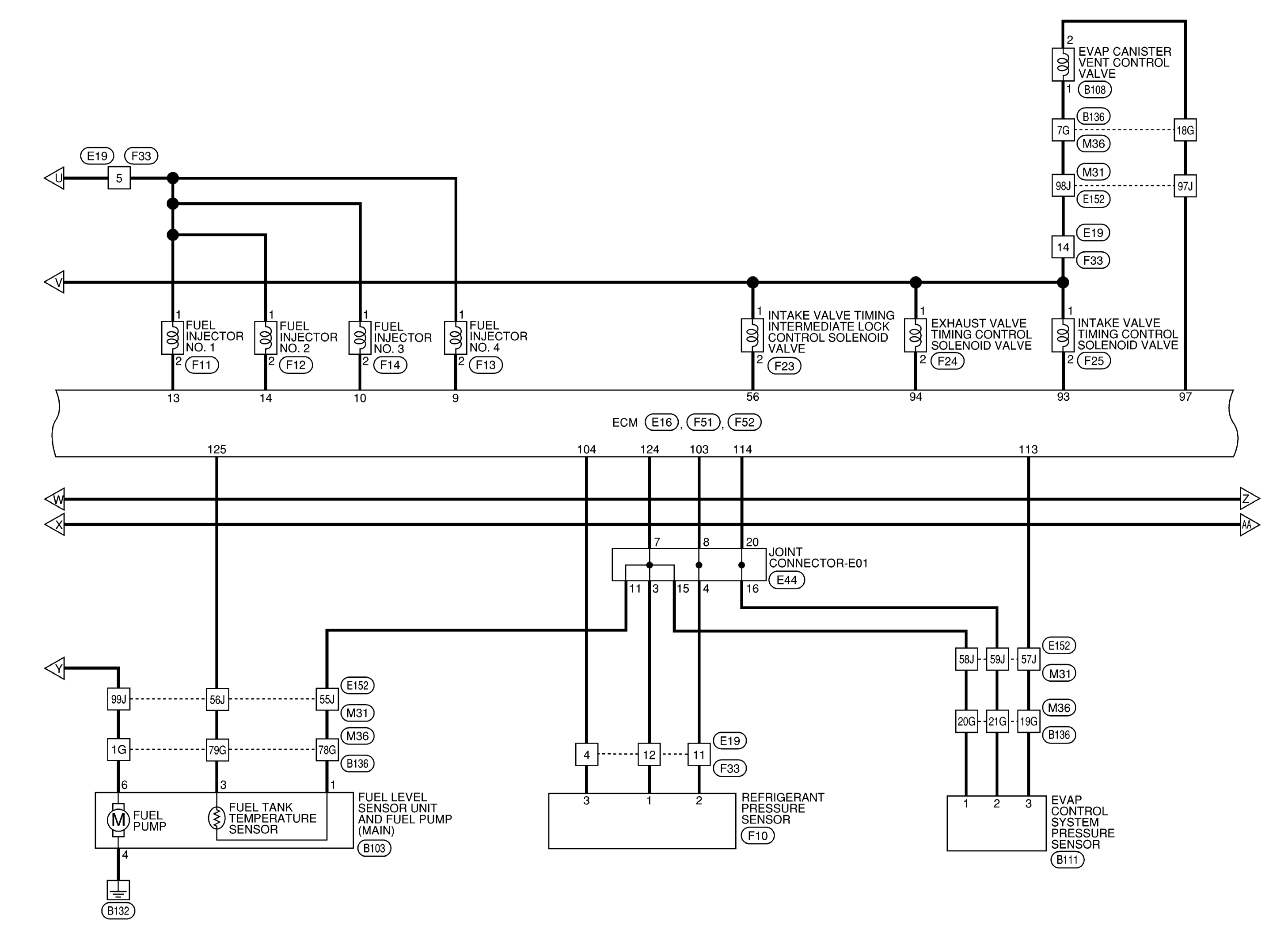

Fig 1: Engine Control System Wiring Diagram (1 Of 7)
Courtesy of NISSAN NORTH AMERICA, INC.

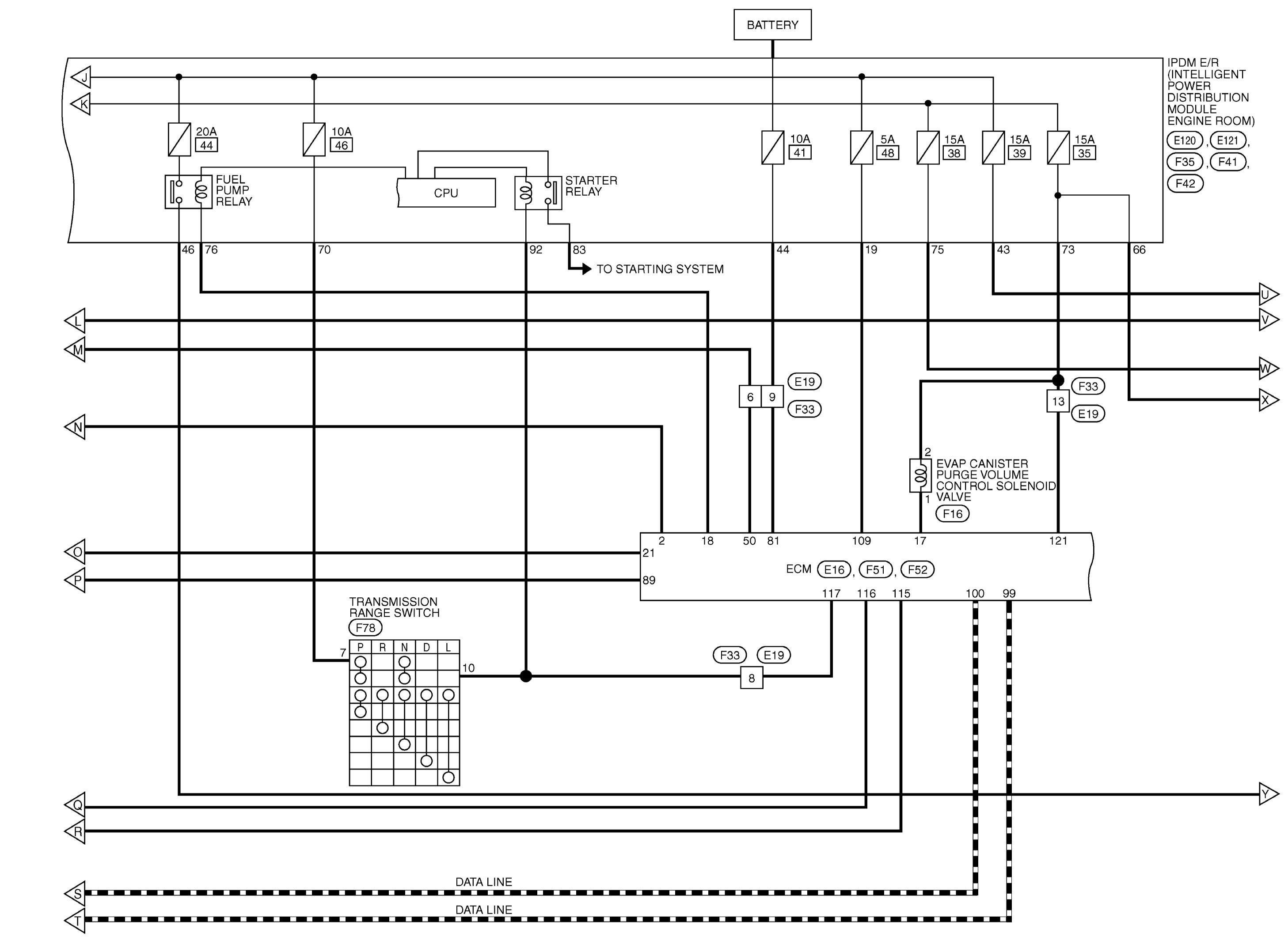

Fig 2: Engine Control System Wiring Diagram (2 Of 7)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Engine Control System Wiring Diagram (3 Of 7)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Engine Control System Wiring Diagram (4 Of 7)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Engine Control System Wiring Diagram (5 Of 7)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 6: Engine Control System Wiring Diagram (6 Of 7)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Engine Control System Wiring Diagram (7 Of 7)
Courtesy of NISSAN NORTH AMERICA, INC.

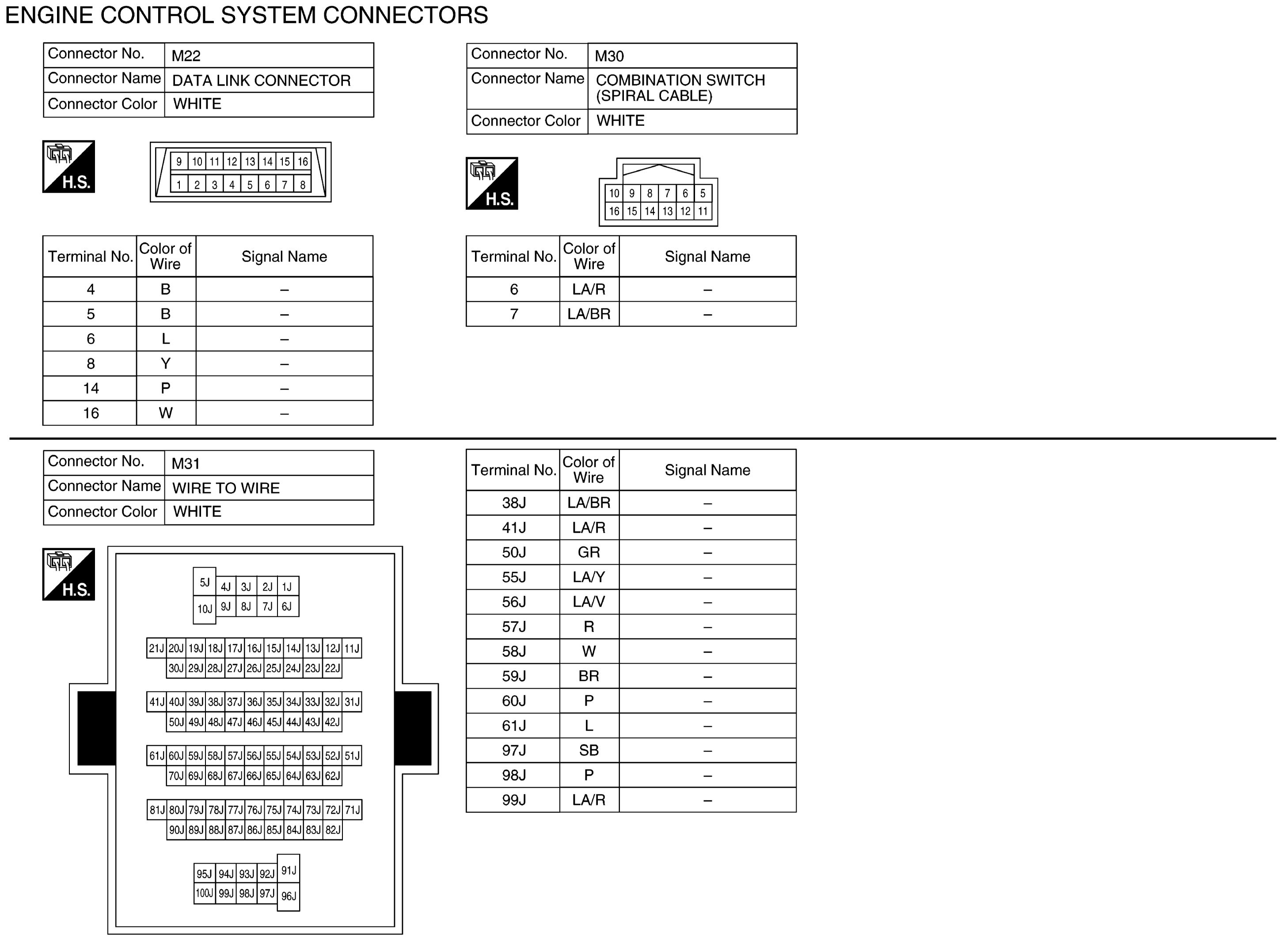

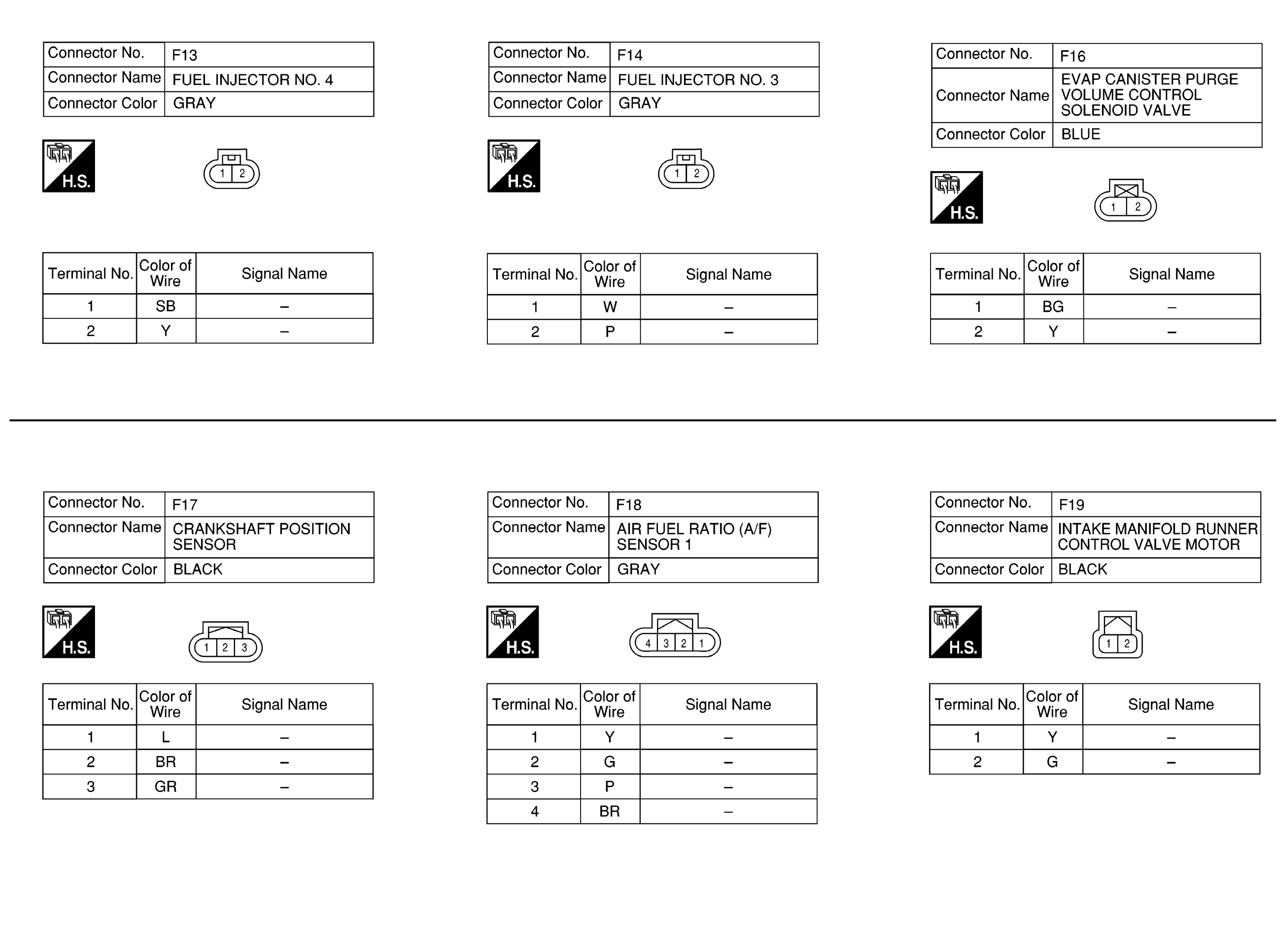

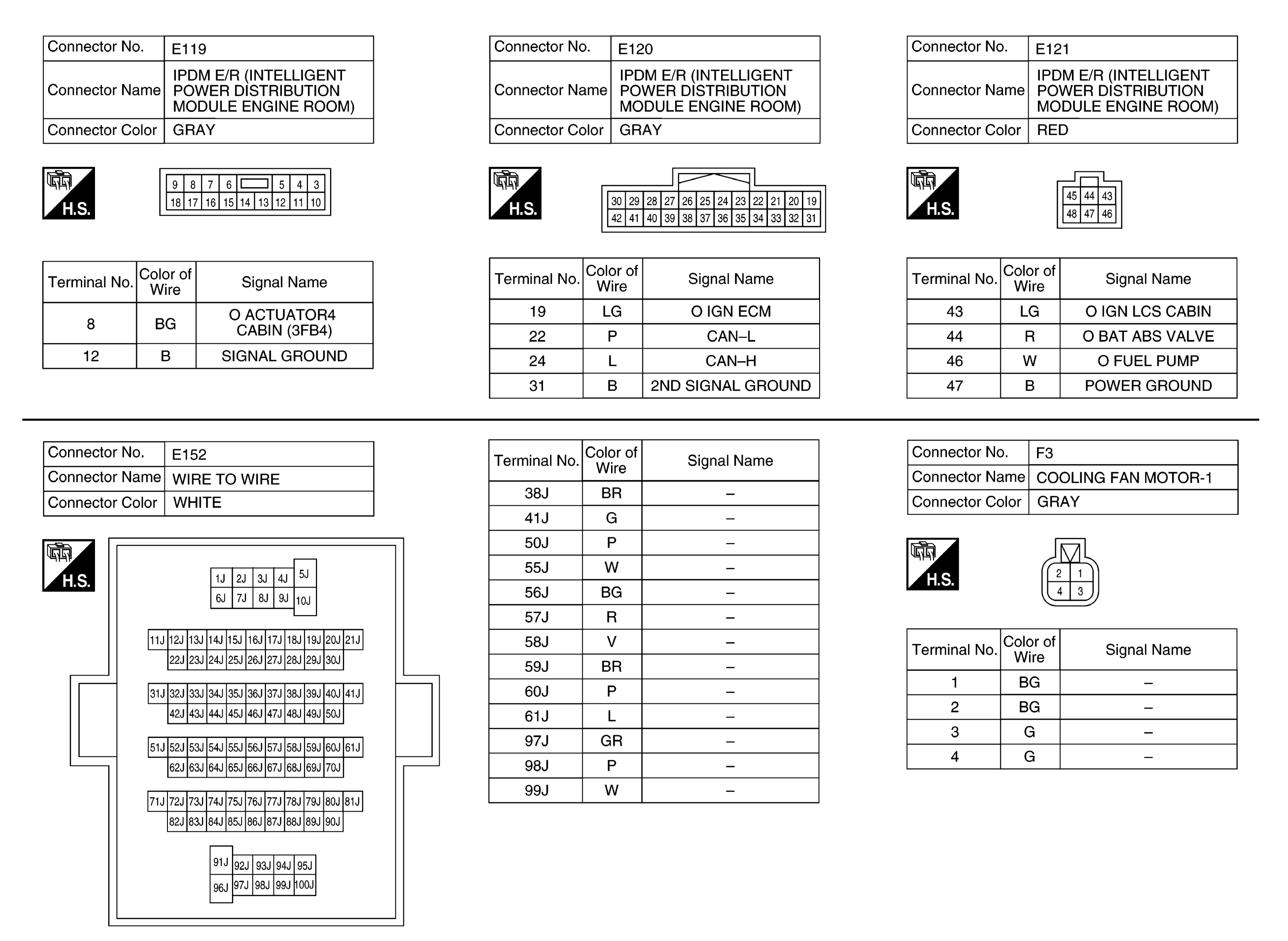

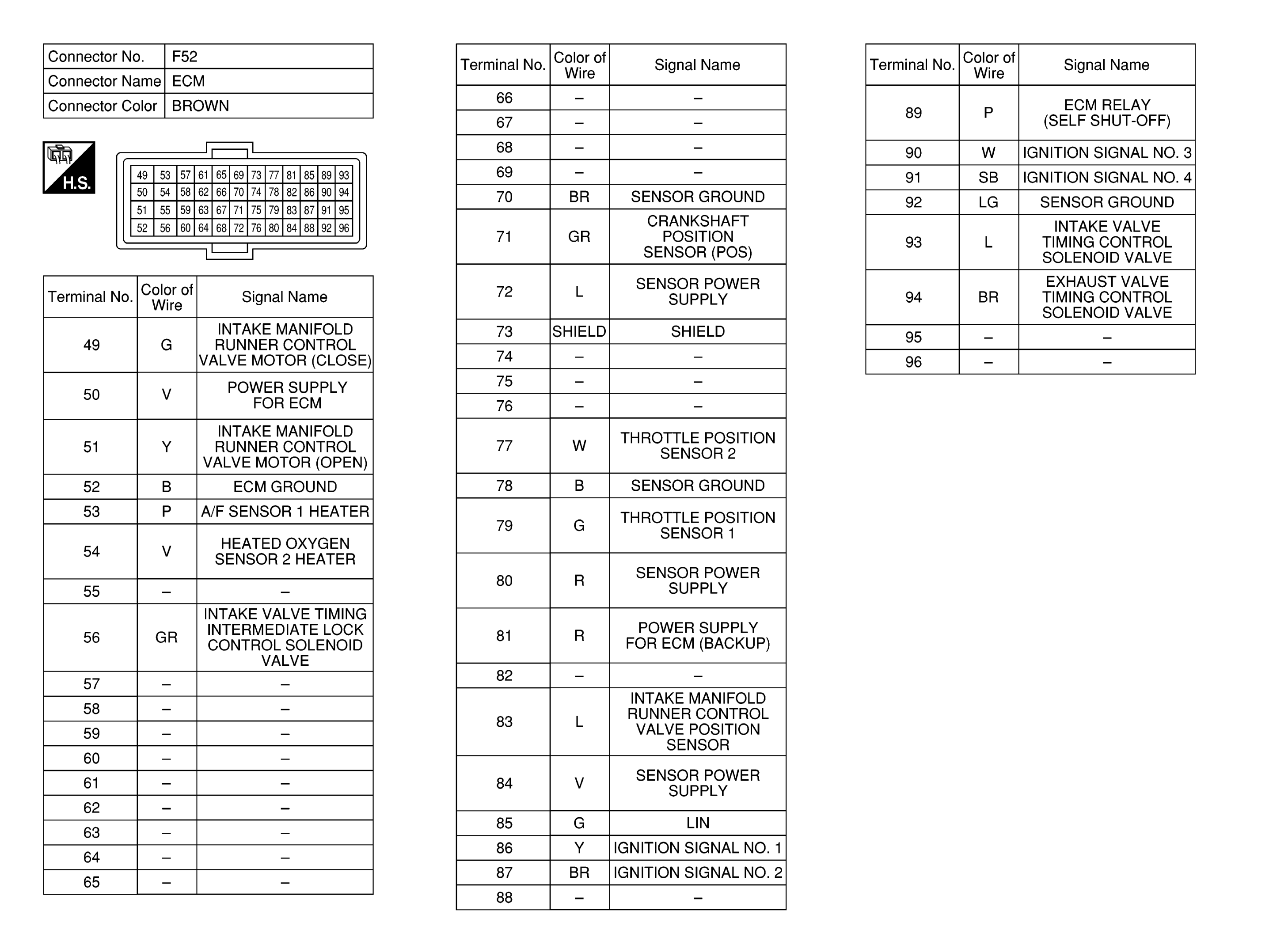

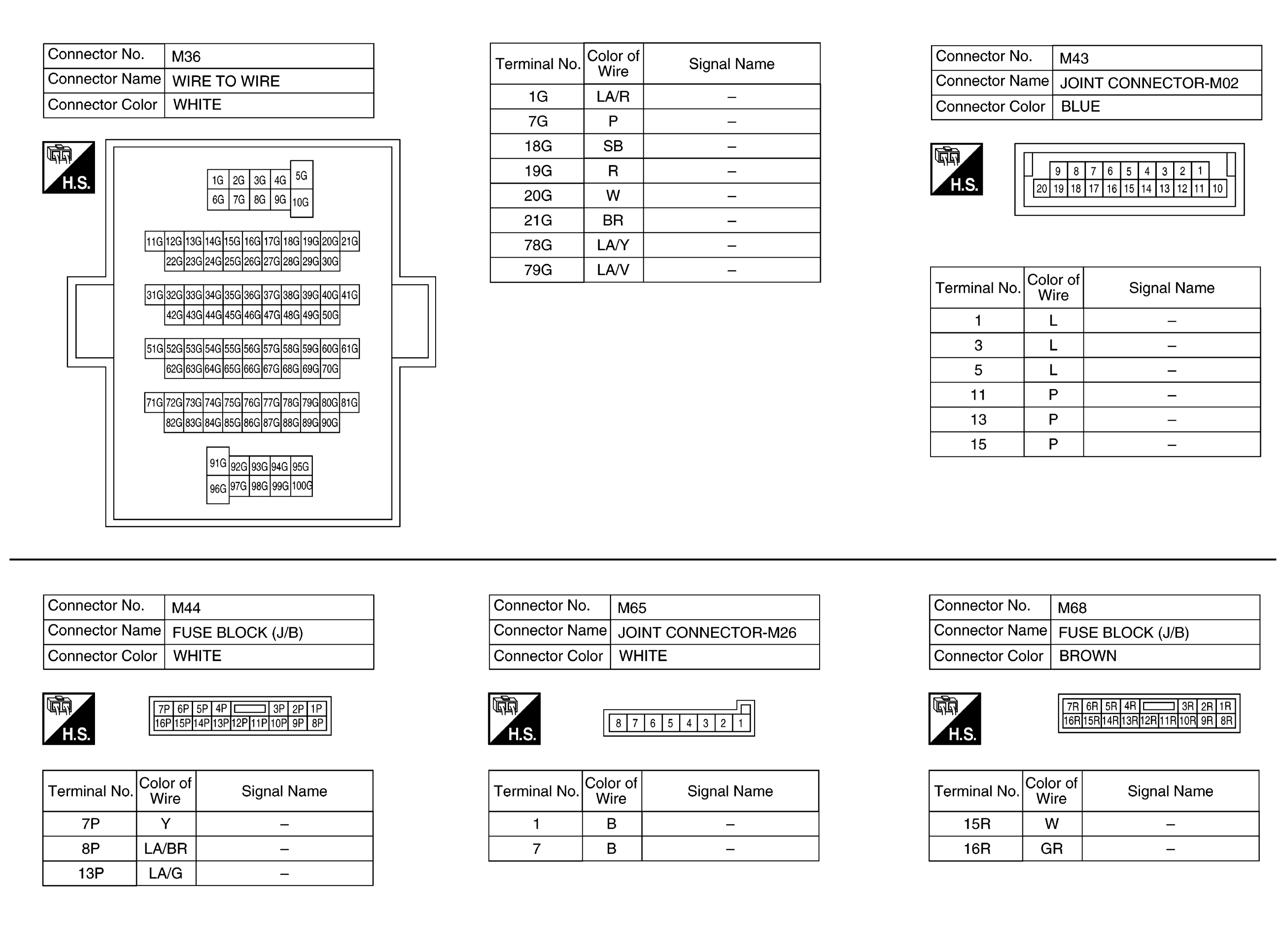

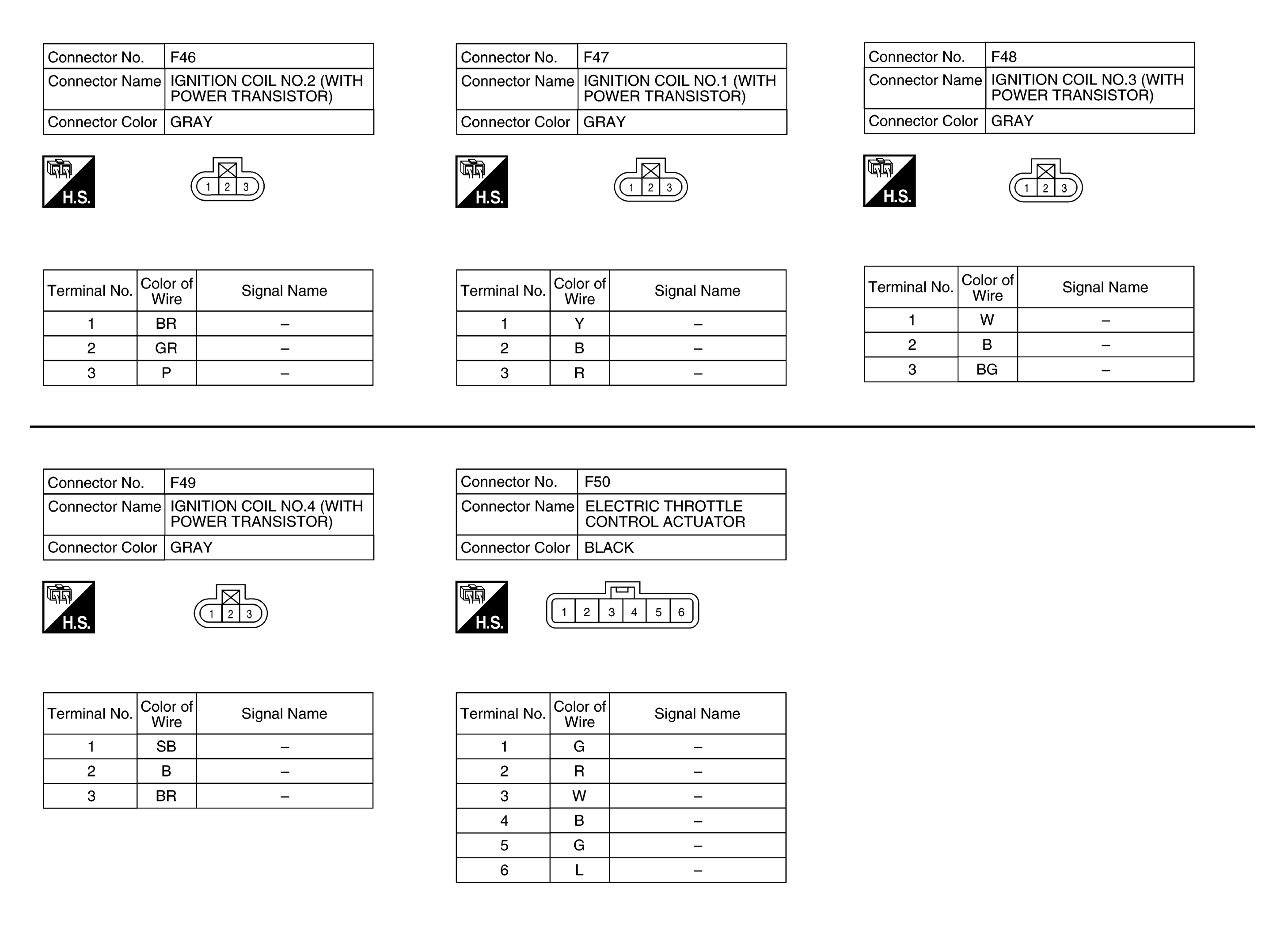

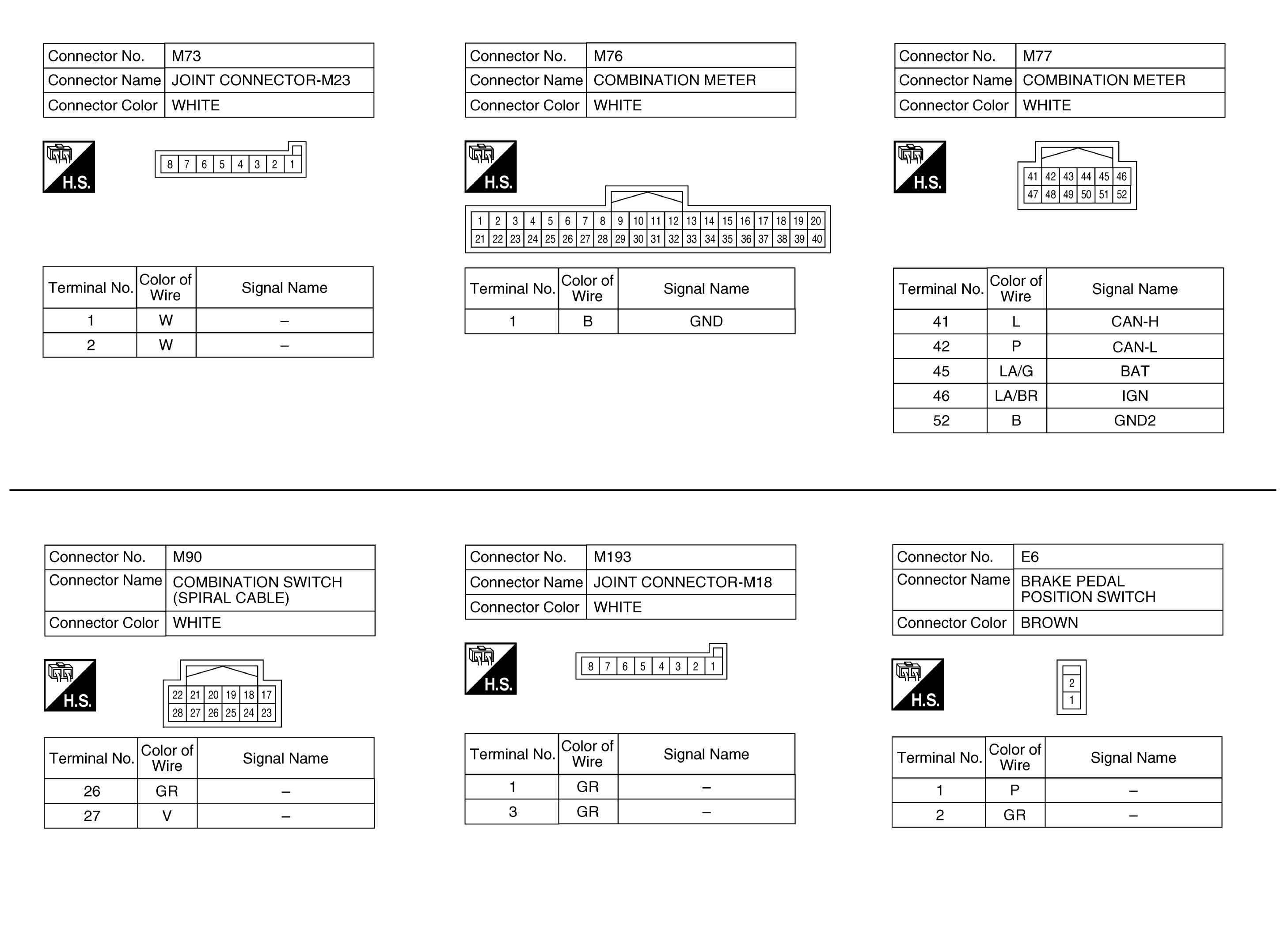

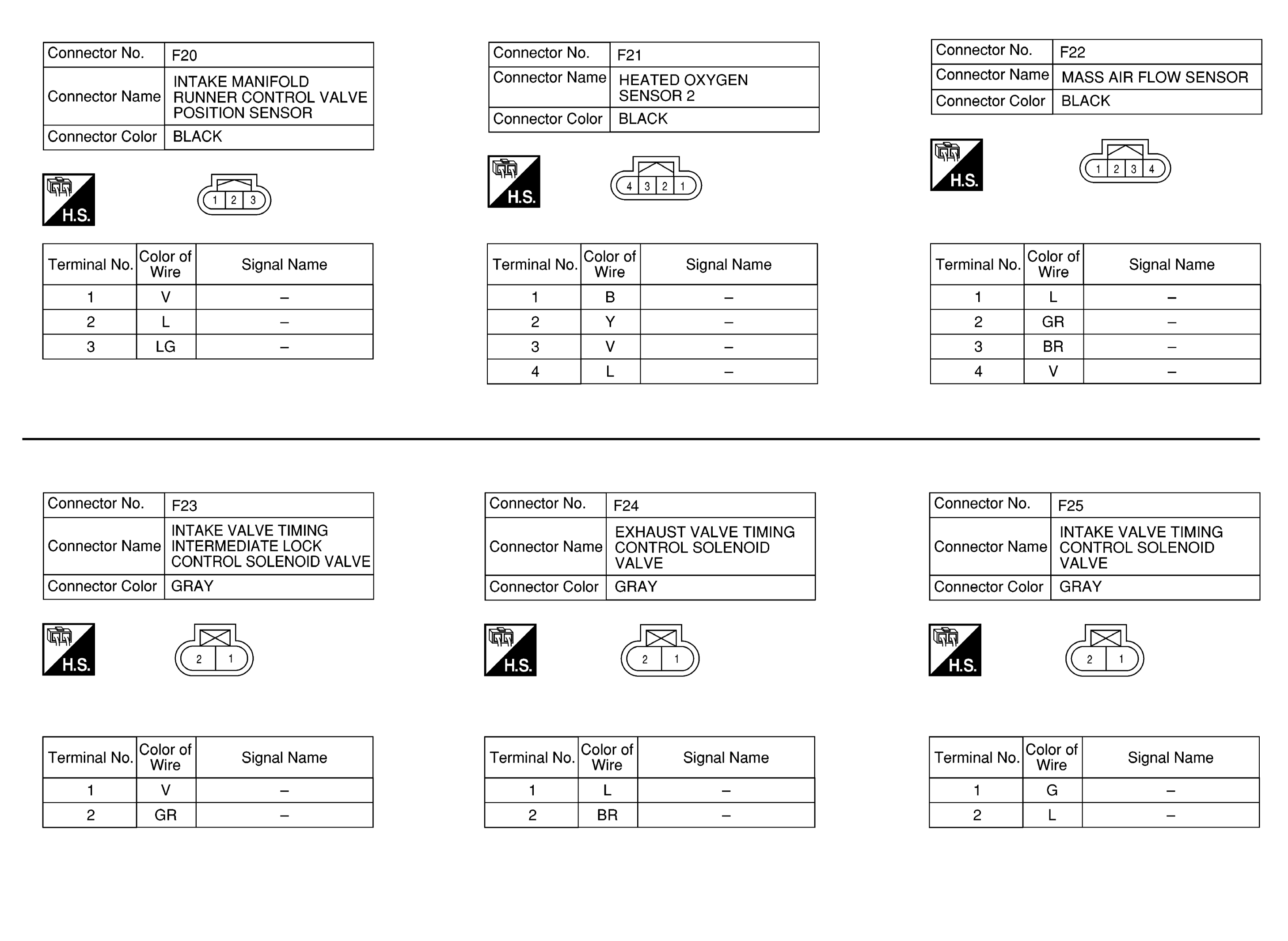

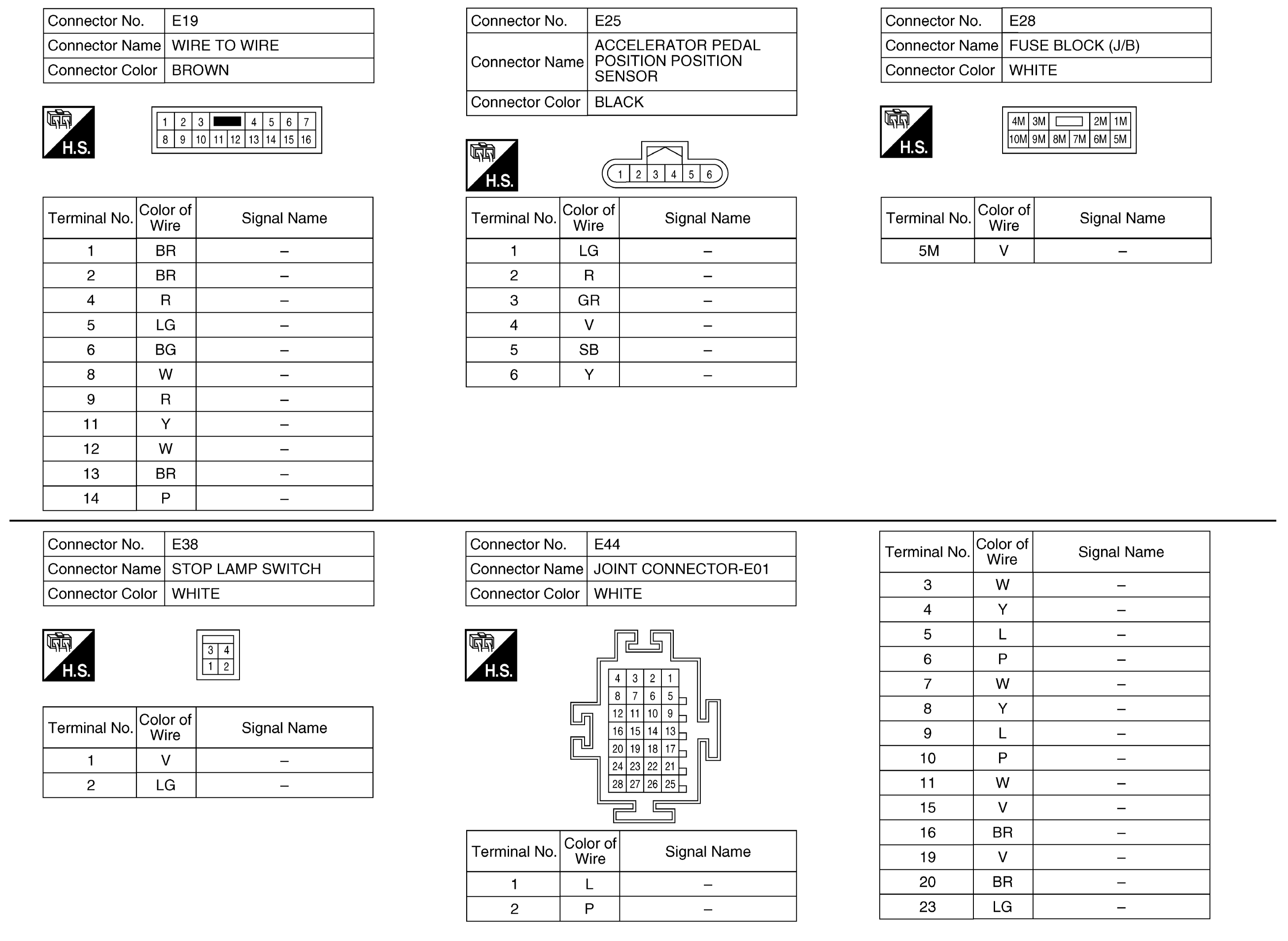

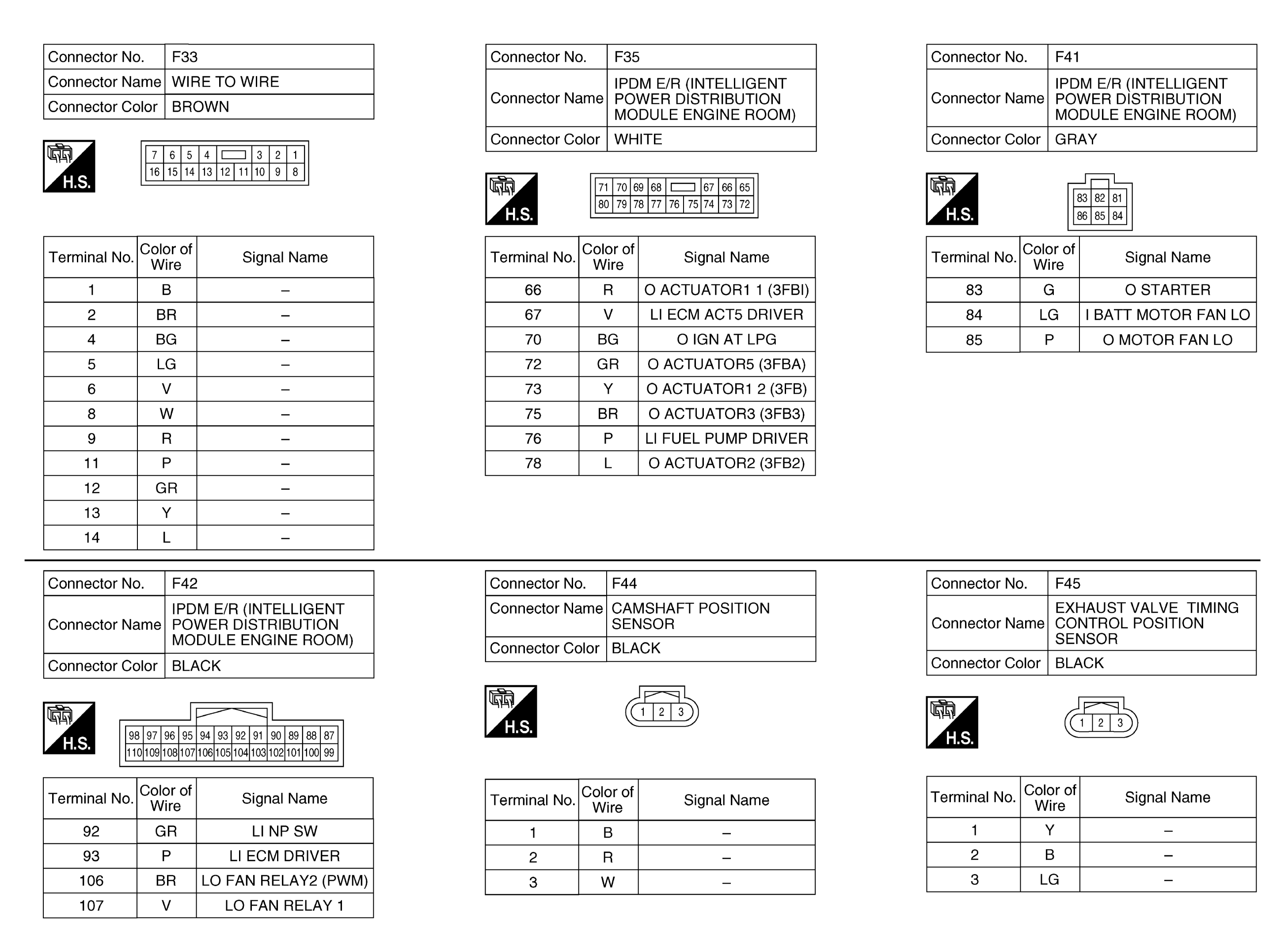

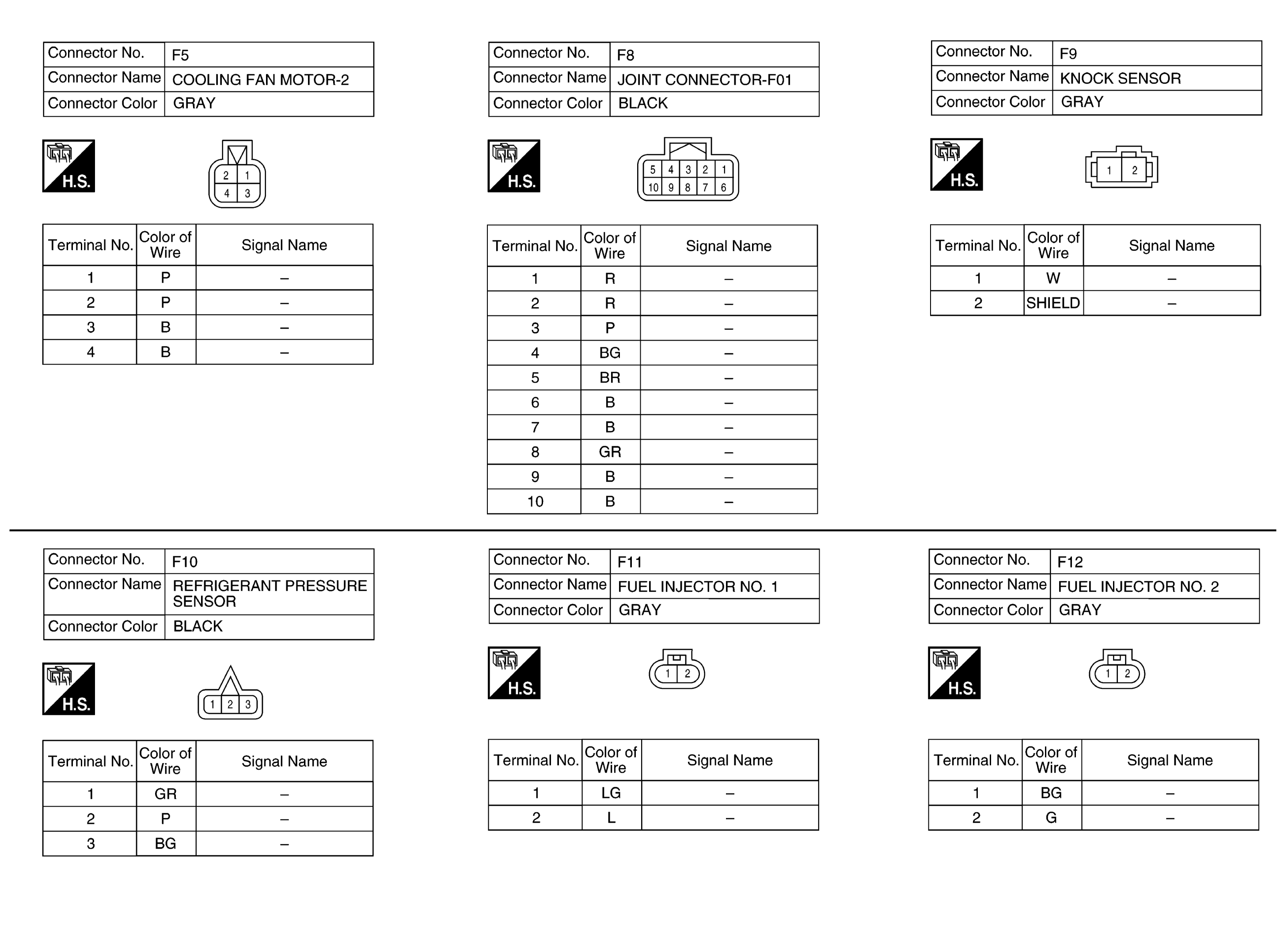

Fig 8: Engine Control System Connectors (1 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Engine Control System Connectors (2 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 10: Engine Control System Connectors (3 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 11: Engine Control System Connectors (4 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 12: Engine Control System Connectors (5 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 13: Engine Control System Connectors (6 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 14: Engine Control System Connectors (7 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 15: Engine Control System Connectors (8 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 16: Engine Control System Connectors (9 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 17: Engine Control System Connectors (10 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 18: Engine Control System Connectors (11 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 19: Engine Control System Connectors (12 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 20: Engine Control System Connectors (13 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 21: Engine Control System Connectors (14 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 22: Engine Control System Connectors (15 Of 15)
Courtesy of NISSAN NORTH AMERICA, INC.
