Exploded View With Torque Specifications

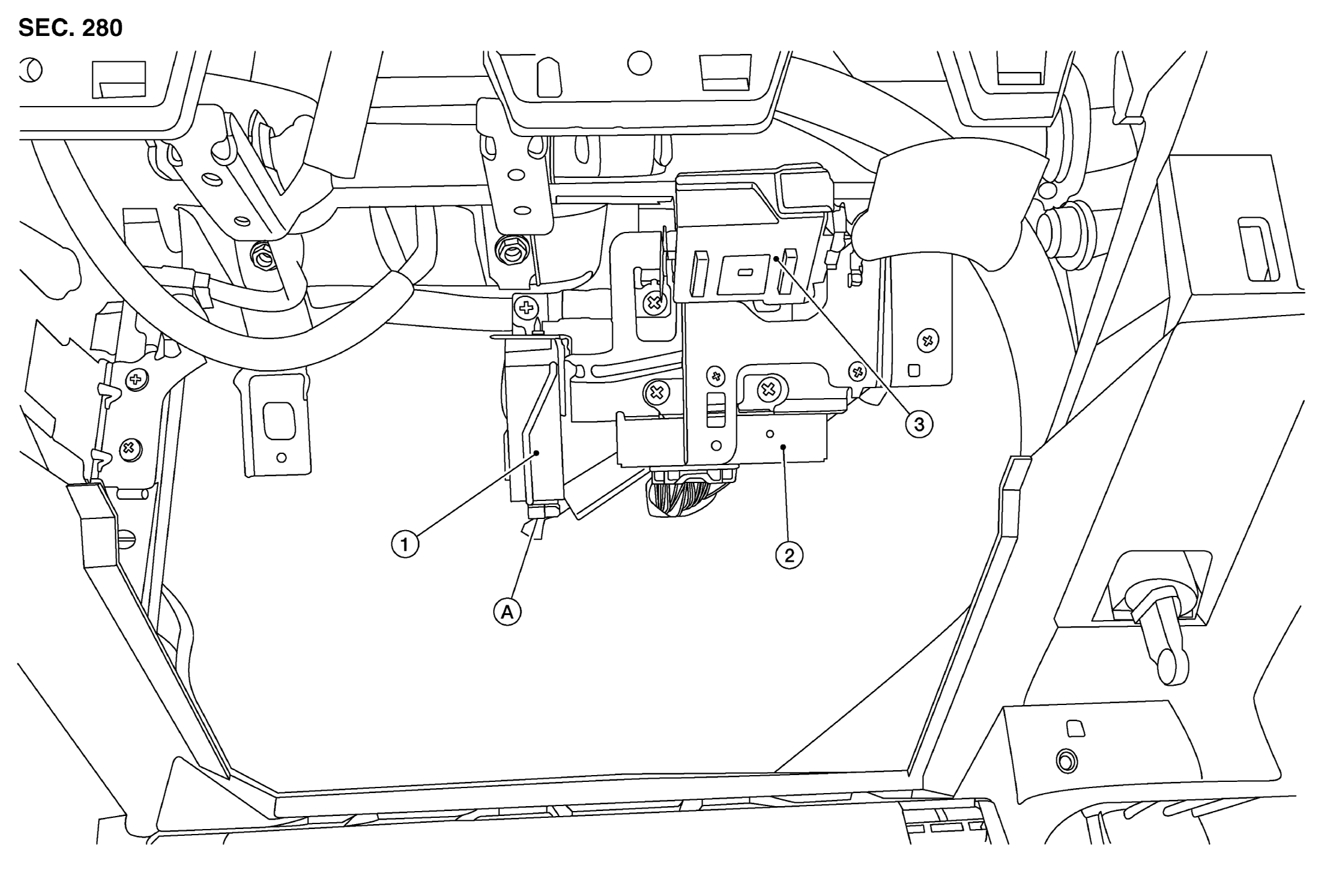

Fig 1: Warning Systems Buzzer
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Warning systems buzzer
2.
Around view module (if equipped)
3.
Chassis control module
A.
Harness connector
