Exploded View With Torque Specifications

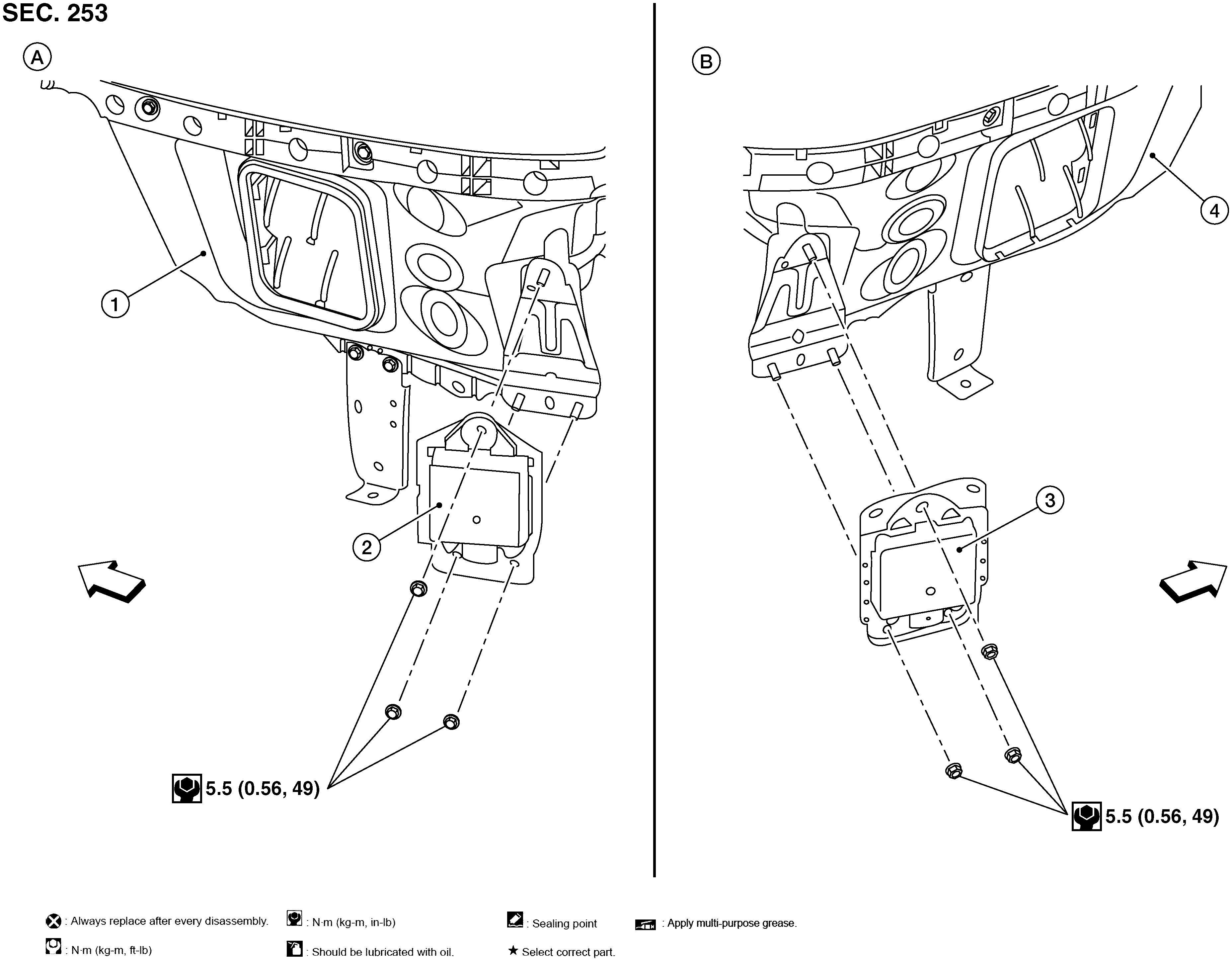

Fig 1: Exploded View Of Sde Radar With Torque Specifications
GNSALOIA0312ZZ-312Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear fender (LH) 2. Side radar (LH) 3. Side radar (RH)
4. Rear fender (RH) A. LH side B. RH side
ARROW Front
