Engine Lubrication System
>>
Removal And Installation
>>
Oil Cooler
>>
Exploded View With Torque Specifications
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View With Torque Specifications

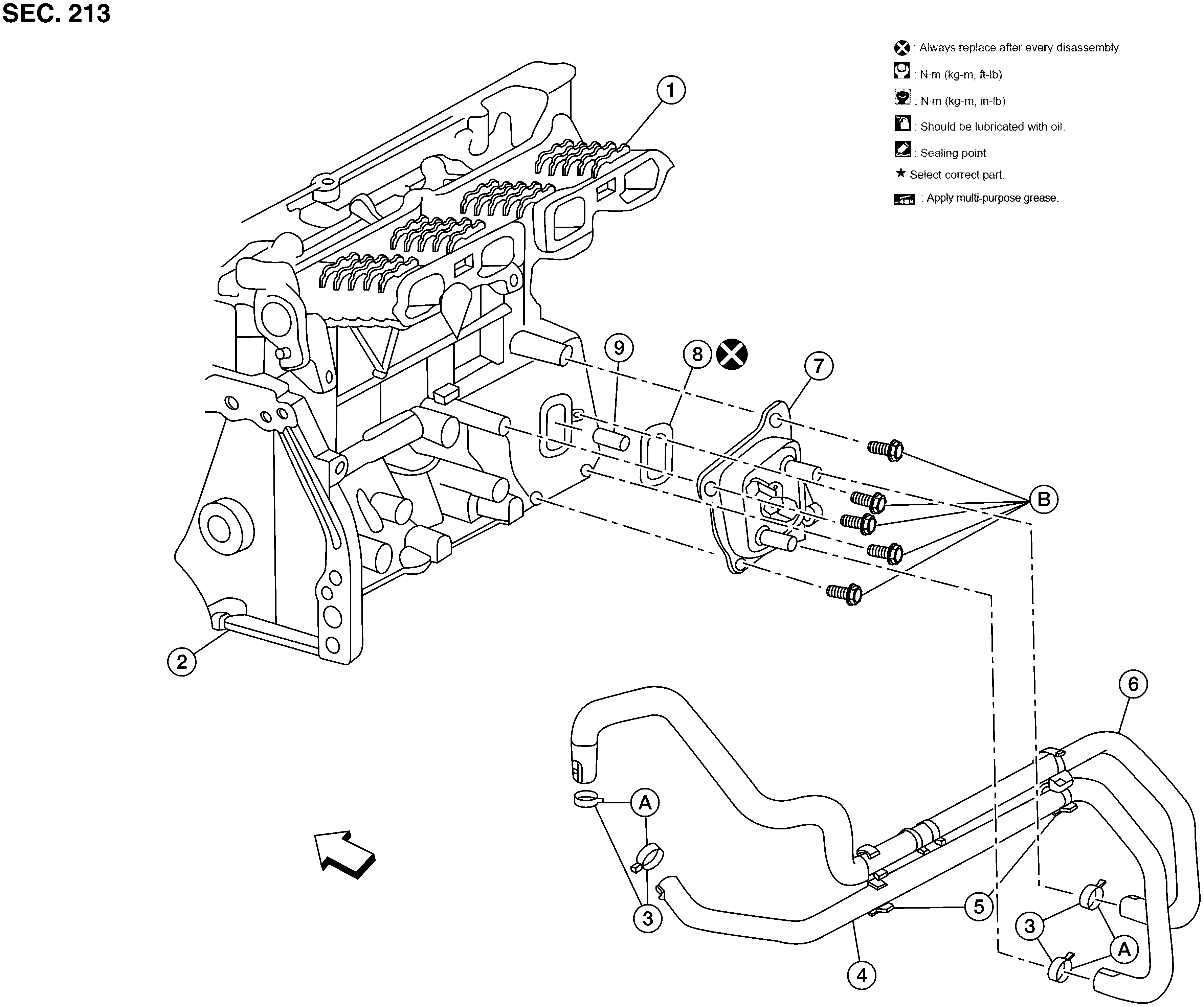

Fig 1: Exploded View Of Engine Oil Cooler
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Intake manifold
2.
Cylinder block
3.
Clamp
4.
Water hose (A)
5.
Water hose clip
6.
Water hose (B)
7.
Oil cooler
8.
Gasket
9.
Oil cooler relief valve
Front
A.
Refer to INSTALLATION
B.
Refer to INSTALLATION
