Exploded View With Torque Specifications
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View With Torque Specifications

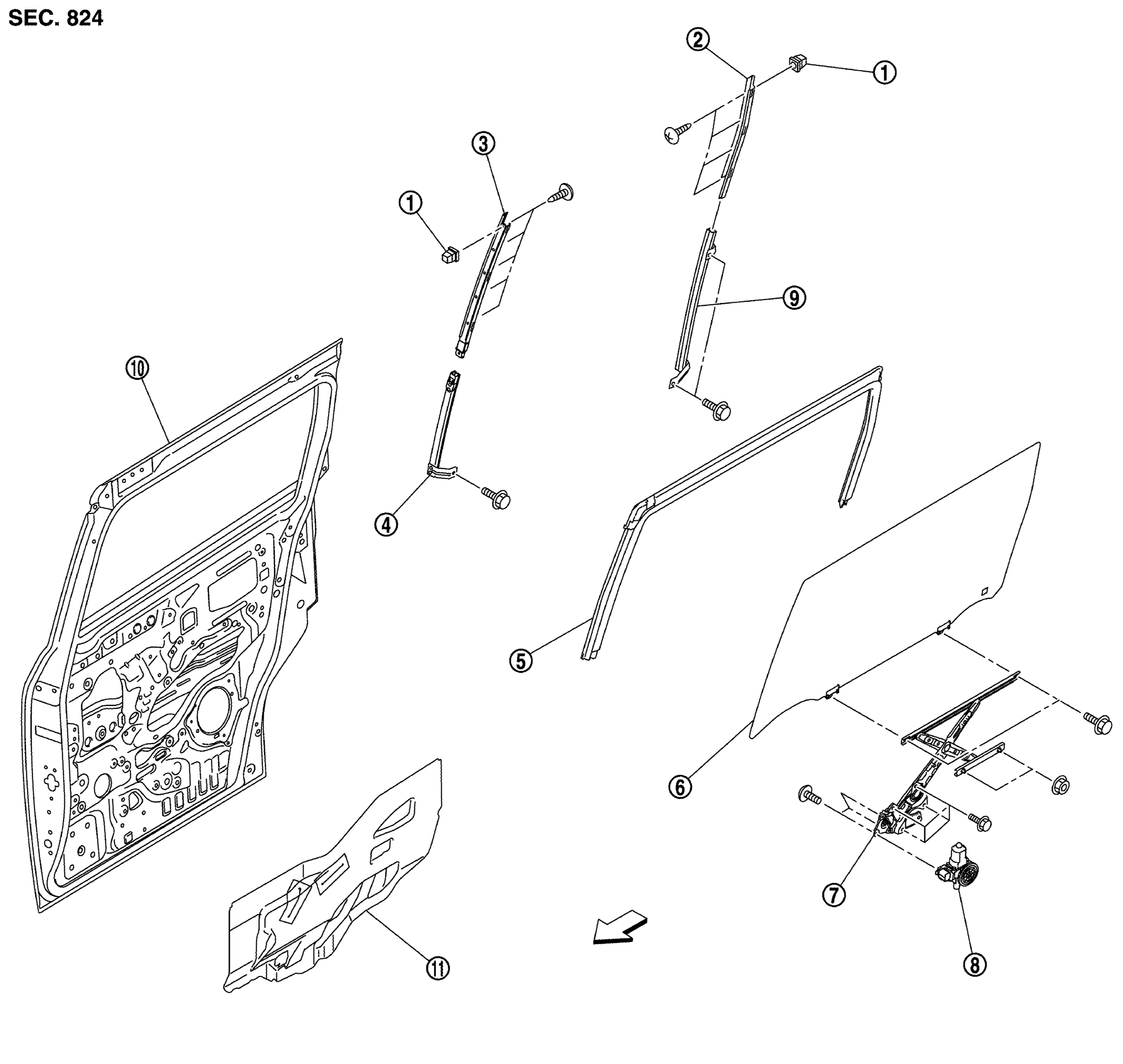

Fig 1: Slide Door Glass
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Grommet
2.
Door upper sash (rear)
3.
Door upper sash (front)
4.
Door lower sash (front)
5.
Door glass run
6.
Slide door glass
7.
Regulator assembly
8.
Power window motor
9.
Door lower sash (rear)
10.
Slide door panel
11.
Sealing screen
: Vehicle front
