Exploded View With Torque Specifications

NORMAL ROOF

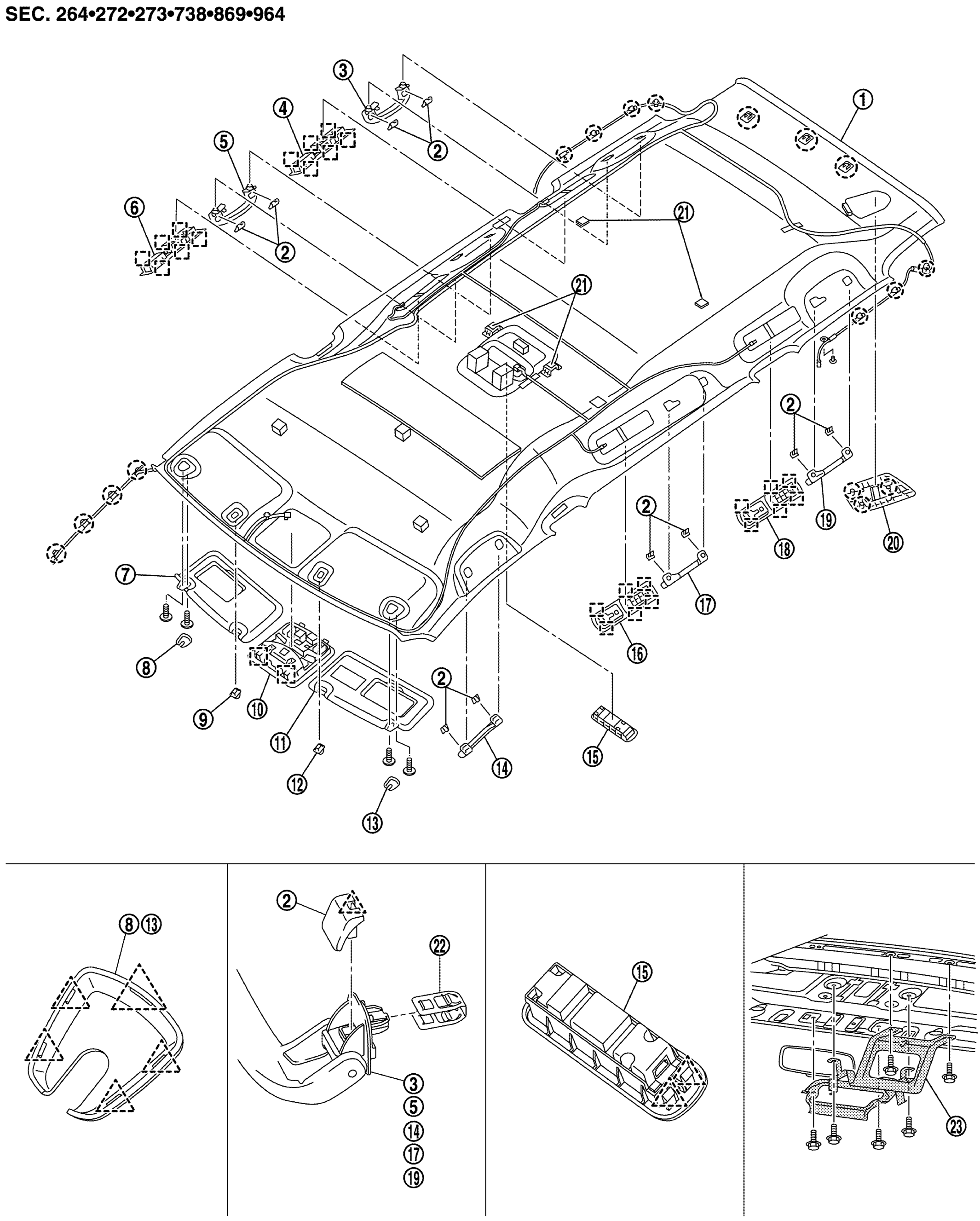

Fig 1: Exploded View Of Headlining (Normal Roof)

GNSJMJIA4906ZZ-906

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headlining assembly	2.	Assist grip cap	3.	Third assist grip RH
4.	Rear ventilator grille B RH	5.	Second assist grip RH	6.	Rear ventilator grille A RH
7.	Sun visor assembly RH	8.	Sun visor cover RH	9.	Sun visor holder RH
10.	Map lamp assembly	11.	Sun visor assembly LH	12.	Sun visor holder LH
13.	Sun visor cover LH	14.	Front assist grip	15.	Rear A/C control
16.	Rear ventilator grille A LH	17.	Second assist grip LH	18.	Rear ventilator grille B LH
19.	Third assist grip LH	20.	Seat belt finisher	21.	Dual lock fastener
22.	Metal clip	23.	Map lamp bracket
	: Clip
	: Pawl
	: Metal clip

SUNROOF

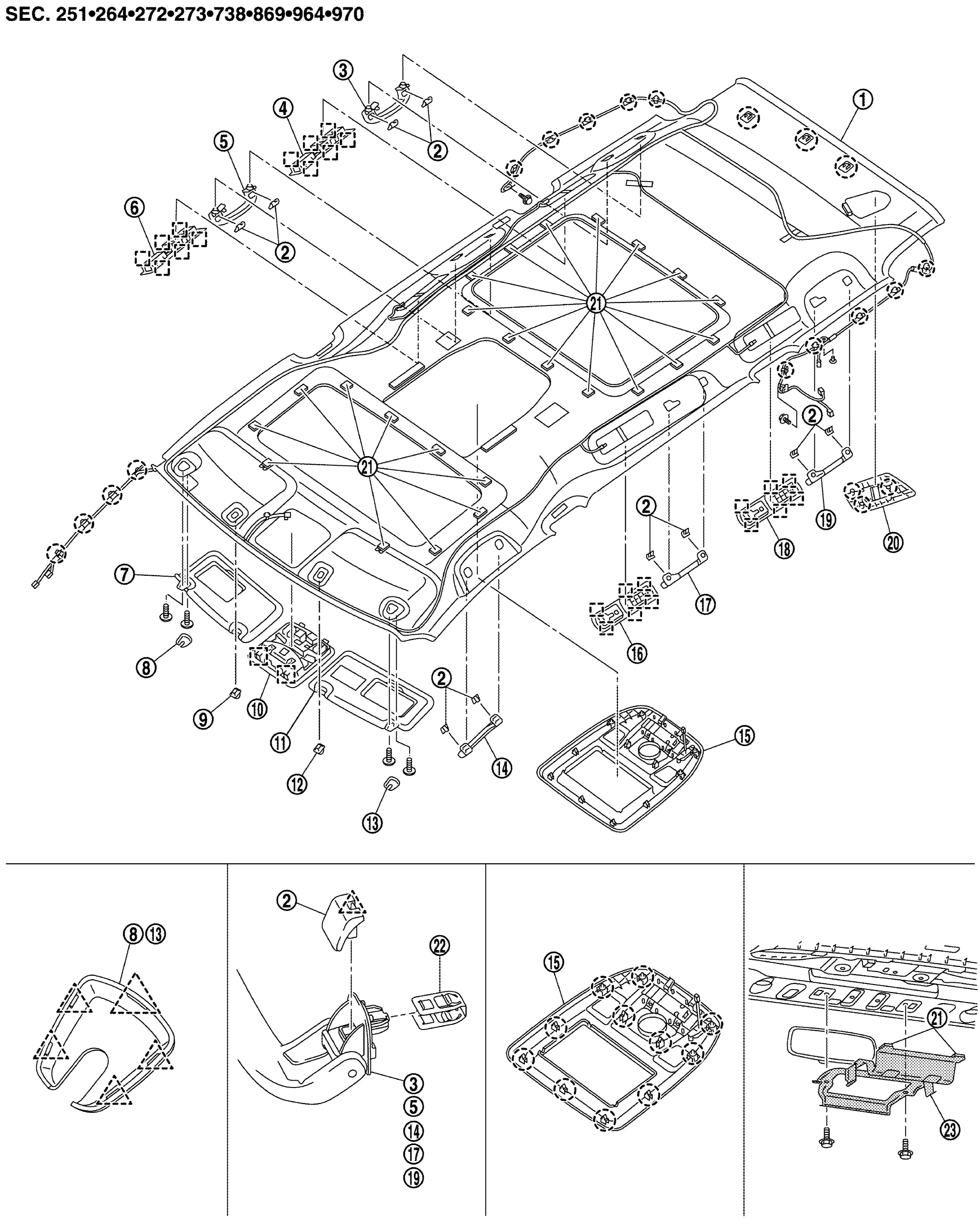

Fig 2: Exploded View Of Headlining (Sunroof)

GNSJMJIA4907ZZ-907

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headlining assembly	2.	Assist grip cap	3.	Third assist grip RH
4.	Rear ventilator grille B RH	5.	Second assist grip RH	6.	Rear ventilator grille A RH
7.	Sun visor assembly RH	8.	Sun visor cover RH	9.	Sun visor holder RH
10.	Map lamp assembly	11.	Sun visor assembly LH	12.	Sun visor holder LH
13.	Sun visor cover LH	14.	Front assist grip	15.	Roof console
16.	Rear ventilator grille A LH	17.	Second assist grip LH	18.	Rear ventilator grille B LH
19.	Third assist grip LH	20.	Seat belt finisher	21.	Dual lock fastener
22.	Metal clip	23.	Map lamp bracket
	: Clip
	: Pawl
	: Metal clip
