Exploded View

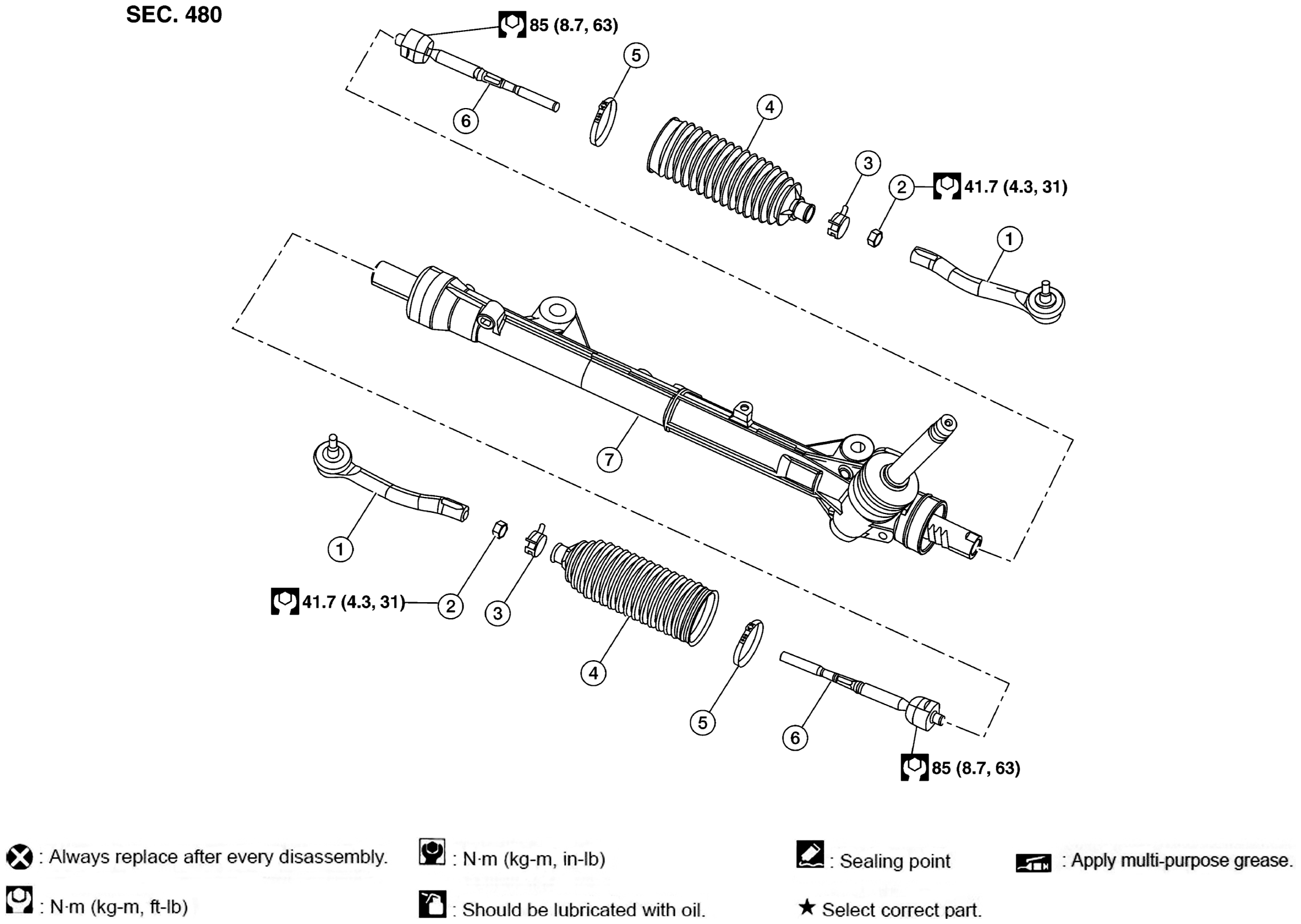

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
GNSAWGIA0289ZZ-289Courtesy of NISSAN NORTH AMERICA, INC.
1. Outer socket 2. Outer socket lock nut 3. Outer boot clamp
4. Boot 5. Inner boot clamp 6. Inner socket
7. Steering gear housing
