Removal (CANADA Only)

  1. Remove instrument panel assembly. REMOVAL AND INSTALLATION .
  2. Disconnect the harness connector from the dongle unit (1).

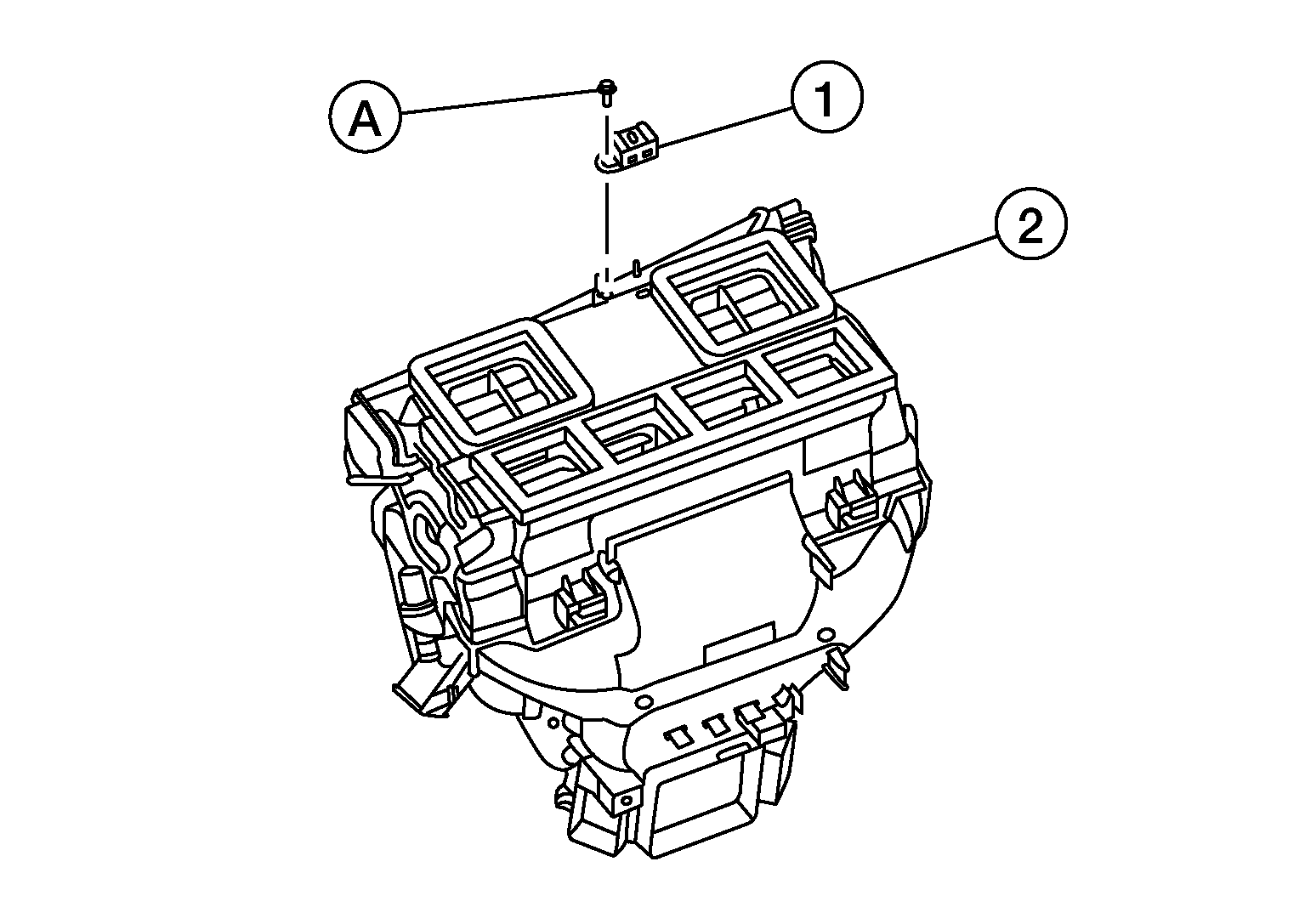

    Fig 1: Locating Dongle Unit And Screw
    GNSAWDIA1233ZZ-233Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screw (A) and dongle unit (1) from heating and cooling unit assembly (2).
