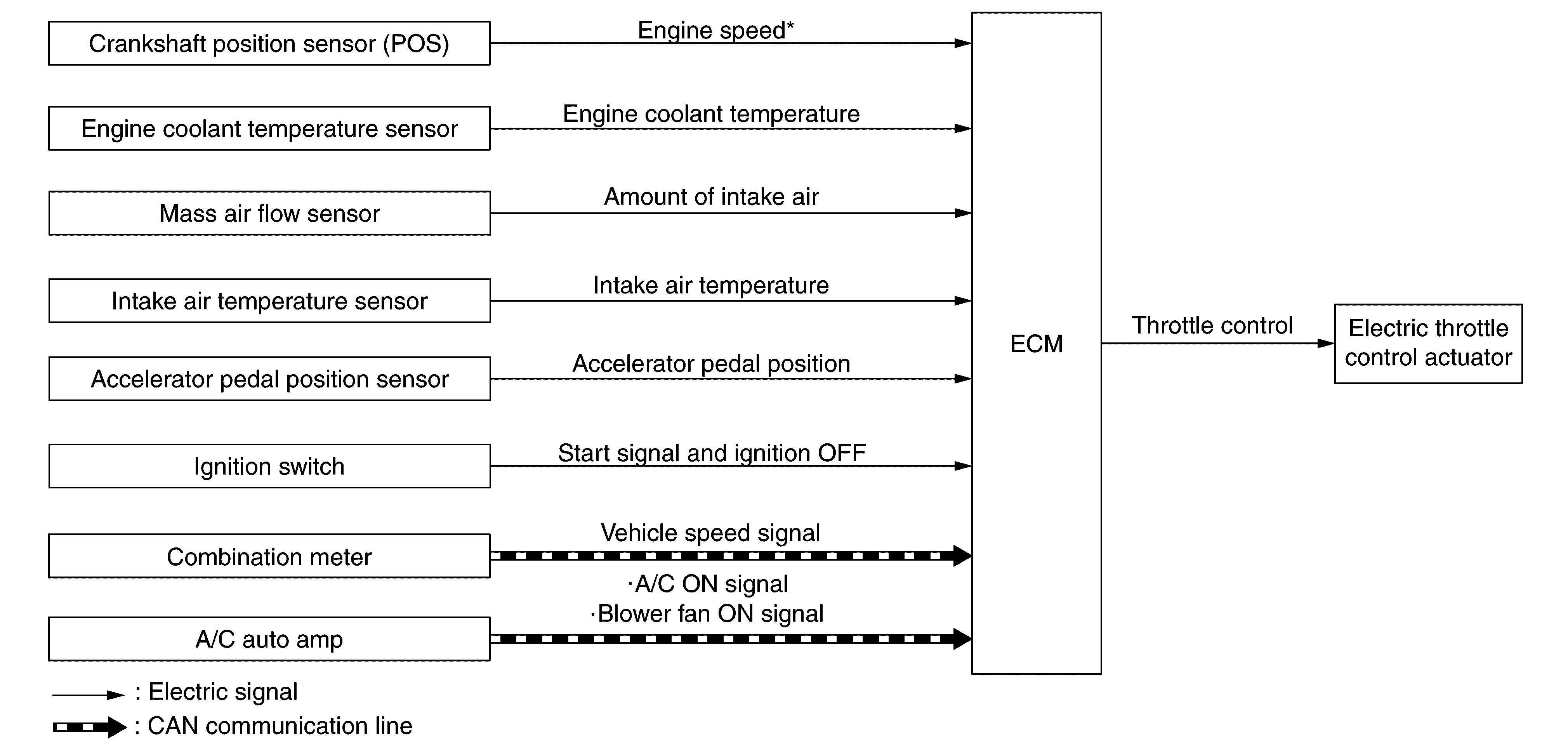

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
