System Description
>>
Power Consumption Control System
>>
Component Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Parts Location

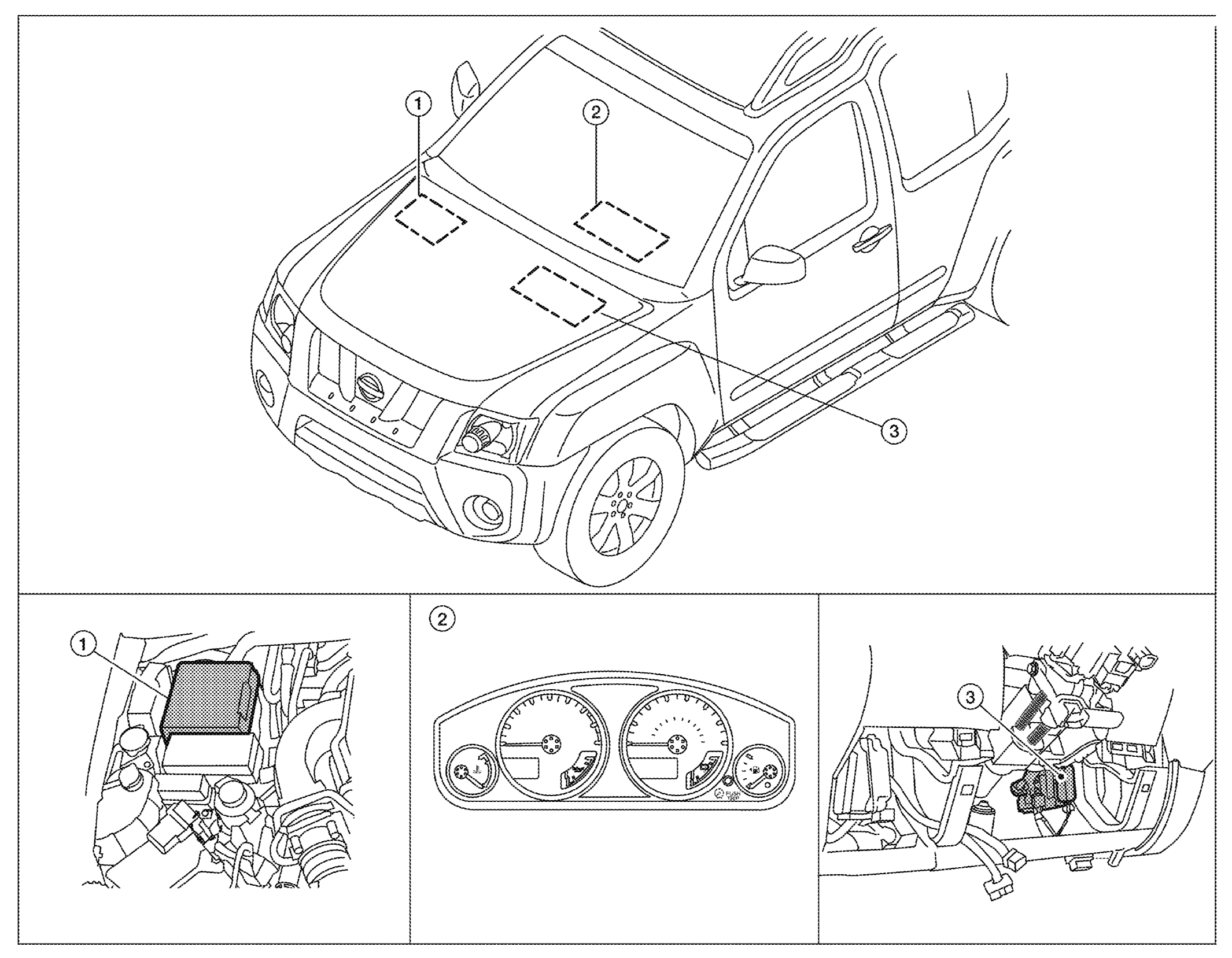

Fig 1: Power Consumption Control System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
1.
IPDM E/R E118, E119, E120, E121, E122, E123, E124
2.
Combination Meter M24
3.
BCM (View With Lower Instrument Panel LH Removed) M18, M19, M20
