Exhaust System
>>
Exploded View With Torque Specifications
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View With Torque Specifications

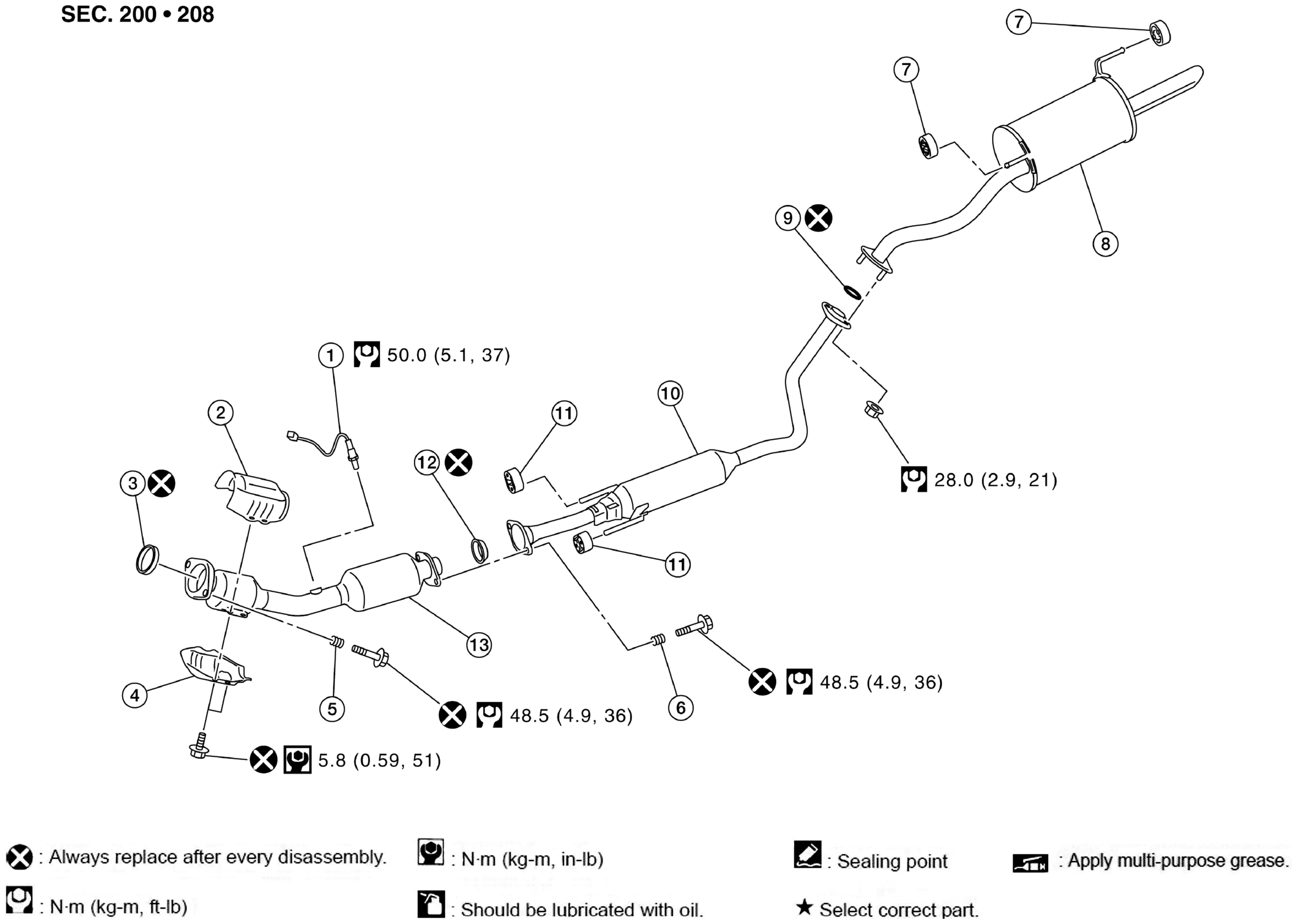

Fig 1: Exploded View Of Exhaust System With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Heated oxygen sensor 2
2.
Catalyst cover (upper)
3.
Seal bearing
4.
Catalyst cover (lower)
5.
Spring
6.
Spring
7.
Mounting rubber
8.
Main muffler
9.
Ring gasket
10.
Center muffler
11.
Mounting rubber
12.
Seal bearing
13.
Exhaust front tube
