Exploded View With Torque Specifications

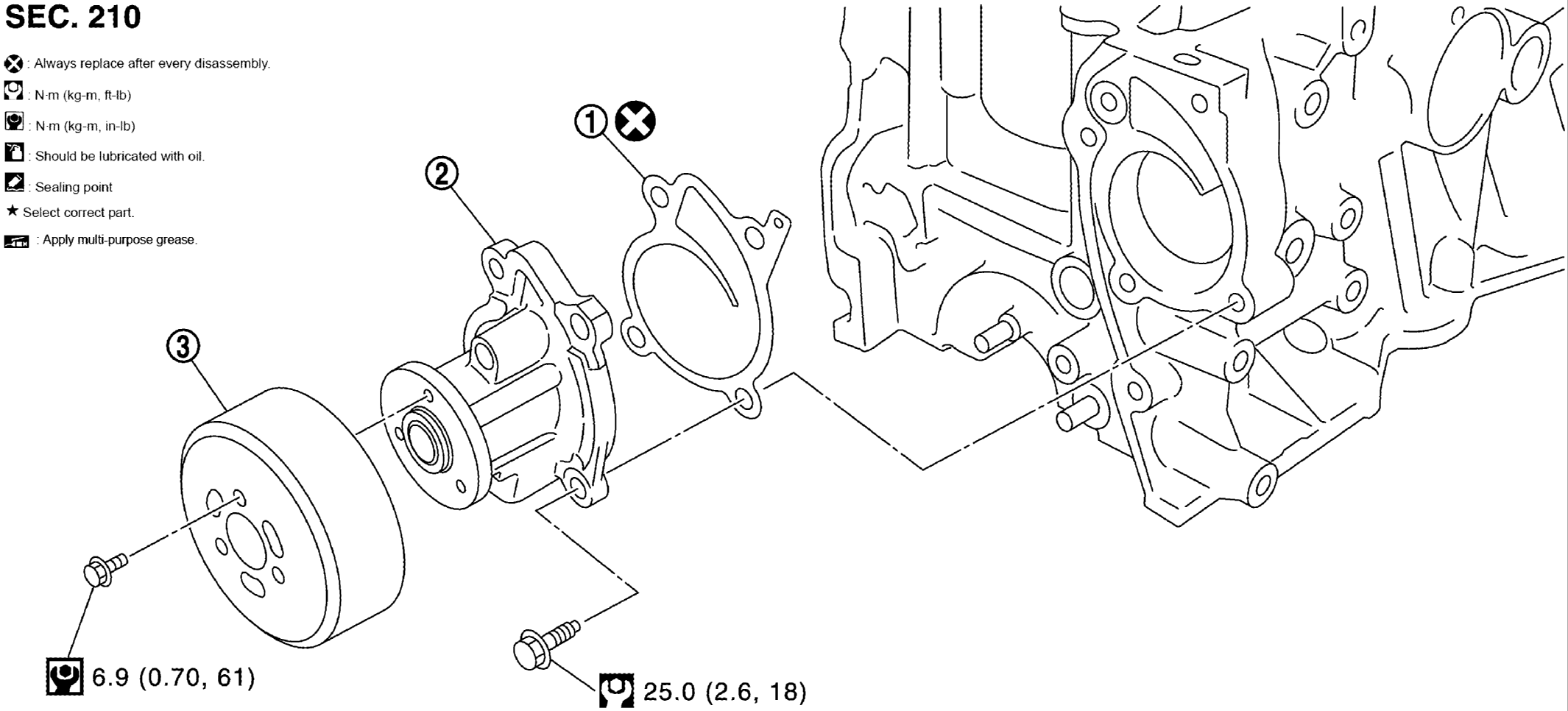

Fig 1: Exploded View Of Water Pump With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Gasket
2.
Water pump
3.
Water pump pulley
