Exploded View With Torque Specifications

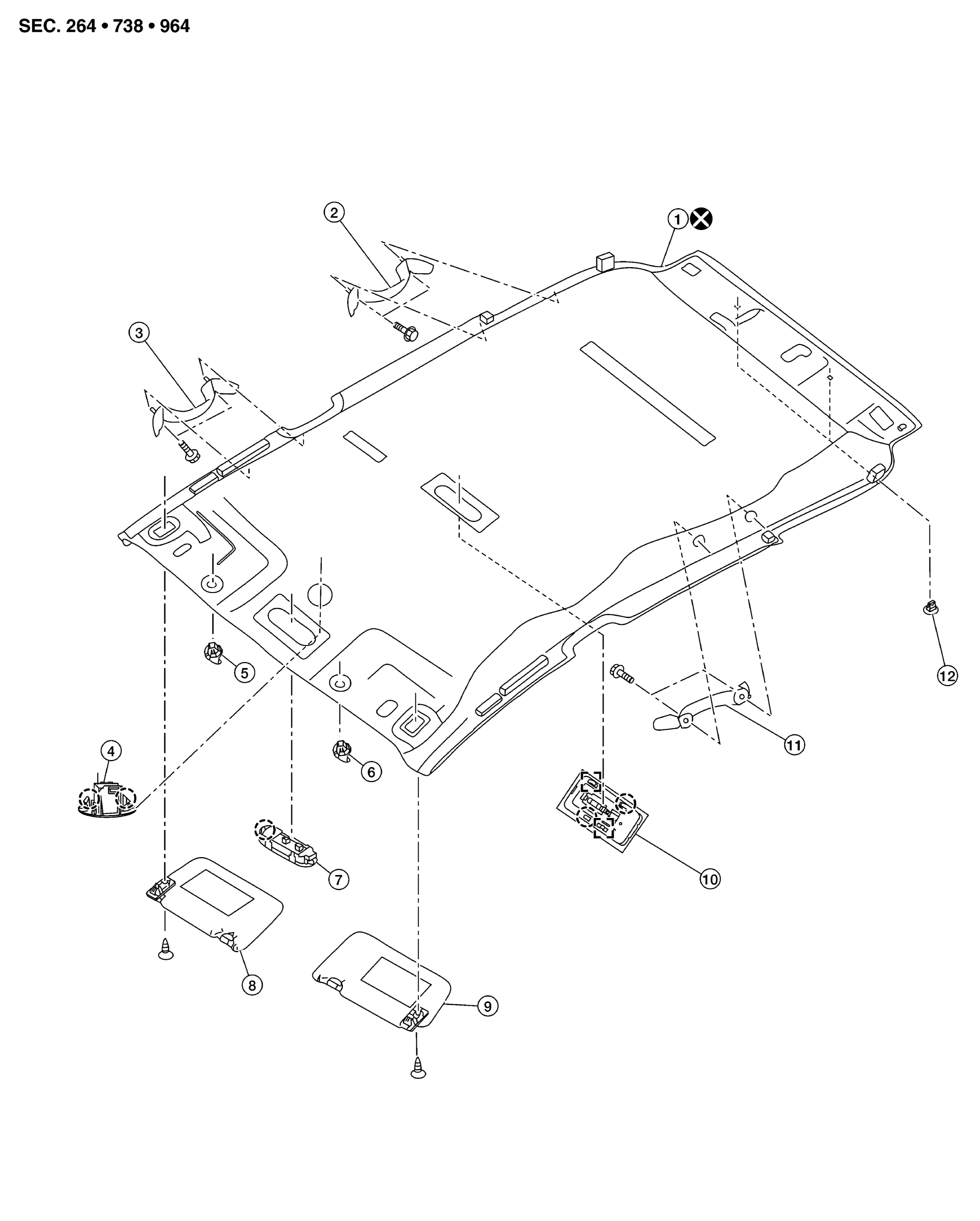

Fig 1: Exploded View Of Headlining
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Headlining
2.
Rear assist grip (RH)
3.
Front assist grip (RH)
4.
Microphone (if equipped)
5.
Sun visor holder (RH)
6.
Sun visor holder (LH)
7.
Map lamp
8.
Sun visor (RH)
9.
Sun visor (LH)
10.
Interior room lamp
11.
Rear assist grip (LH)
12.
Headlining clip
Pawl
