Exploded View With Torque Specifications

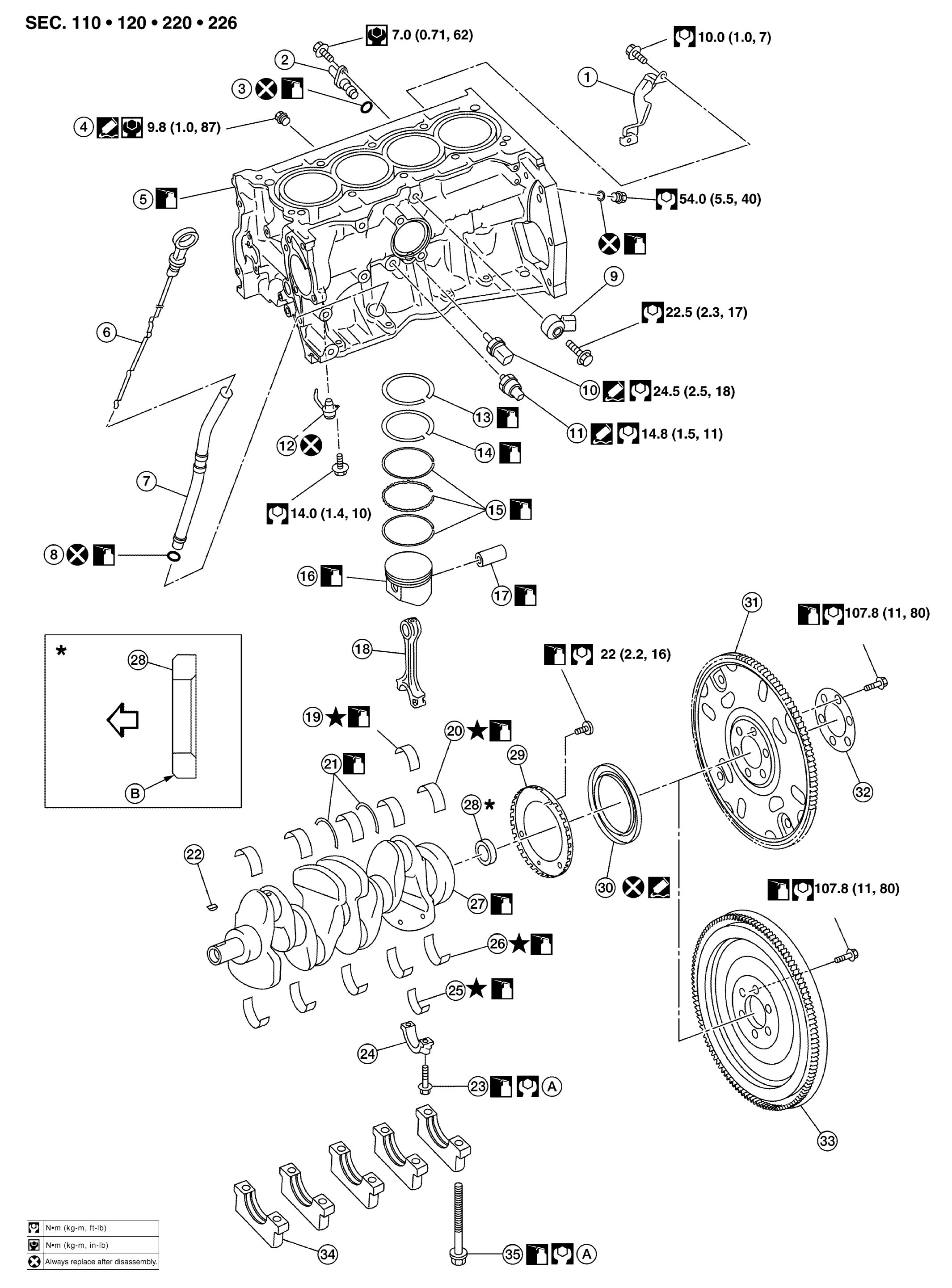

Fig 1: Exploded View Of Cylinder Block With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Crankshaft position sensor cover	2.	Crankshaft position sensor (POS)	3.	O - ring
4.	Drain plug	5.	Cylinder block	6.	Oil level gauge
7.	Oil level gauge guide	8.	O - ring	9.	Knock sensor
10.	Oil temperature sensor	11.	Oil pressure sensor	12.	Oil jet
13.	Top ring	14.	Second ring	15.	Oil rings
16.	Piston	17.	Piston pin	18.	Connecting rod
19.	Connecting rod bearing (upper)	20.	Main bearing (upper)	21.	Thrust bearing
22.	Crankshaft key	23.	Connecting rod bolt	24.	Connecting rod cap
25.	Connecting rod bearing (lower)	26.	Main bearing (lower)	27.	Crankshaft
28.	Pilot converter (CVT models)	29.	Signal plate	30.	Rear oil seal
31.	Drive plate (CVT models)	32.	Reinforce plate (CVT models)	33.	Flywheel (M/T models)
34.	Main bearing cap	35.	Main bearing cap bolt	A.	Refer to ASSEMBLY
B.	Chamfered		Crankshaft side
