Exploded View With Torque Specifications

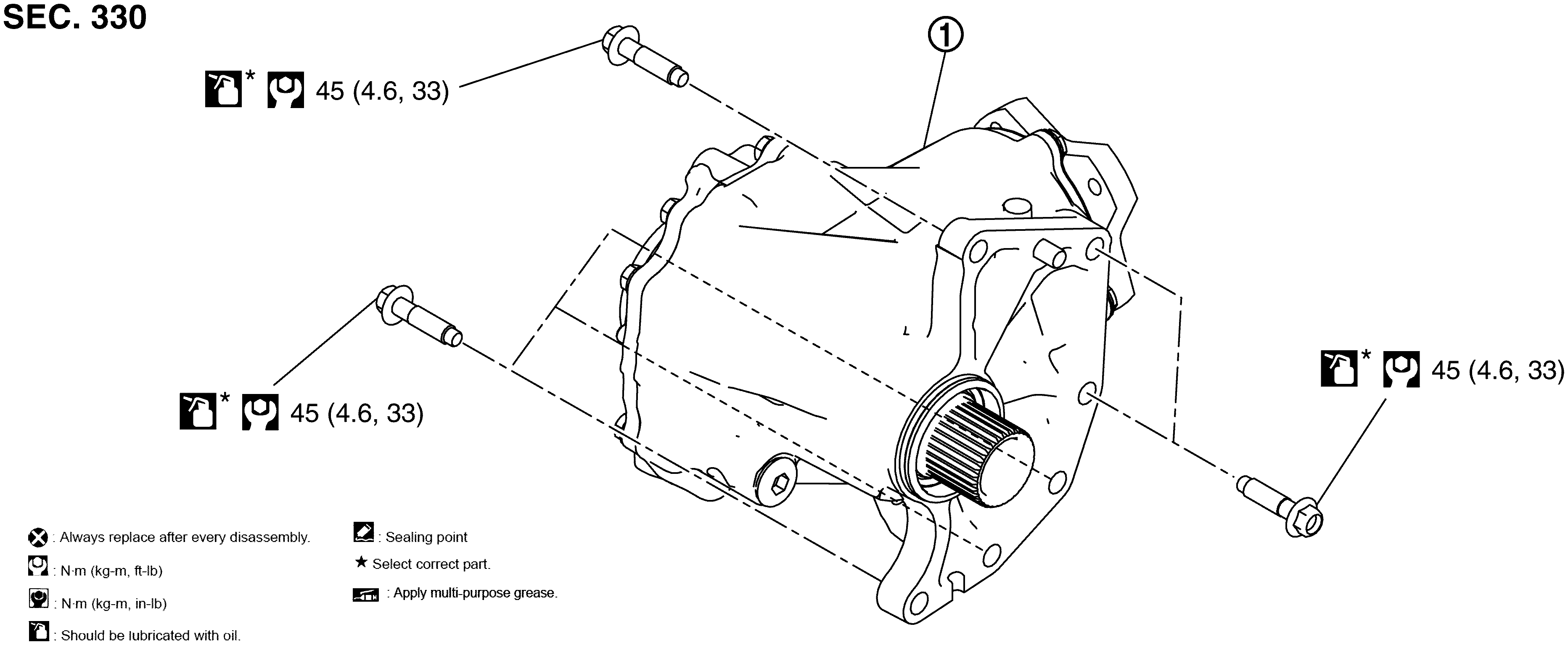

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
GNSJSDIA5370GB-370Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Transfer assembly
BOLT : N•m (kg - m, ft - lb)
OIL *: Apply anti-corrosion oil.
