Exploded View With Torque Specifications

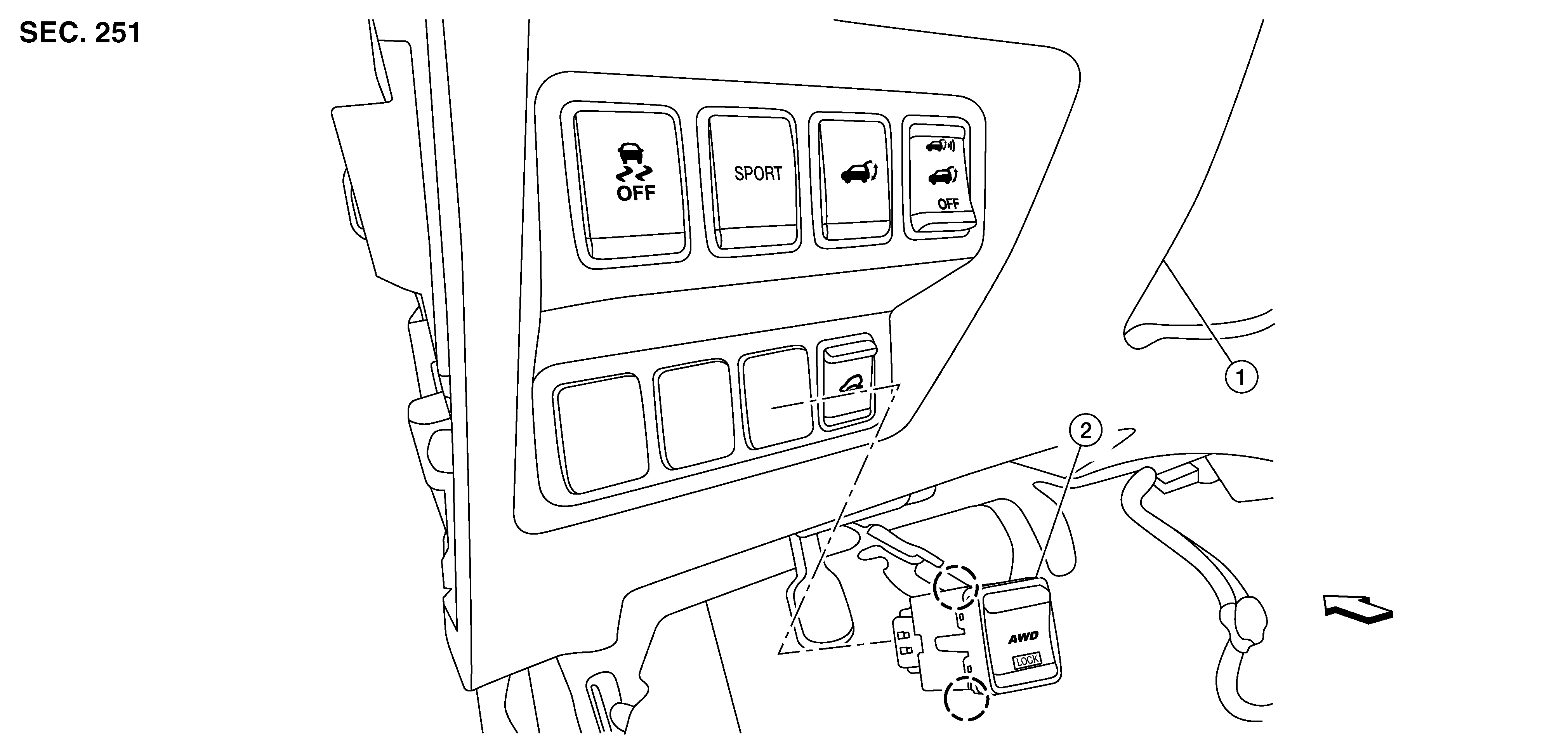

Fig 1: Locating AWD Lock Switch
GNSALDIA0506ZZ-506Courtesy of NISSAN NORTH AMERICA, INC.
1. Instrument lower panel LH 2. AWD lock switch ARROW Front
MARU-H Pawl
