Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

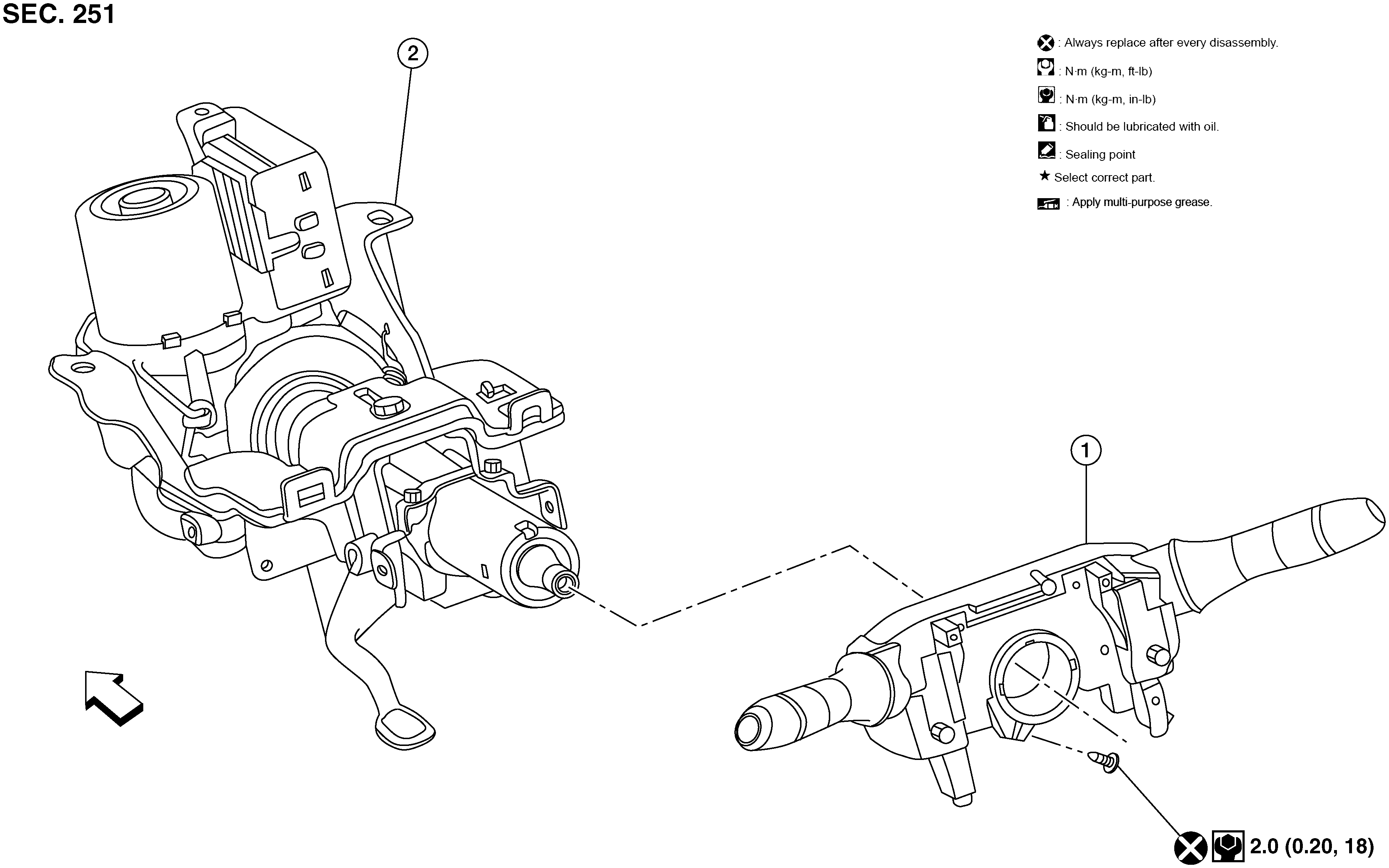

Fig 1: Exploded View Of Combination Switch With Torque Specifications
GNSAWMIA1742ZZ-742Courtesy of NISSAN NORTH AMERICA, INC.
1. Combination switch 2. Steering column ARROW Front
