Circuit Diagram

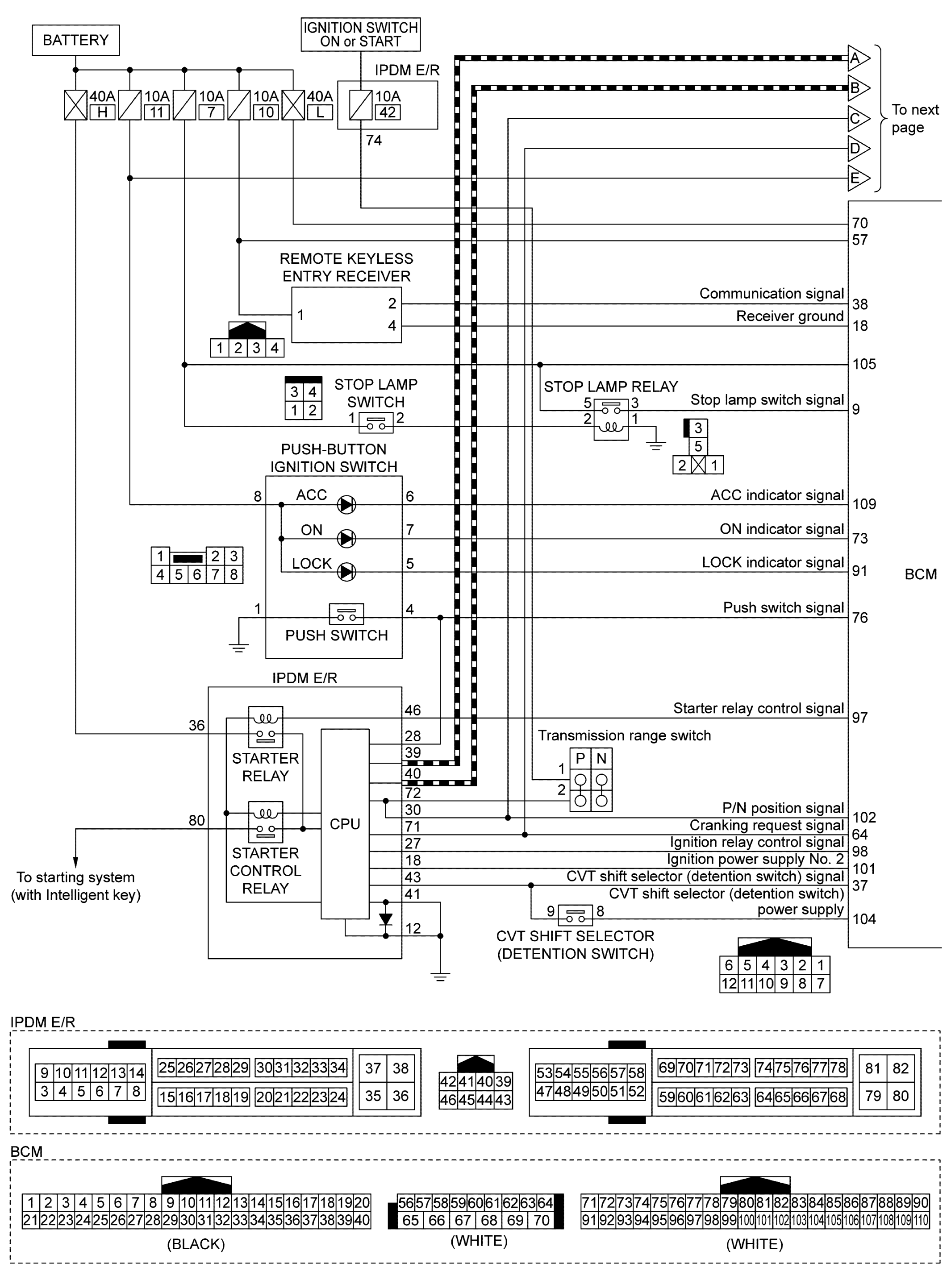

Fig 1: Intelligent Key System/Engine Start Function Circuit Diagram (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: Intelligent Key System/Engine Start Function Circuit Diagram (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.
