System Diagram

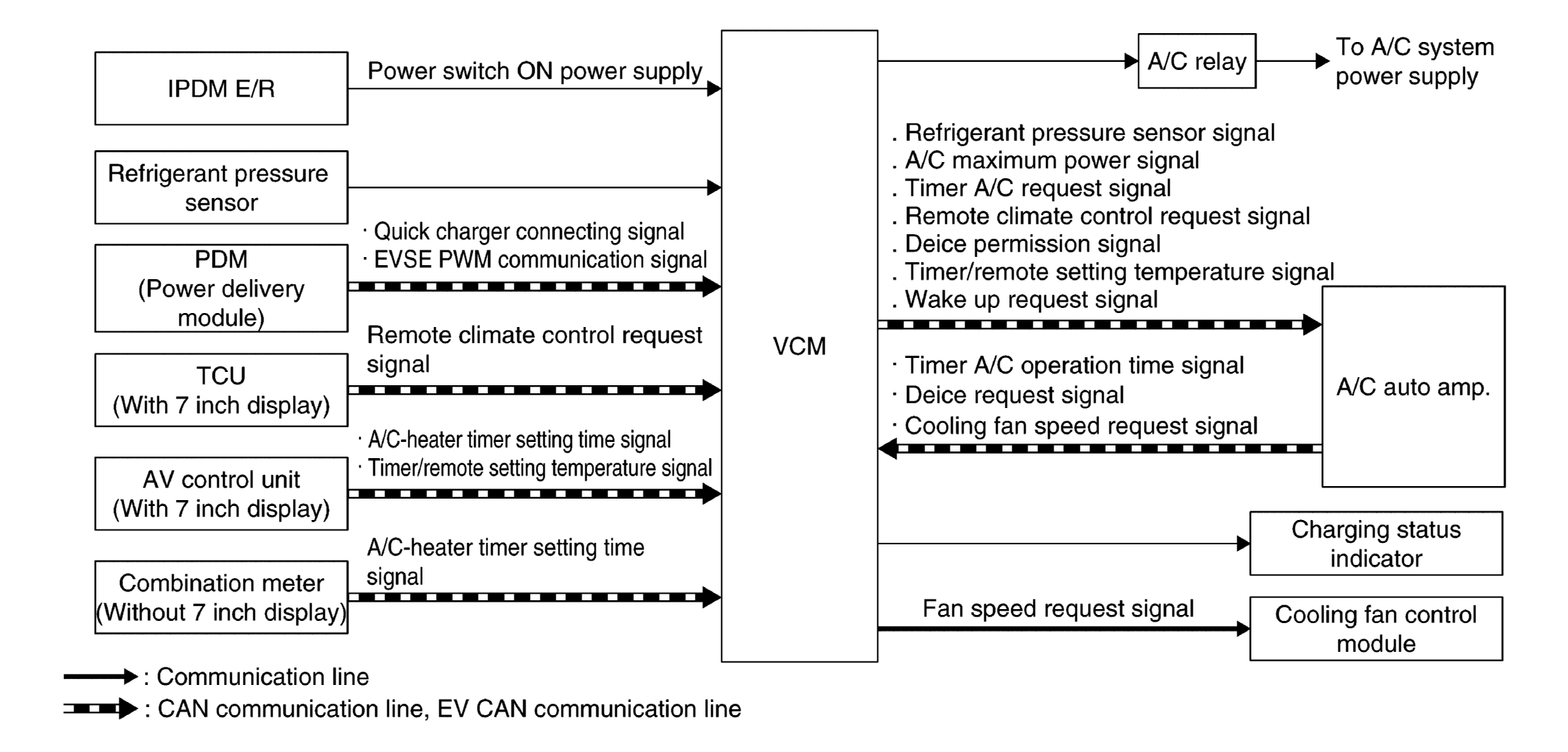

Fig 1: Air Conditioner Control System Diagram
G08702969Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:

TCU is included only in models with TELEMATICS system.
