Exploded View With Torque Specifications

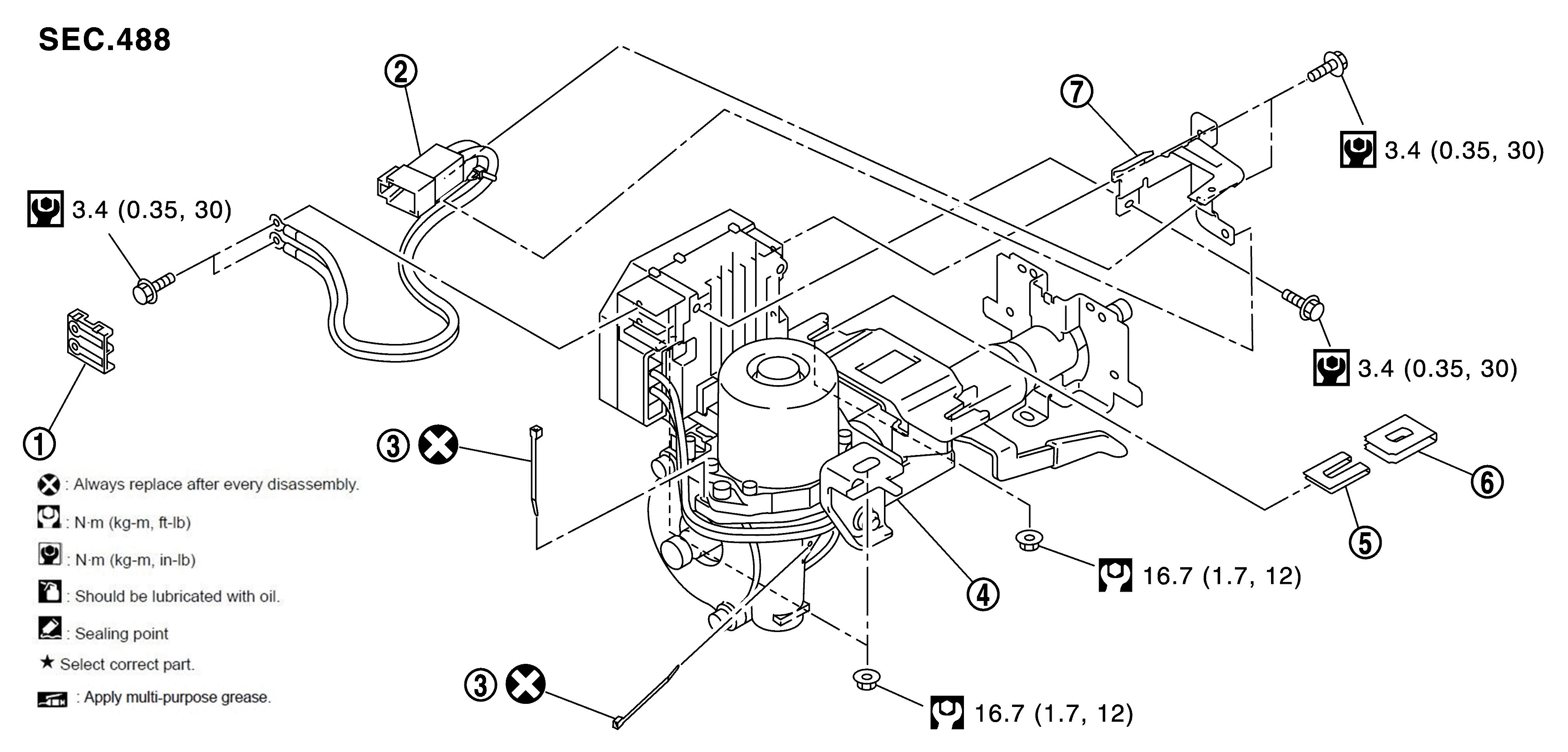

Fig 1: Exploded View Of Steering Column With Torque Specifications
GNSJSGIA0898GB-898Courtesy of NISSAN NORTH AMERICA, INC.
1. Cover 2. Sub-Harness 3. Band
4. Steering Column Assembly 5. Slide Plate (Inner) 6. Slide Plate (Outer)
7. Bracket
