Disassembly And Assembly: Notes
WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.

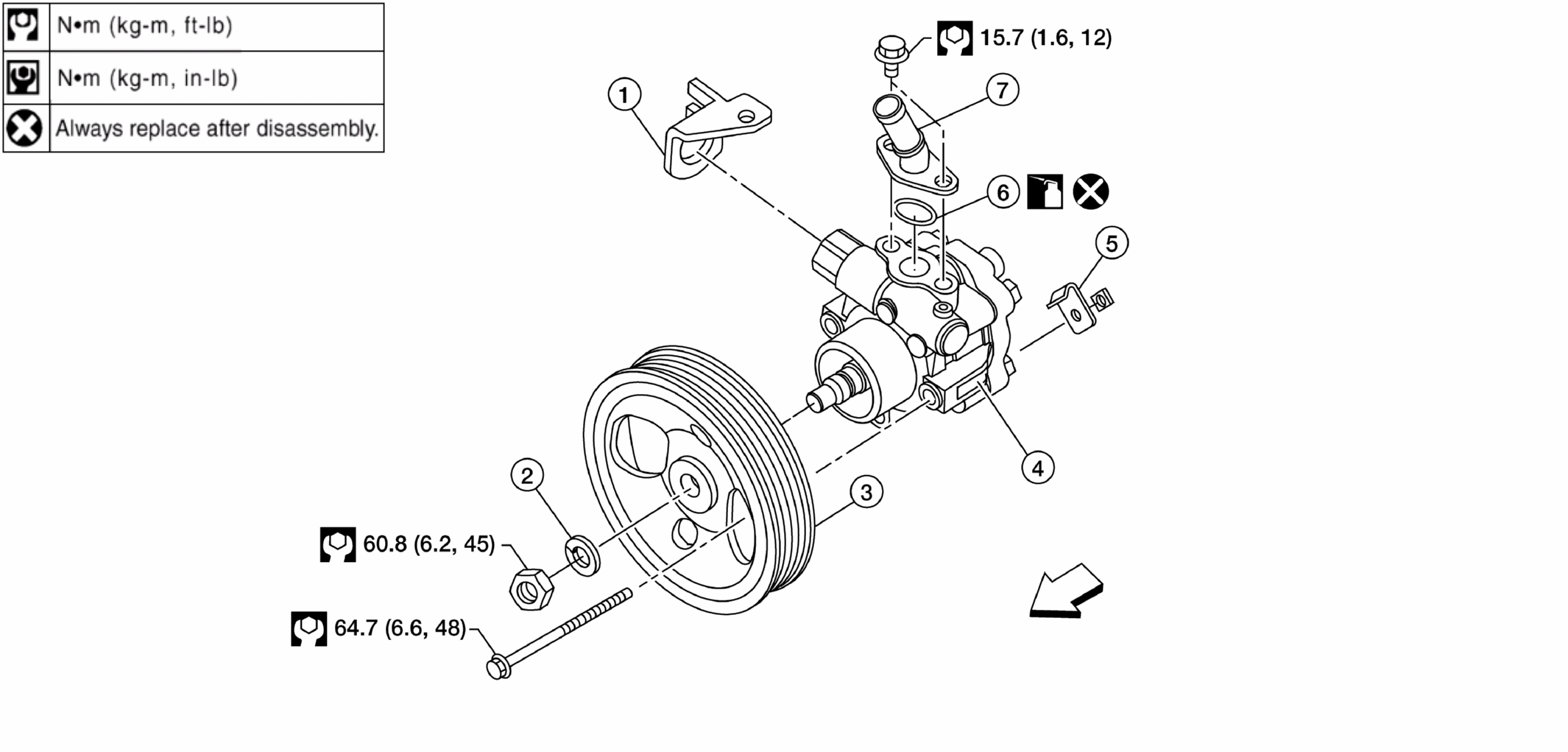

| 1. |
Bracket |
2. |
Spring Washer |
3. |
Pulley |
| 4. |
Power Steering Pump |
5. |
High Pressure Hose Bracket |
6. |
O-Ring |
| 7. |
Suction Pipe |
Arrow |
Front |
|
|
