Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

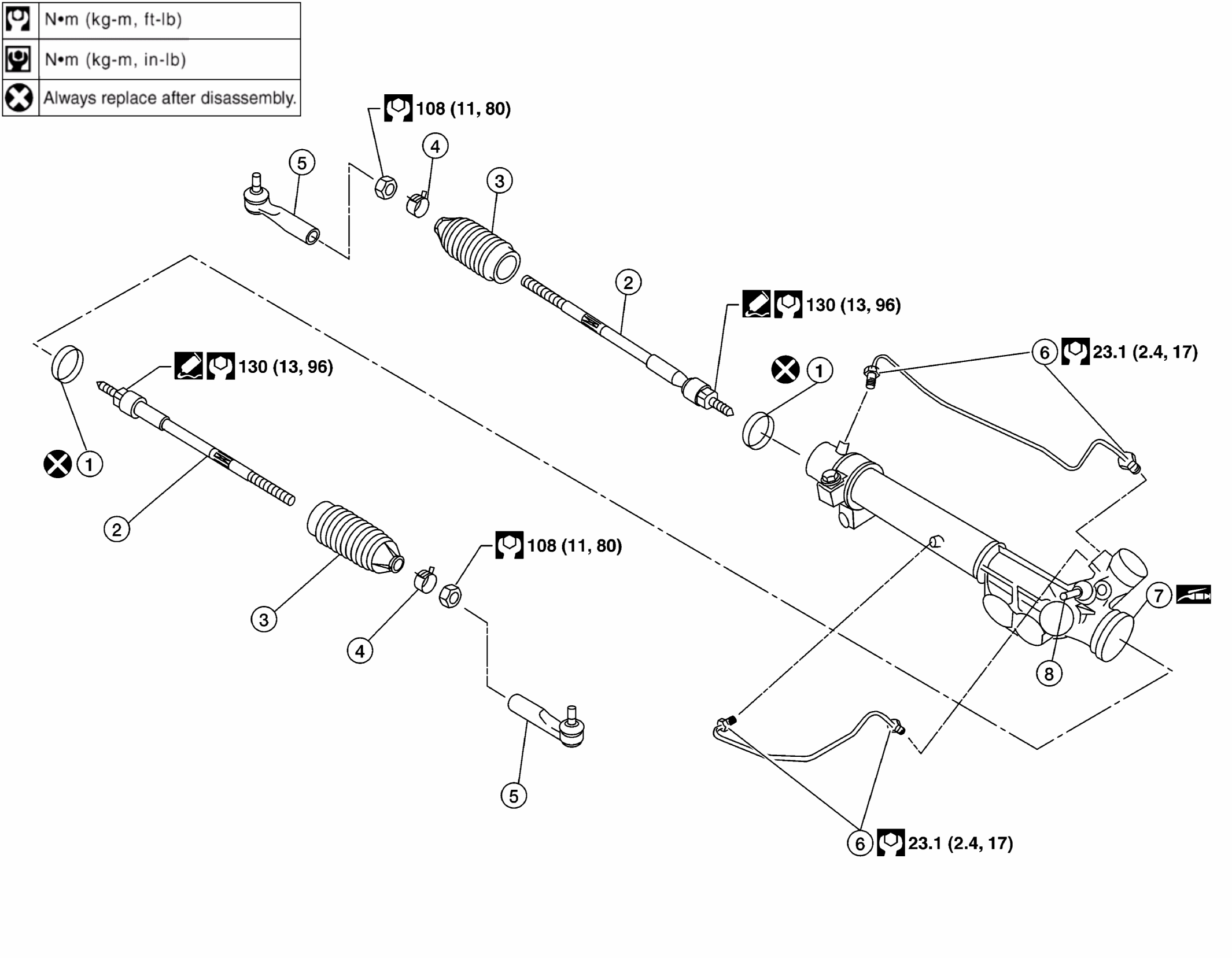

Fig 1: Exploded View Of Power Steering Gear And Linkage With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Boot Clamp	2.	Inner Socket	3.	Boot
4.	Boot Clamp	5.	Outer Socket	6.	Cylinder Tubes
7.	Gear Housing Assembly	8.	Connector

CAUTION:

Secure steering gear assembly in a vise, using copper plates or something similar to prevent it from being damaged. Do not grip cylinder with a vise.
Before performing disassembly, clean steering gear assembly with kerosene. Be careful not to bring any kerosene into contact with the discharge and return port connectors.
