Component Parts Location - King Cab

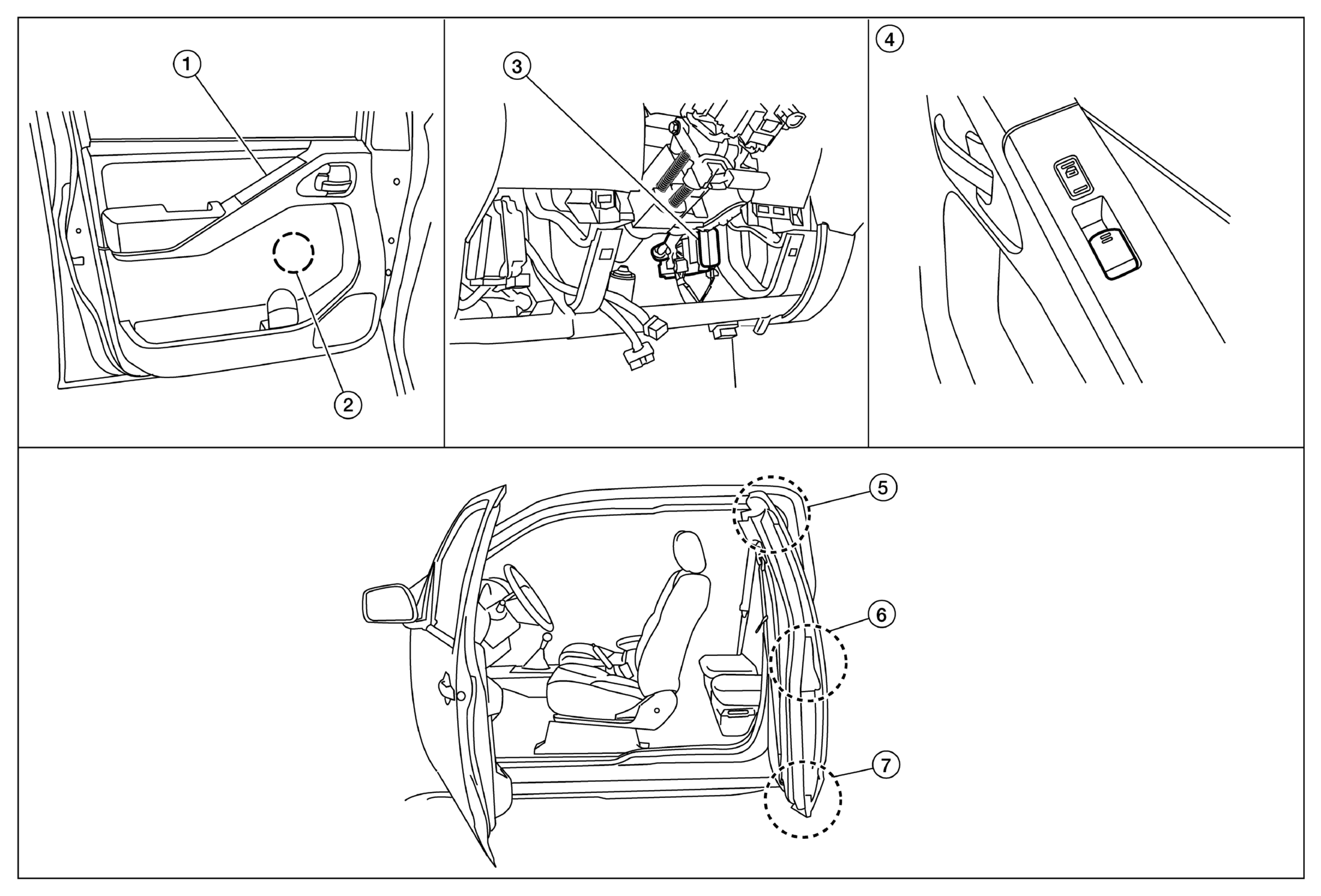

Fig 1: Power Window Control System Components Location (King Cab)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Main Power Window And Door Lock/Unlock Switch D7	2.	Front Power Window Motor LH D9, RH D104	3.	BCM M18, M19, M20 (View With Lower Instrument Panel LH Removed)
4.	Power Window And Door Lock/Unlock Switch RH D105	5.	Rear Door Switch Upper LH D211, RH D312	6.	Front Door Switch LH D213, RH D314
7.	Rear Door Switch Lower D212, RH D313
