Side Window Glass: Components

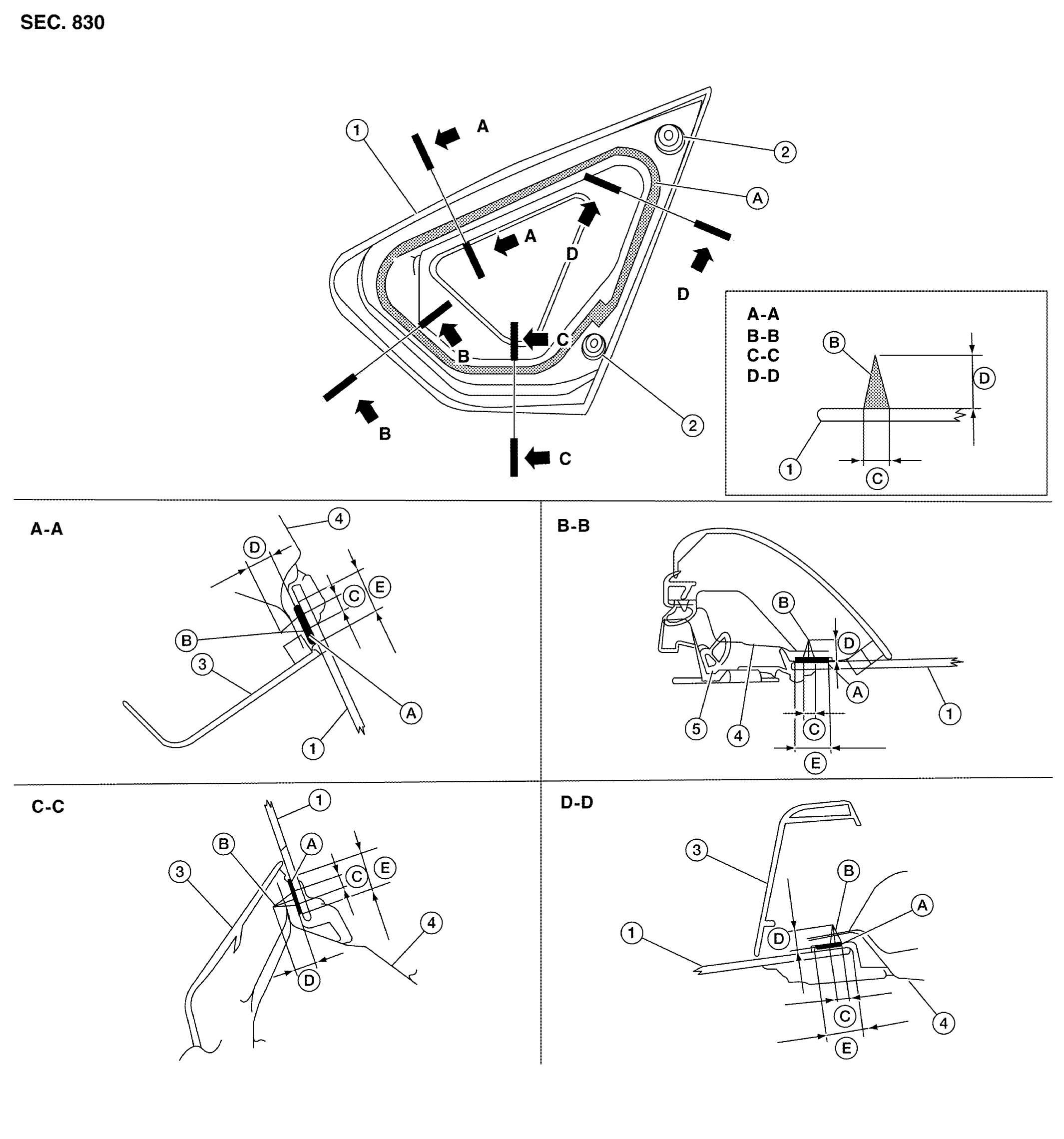

Fig 1: Side Window Glass Installation Dimensions
GNSALKIA2646ZZ-646Courtesy of NISSAN NORTH AMERICA, INC.
1. Side window glass 2. Spacer 3. Rear pillar finisher
4. Rear body pillar 5. Seal A. Primer
B. Adhesive C. 7 mm (0.3 in) D. 12 mm (0.5 in)
E. 20 mm (0.8 in)
