Connectors End Views

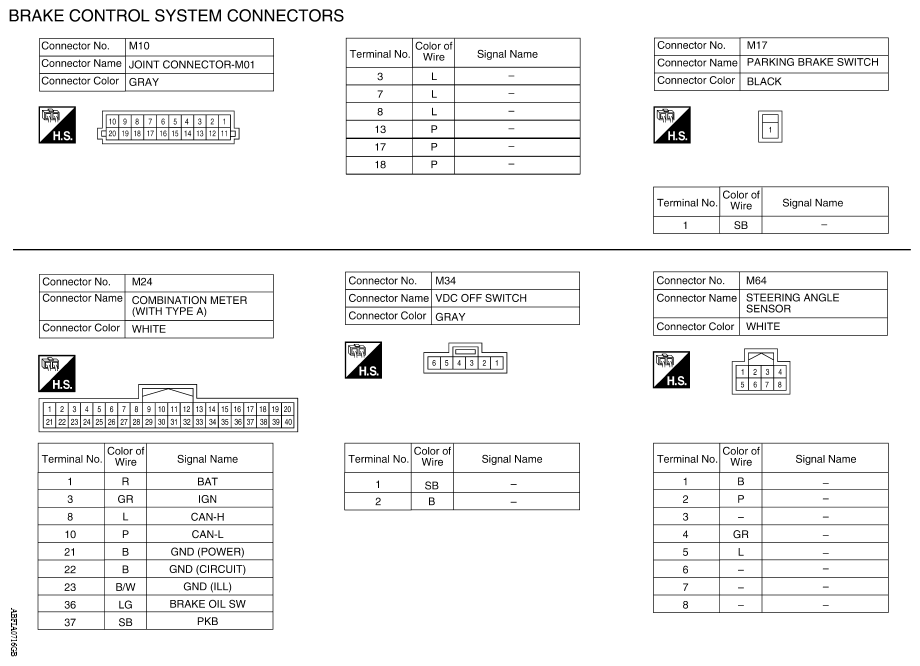

Fig 1: Brake Control System Connectors End View (1 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

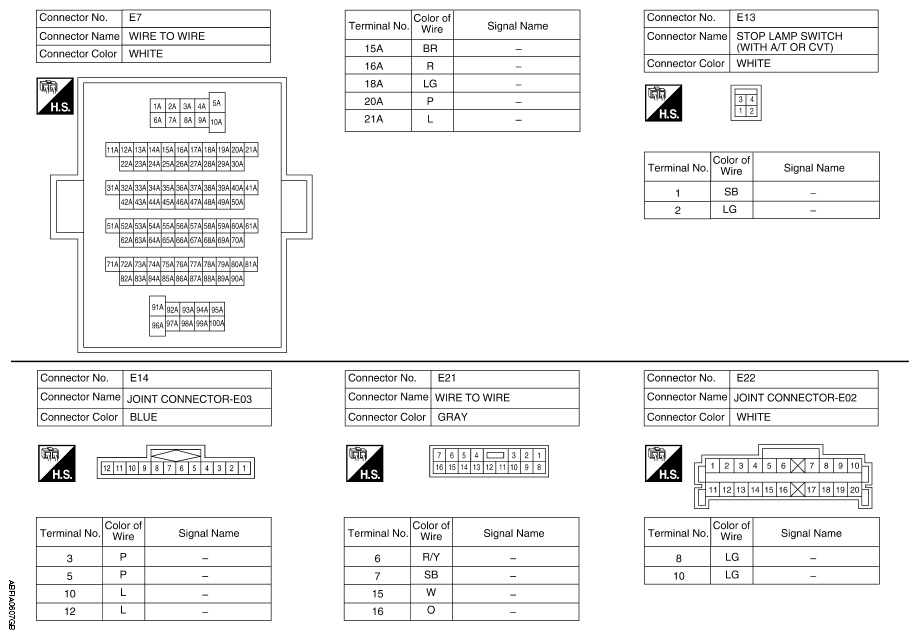

Fig 2: Brake Control System Connectors End View (2 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

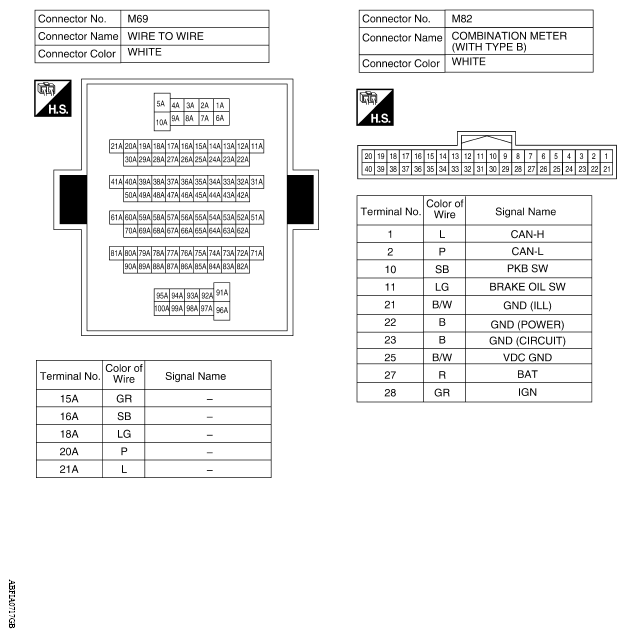

Fig 3: Brake Control System Connectors End View (3 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

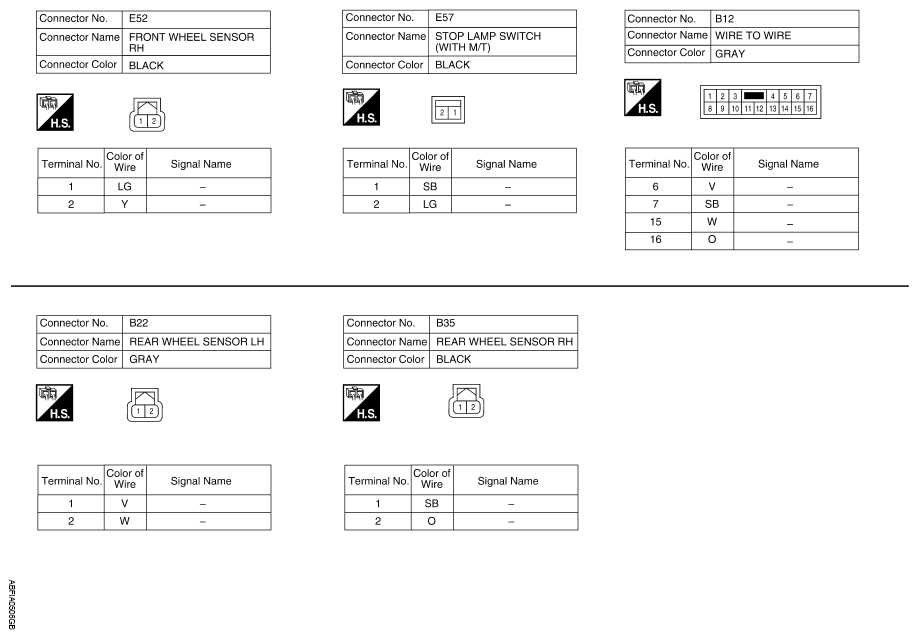

Fig 4: Brake Control System Connectors End View (4 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.

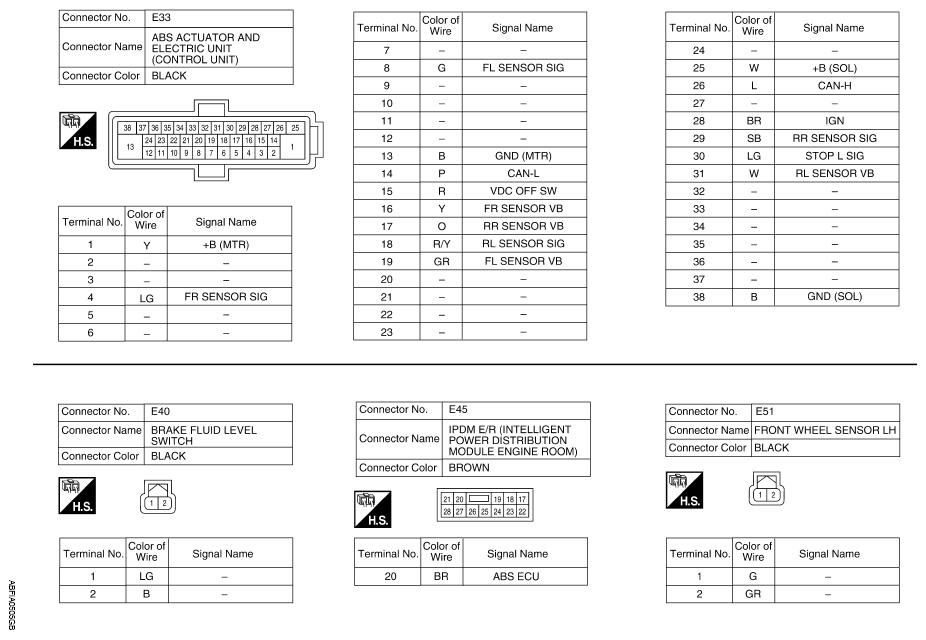

Fig 5: Brake Control System Connectors End View (5 Of 5)

Courtesy of NISSAN NORTH AMERICA, INC.
