Removal and Installation: Removal

  1. Remove the spiral cable. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the screws (A), then release the pawls (B) and remove the steering angle sensor (2) from the spiral cable (1).

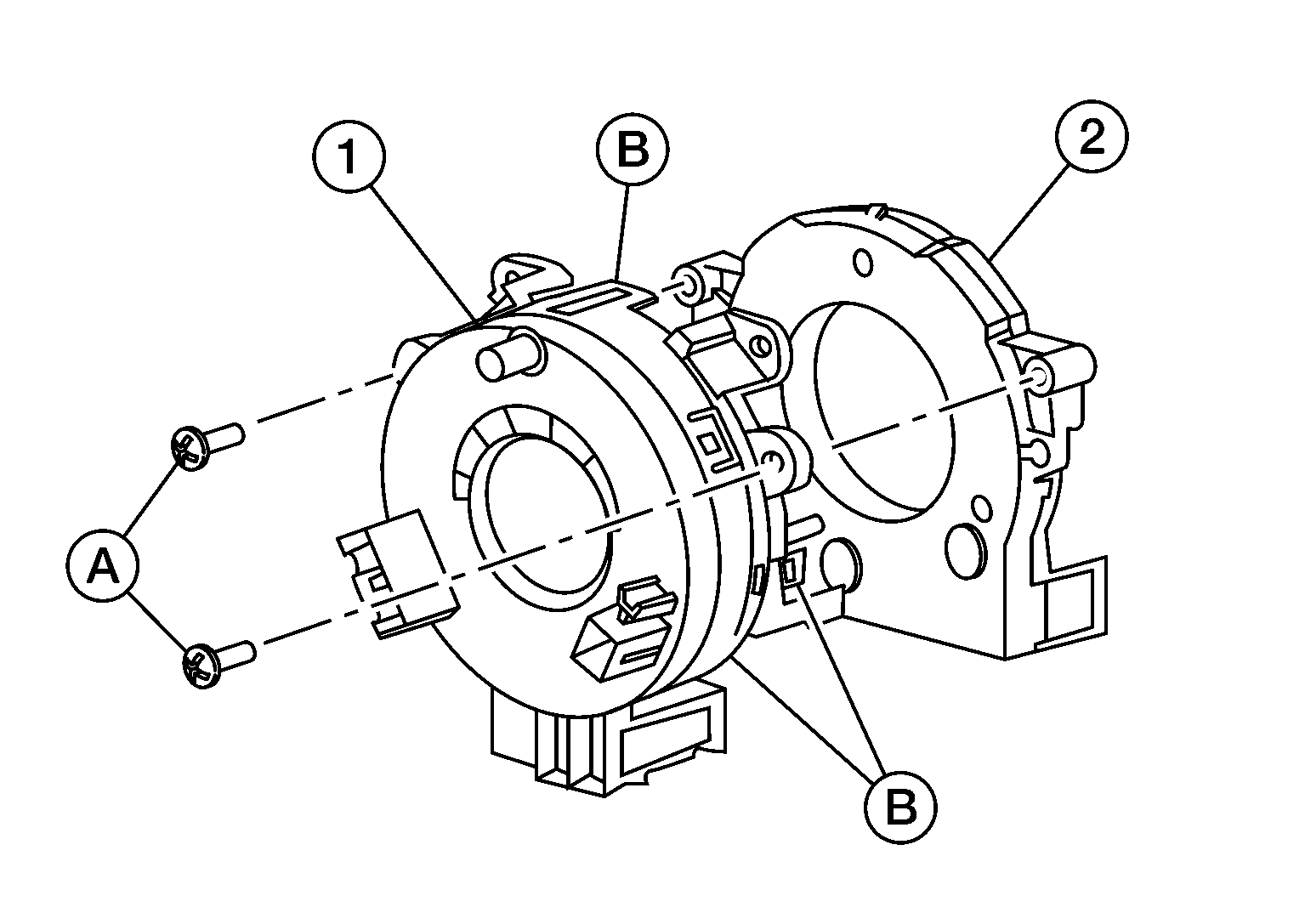

    Fig 1: Identifying Steering Angle Sensor, Spiral Cable, Pawls And Screws
    G08686561Courtesy of NISSAN NORTH AMERICA, INC.
