Exploded View

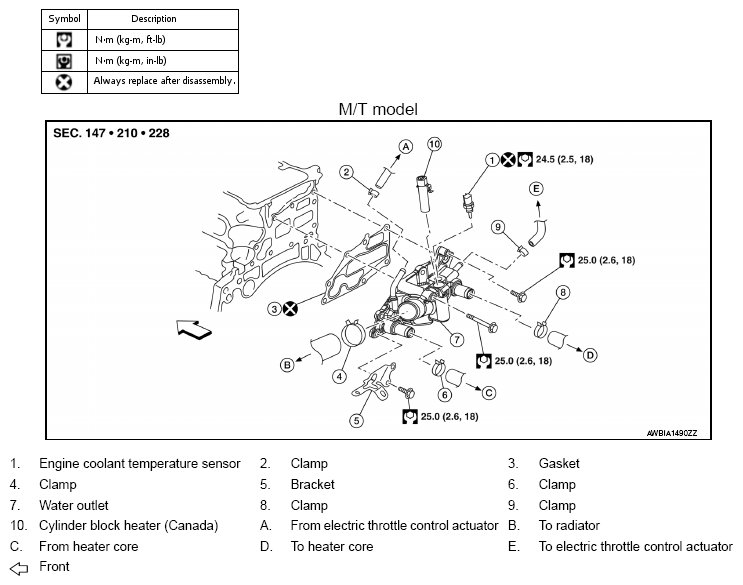

Fig 1: Exploded View Of Water Outlet (M/T Model) With Torque Specifications
G09617532Courtesy of NISSAN NORTH AMERICA, INC.

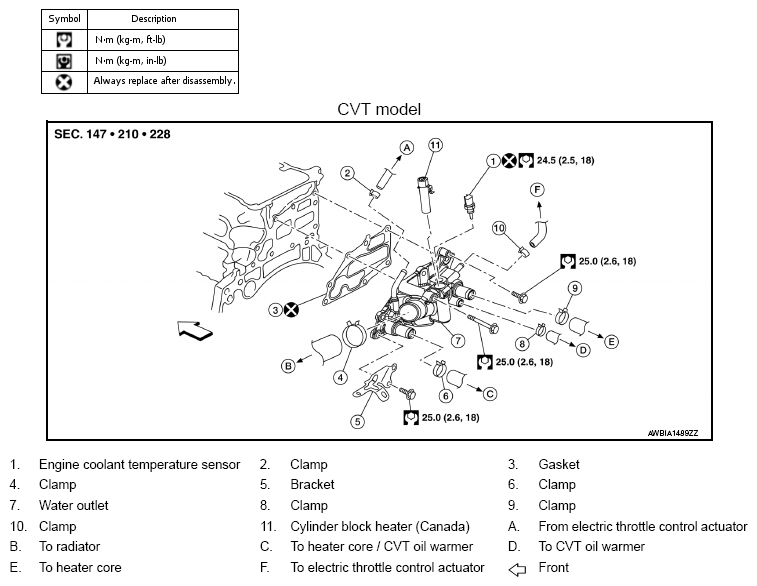

Fig 2: Exploded View Of Water Outlet (CVT Model) With Torque Specifications
G09617533Courtesy of NISSAN NORTH AMERICA, INC.
