Connector End Views

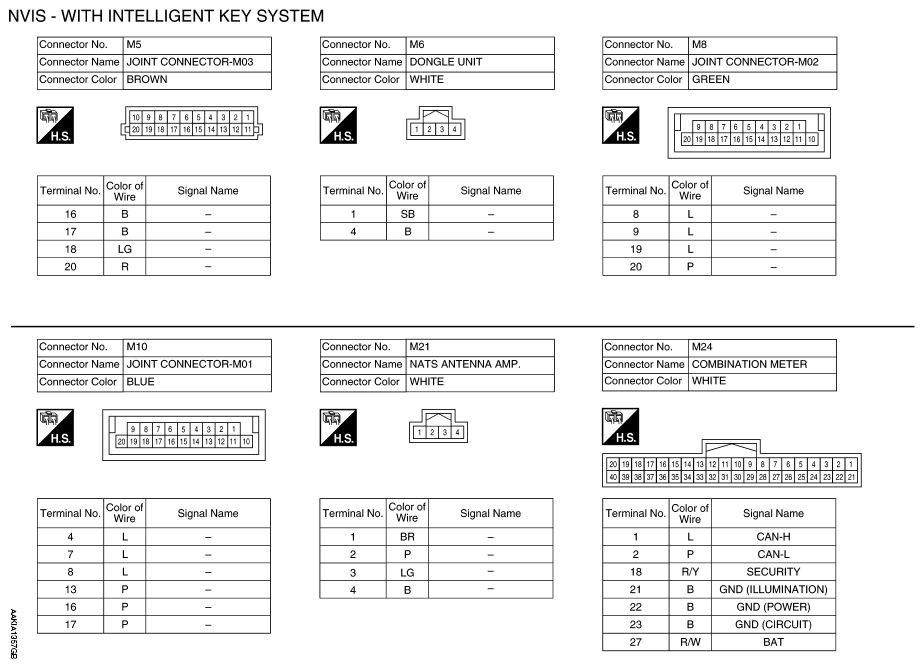

Fig 1: NVIS Connector End View - With Intelligent Key System (1 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

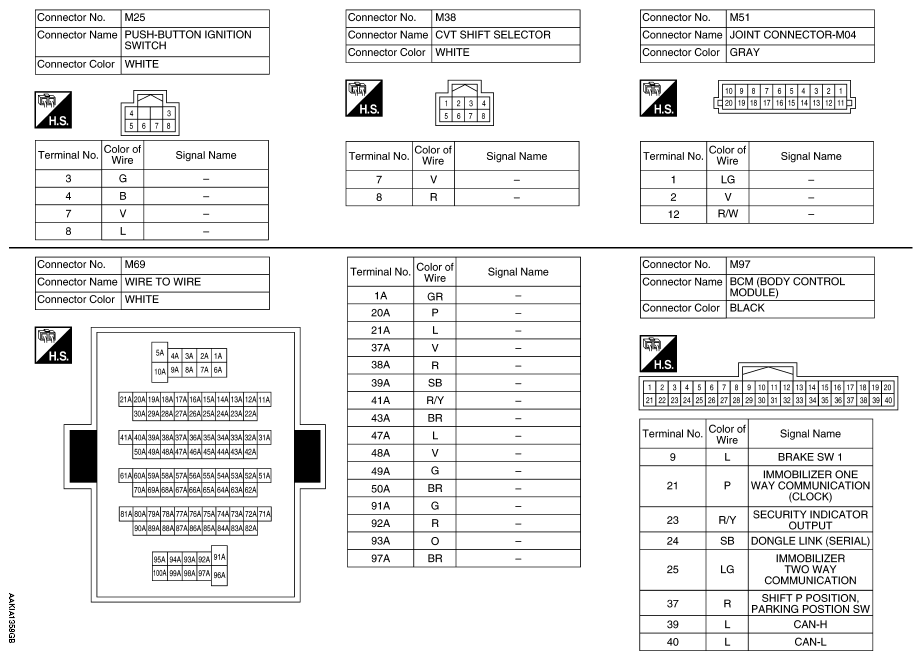

Fig 2: NVIS Connector End View - With Intelligent Key System (2 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

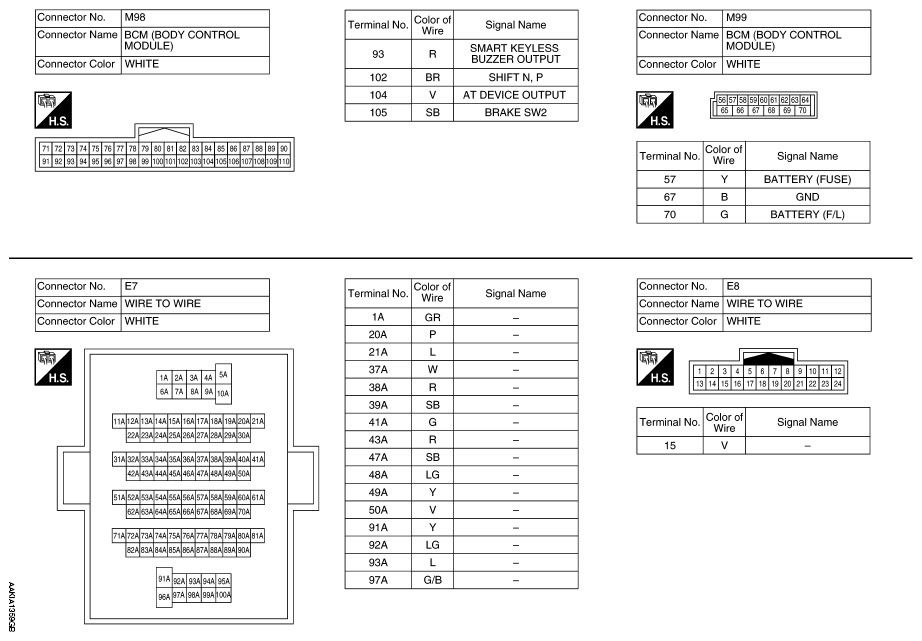

Fig 3: NVIS Connector End View - With Intelligent Key System (3 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

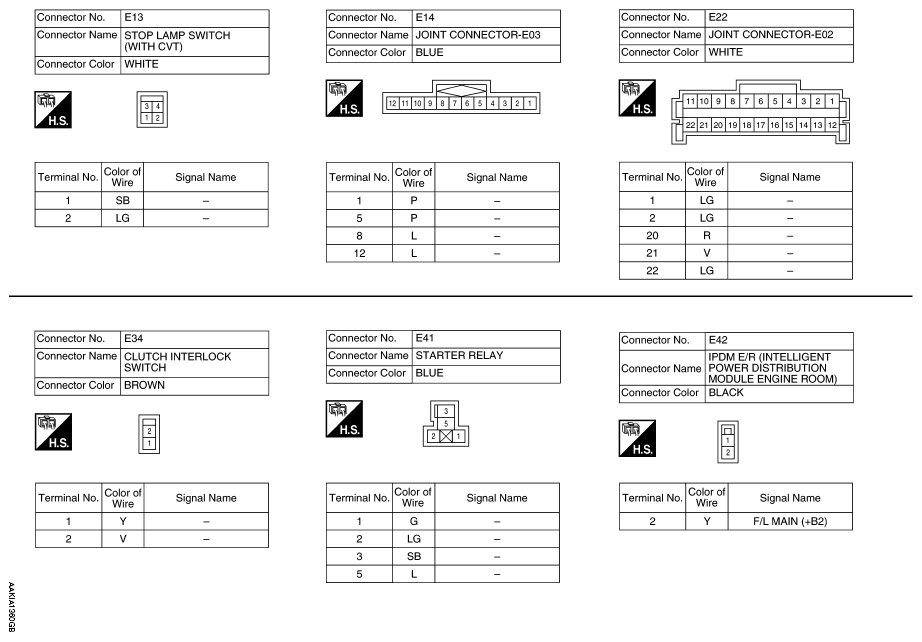

Fig 4: NVIS Connector End View - With Intelligent Key System (4 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

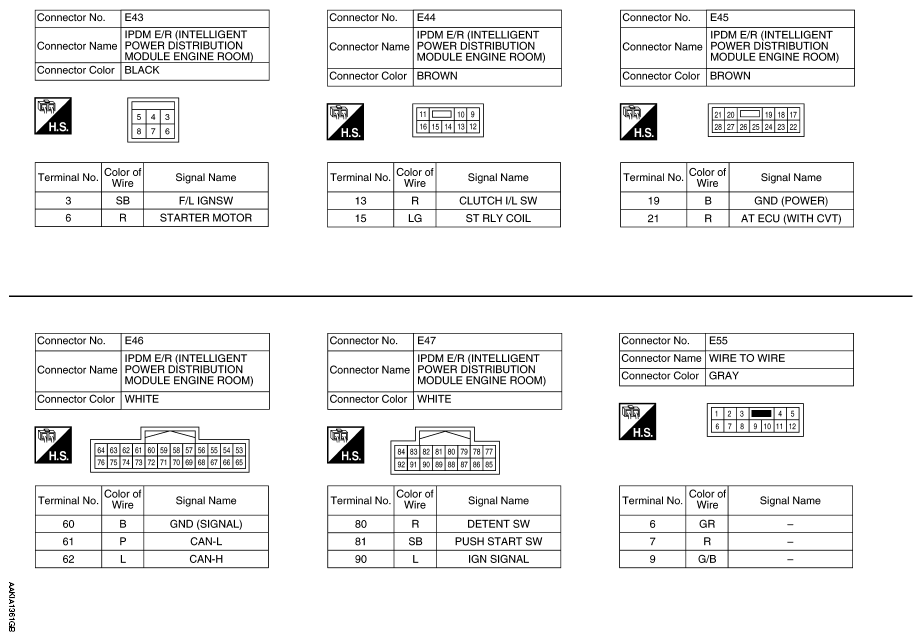

Fig 5: NVIS Connector End View - With Intelligent Key System (5 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

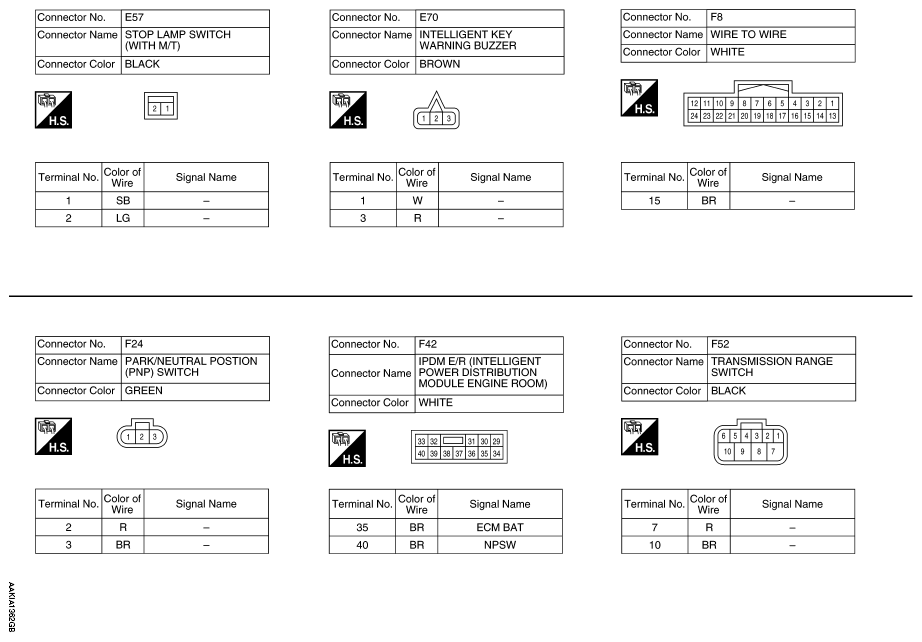

Fig 6: NVIS Connector End View - With Intelligent Key System (6 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: NVIS Connector End View - With Intelligent Key System (7 Of 7)

Courtesy of NISSAN NORTH AMERICA, INC.
