Exploded View: Sunroof

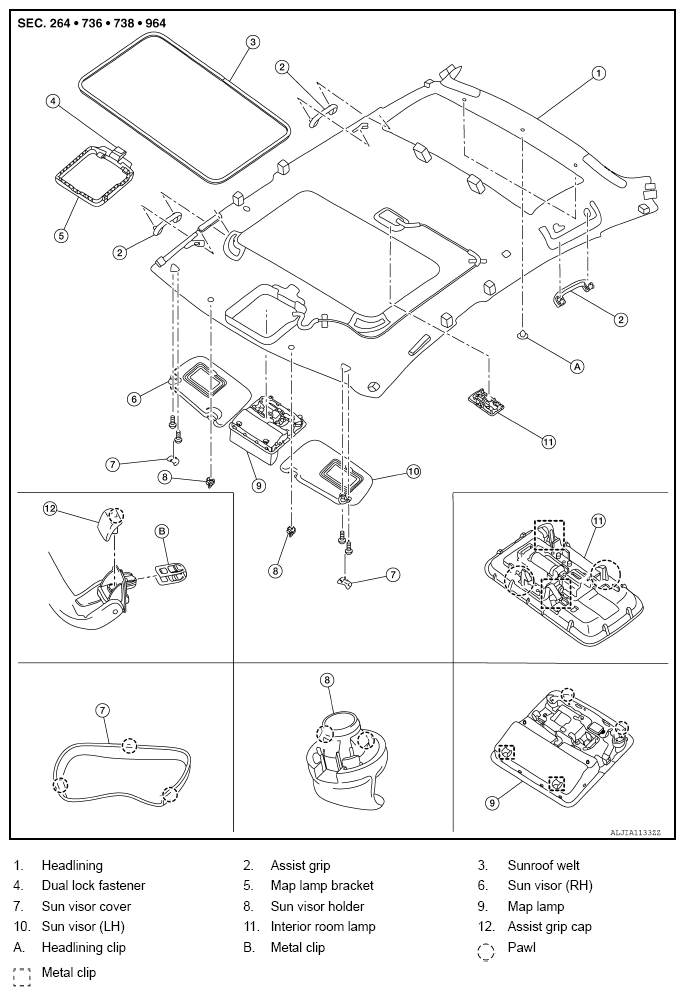

Fig 1: Exploded View Of Headlining (Sunroof)

G09459697

Courtesy of NISSAN NORTH AMERICA, INC.
