Exploded View

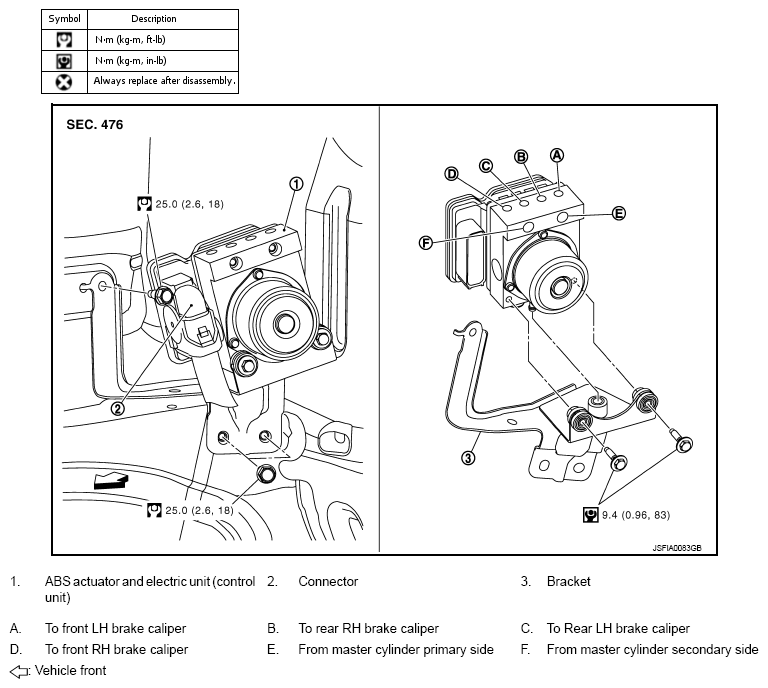

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
G09612020Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbol in the figure.
