Drive Pinion: Disassembly

  1. Remove adapter case. Refer to "DISASSEMBLY ".
  2. Remove ring gear shaft assembly. Refer to "DISASSEMBLY ".
  3. Remove lock nut from the drive pinion.
  4. Put matching marks (A) on screw ends of companion flange (1) and drive pinion.
    CAUTION: Use paint to avoid scratching the surface.
    Fig 1: Identifying Matching Marks On Screw Ends Of Companion Flange And Drive Pinion
    G05370185Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove companion flange from drive pinion with a puller.

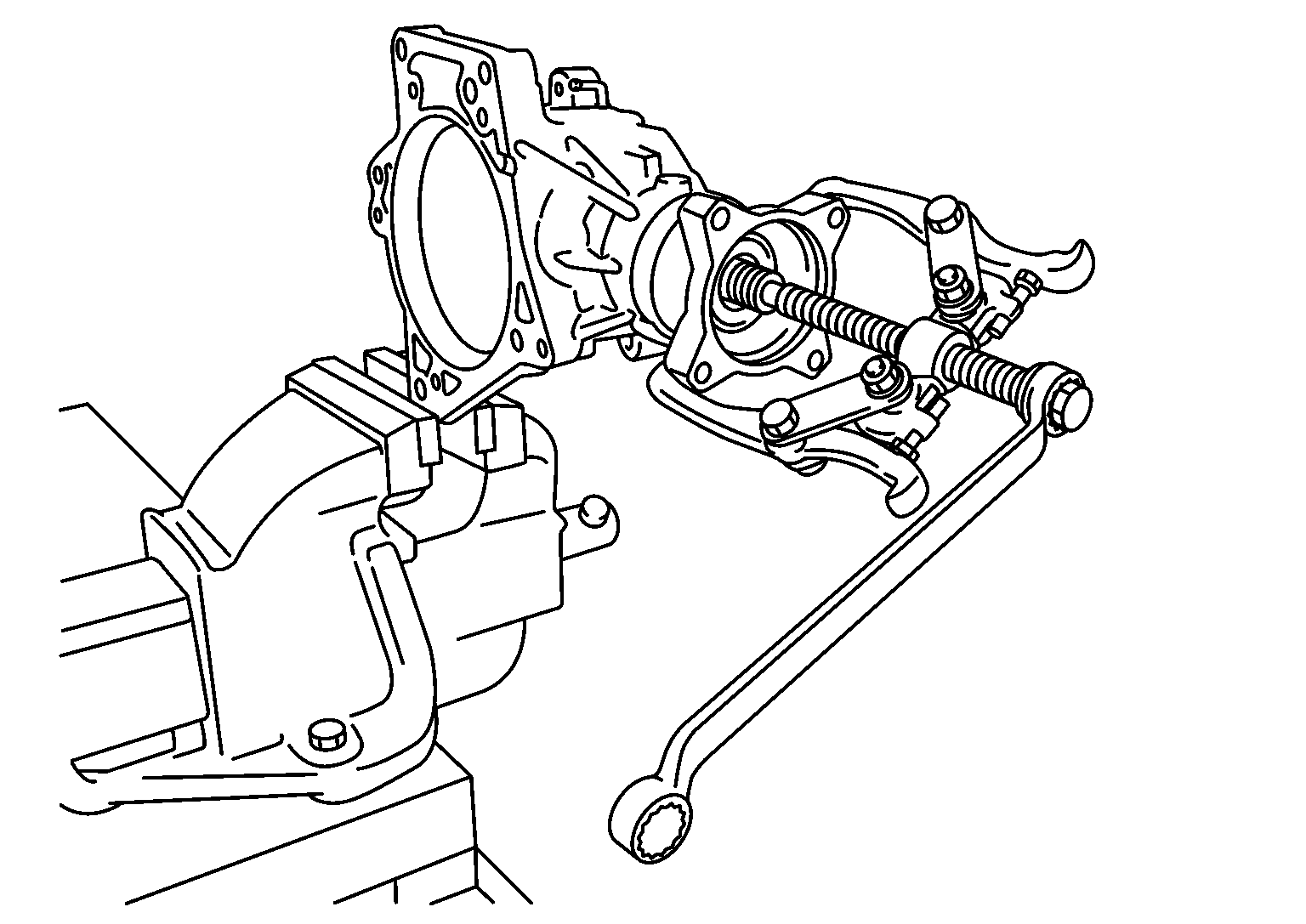

    Fig 2: Removing Companion Flange From Drive Pinion Using Puller
    G05370186Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove drive pinion oil seal from the transfer case with a puller (A) [SST: KV381054S0 (-)].
    CAUTION: Never damage transfer case.

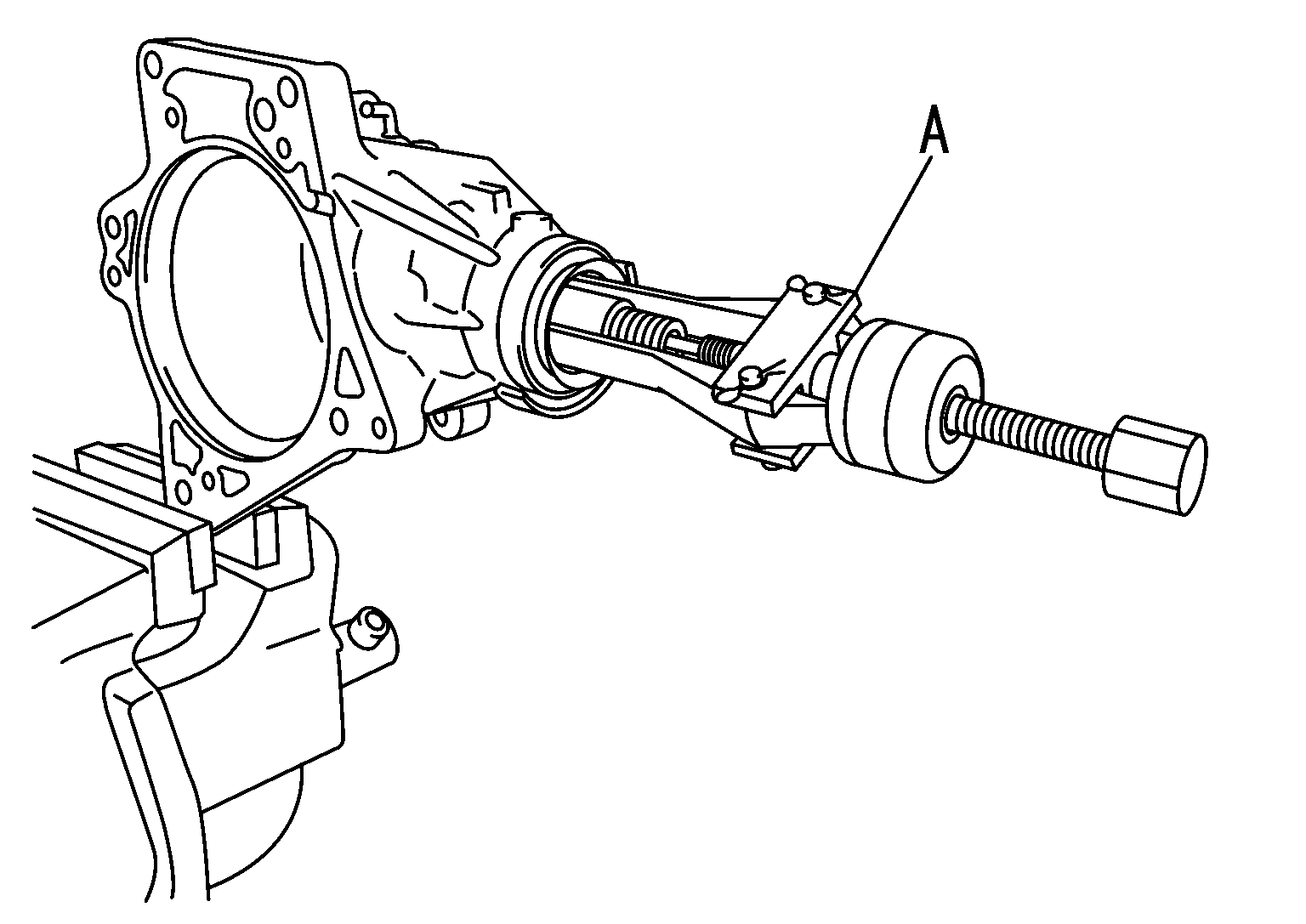

    Fig 3: Removing Drive Pinion Oil Seal From Transfer Case Using Puller
    G05370187Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove drive pinion assembly from transfer case while tapping the drive pinion lightly with a plastic hammer.
    CAUTION: Never drop the drive pinion assembly.

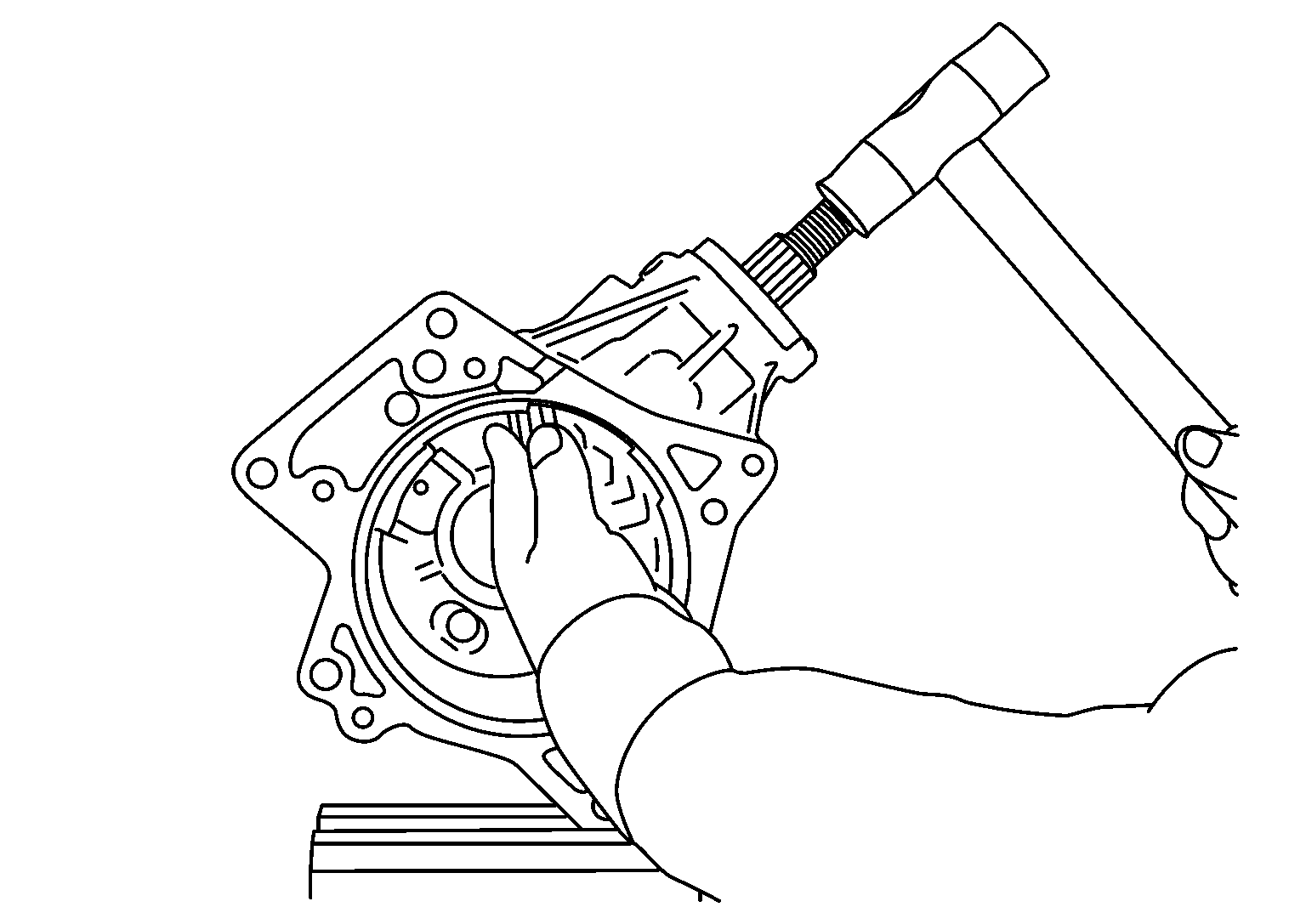

    Fig 4: Removing Drive Pinion Assembly From Transfer Case Using Plastic Hammer
    G05370188Courtesy of NISSAN NORTH AMERICA, INC.
  8. Remove collapsible spacer from the drive pinion.
  9. Remove inner race of drive pinion bearing (rear side) from transfer case.
  10. Remove inner race of drive pinion bearing (front side) from drive pinion with a drift (A) and replacer (B).
    Fig 5: Removing Inner Race Of Drive Pinion Bearing (Front Side) Using Drift And Replacer
    G09611507Courtesy of NISSAN NORTH AMERICA, INC.
  11. Remove drive pinion adjusting shim from the drive pinion.
